      264x176, 2.7inch E-Ink display HAT for Raspberry Pi, three-color, SPI interface

      Overview

      This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

      Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

      Features

      • No backlight, keeps displaying last content for a long time even when power down
      • Ultra low power consumption, basically power is only required for refreshing
      • Compatible with Raspberry Pi 2B/3B/Zero/Zero W
      • Onboard 4x Keys
      • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
      • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

      Specifications

      • Operating voltage: 3.3V
      • Interface: 3-wire SPI, 4-wire SPI
      • Outline dimension: 85mm × 56mm
      • Display size: 57.288mm × 38.192mm
      • Dot pitch: 0.217 × 0.217
      • Resolution: 264 × 176
      • Display color: red, black, white
      • Grey level: 2
      • Full refresh time: 15s
      • Refresh power: 26.4mW(typ.)
      • Standby power: <0.017mW
      • Viewing angle: >170°

      Interface

      SYMBOLDESCRIPTION
      VCC 3.3V
      GND Ground
      DIN SPI MOSI pin
      CLK SPI SCK pin
      CS SPI chip selection, low active
      DC Data/Command selection (high for data, low for command)
      RST External reset, low active
      BUSY Busy status output, low active

      Dimensions

      2.7inch e-Paper HAT (B) dimensions

      Development Resources

      Wiki : www.waveshare.com/wiki/2.7inch_e-Paper_HAT_(B)

      Selection Guide

      Part NumberColorsGrey LevelResolutionDisplay size (mm)Outline Dimension (mm)Partial Refresh Time (s)Full Refresh Time (s)Interface
      1.54inch e-Paper Module black, white 2 200x200 27.60 × 27.60 48.0 × 33.0 0.3 2 SPI
      1.54inch e-Paper Module (B) red, black, white 2 200x200 27.60 × 27.60 48.0 × 33.0 N/A 8 SPI
      2.13inch e-Paper HAT black, white 2 250x122 48.55 × 23.71 65.0 × 30.2 0.3 2 SPI
      2.13inch e-Paper HAT (B) red, black, white 2 212x104 48.55 × 23.71 65.0 × 30.2 N/A 15 SPI
      2.7inch e-Paper HAT black, white 2 264x176 57.29 × 38.19 85.0 × 56.0 N/A 6 SPI
      2.7inch e-Paper HAT (B) red, black, white 2 264x176 57.29 × 38.19 85.0 × 56.0 N/A 15 SPI
      2.9inch e-Paper Module black, white 2 296x128 66.89 × 29.05 89.5 × 38.0 0.3 2 SPI
      2.9inch e-Paper Module (B) red, black, white 2 296x128 66.89 × 29.05 89.5 × 38.0 N/A 15 SPI
      4.2inch e-Paper Module black, white 2 400x300 84.80 × 63.60 103.0 × 78.5 N/A 4 SPI
      4.2inch e-Paper Module (B) red, black, white 2 400x300 84.80 × 63.60 103.0 × 78.5 N/A 18 SPI
      4.3inch e-Paper UART Module black, white 4 800x600 88.00 × 66.00 118.0 × 75.0 N/A 1.5 UART

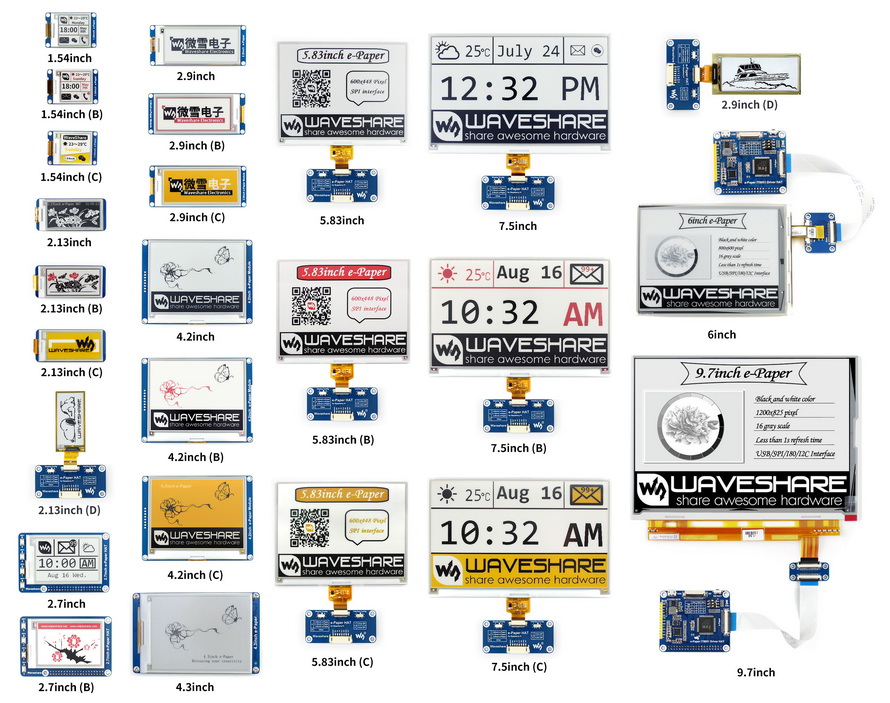

      e-Paper raw panels comparing

      PACKAGE CONTENT

      Weight: 0.036 kg

      1. 2.7inch e-Paper HAT (B) x1
      2. RPi screws pack (2pcs) x2

      Waveshare Electronics
      WS-13357
