      XNUCLEO-F411RE, Improved STM32 NUCLEO Board (WS-10696)

      WS-10696
      23,88 €
      S DPH

      19.90 € bez DPH

      XNUCLEO-F411RE, Improved STM32 NUCLEO Board (WS-10696)
      Množstvo :
      • Bezpečný nákup
      • Rýchle dodanie
      • Pomoc s nákupom
      XNUCLEO-F411RE, Improved STM32 NUCLEO Board (WS-10696)

      STM32 Development Board, Supports Arduino, Compatible With NUCLEO-F411RE

      XNUCLEO-F411RE Features

      • Compatible with NUCLEO-F411RE, onboard Cortex-M4 microcontroller STM32F411RET6
      • Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources
      • ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion
      • Supports mbed, build prototype quickly by mbed SDK and online tools
      • Comprehensive free software HAL library including a variety of software examples
      • Comes with a separated ST-LINK/V2 module

      Advantages

      COMPAREXNUCLEONUCLEOREMARKS
      Arduino compatibility UNO, Leonardo UNO XNUCLEO can be configured by jumper to compatible with UNO (default) or Leonardo
      Arduino ICSP interface Yes None ICSP is required by certain kinds of shields
      USB connectivity Yes None The USB connector of NUCLEO is for debugging ONLY, not available for USB connection
      USB connector Micro USB Mini USB Micro USB is the advanced USB standard
      Morpho headers mark Most None Now you can check the PCB mark instead of datasheet
      Common interfaces are connected via Jumpers 0Ω resistors Jumpers are much easier to use, need no soldering
      UART debugging Available while in-circuit debugging Not available while in-circuit debugging The NUCLEO integrated ST-LINK/V2 functional chip can be simulated as serial port, however, it's not available while in-circuit debugging, whereas XNUCLEO features a stand-alone USB TO UART chip.
      8MHz crystal Yes None Timer is more accurate when using external 8MHz crystal
      32.768KHz crystal Yes None Required for RTC
      USB fuse Yes (500mA) None The computer USB interface might be harmed without fuse
      LEDs 4 1 The more LEDs, the easier to monitor program running status
      UART indicator Yes None Data communication is visible now
      DC input Yes None A convenience
      Button position Close to PCB edge Close to Arduino connector The button won't be untouchable when connecting with an Arduino shield if it were close to the PCB edge
      ST-LINK Separated Integrated ST-LINK can be used anywhere else
      Comes with USB cable Yes None

      What's on the XNUCLEO-F411RE

      XNUCLEO-F411RE STM32 development board on board resource

      1. STM32F411RET6
        • Core : ARM® 32-bit Cortex™-M4
        • Operating frequency : 100MHz
        • Operating voltage : 1.7V-3.6V
        • Package : LQFP64
        • Memories : 512kB Flash, 128kB SRAM
        • Interfaces : 1 x SDIO, 1 x USB 2.0 FS, 5 x SPI or 5 x I2S, 3 x USART, 3 x I2C
        • AD/DA : 1 x AD (12 bit, 16 channels)
      2. SPX3819M5 : 3.3V voltage regulator
      3. AMS1117-5.0 : 5.0V voltage regulator
      4. CP2102 : USB to UART convertor
      5. Arduino connector : for connecting Arduino shields
      6. ICSP interface : Arduino ICSP
      7. USB TO UART : for debugging
      8. USB connector : USB communication interface
      9. SWD interface : for programming and debugging
      10. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
      11. 6-12V DC input
      12. User button
      13. Reset button
      14. Power indicator
      15. User LED
      16. 500mA fast self-recovery fuse
      17. Serial port Rx/Tx indicator
      18. 8MHz crystal
      19. 32.768KHz crystal
      20. ADC/I2C selection jumper
        • short A and B : Arduino A4, A5 is used as I2C
        • short B and C : Arduino A4, A5 is used as ADC
      21. UART selection jumper
      22. MCU current test jumper : for low power tests
      23. Power selection jumper
        • short 5V and U5V : powered from USB connection
        • short 5V and E5V : powered from external power supply
      24. USB enable jumper
        • short the jumper to enable
        • open the jumper to disable
      25. User button jumper
        • short the jumper to connect to I/Os used in example code
        • open the jumper to connect to other custom pins via jumper wires
      26. User LED jumper
        • short the jumper to connect to I/Os used in example code
        • open the jumper to connect to other custom pins via jumper wires

      XNUCLEO-F411RE Expansion Headers

      XNUCLEO-F411RE STM32 development board XNUCLEO-F411RE STM32 development board

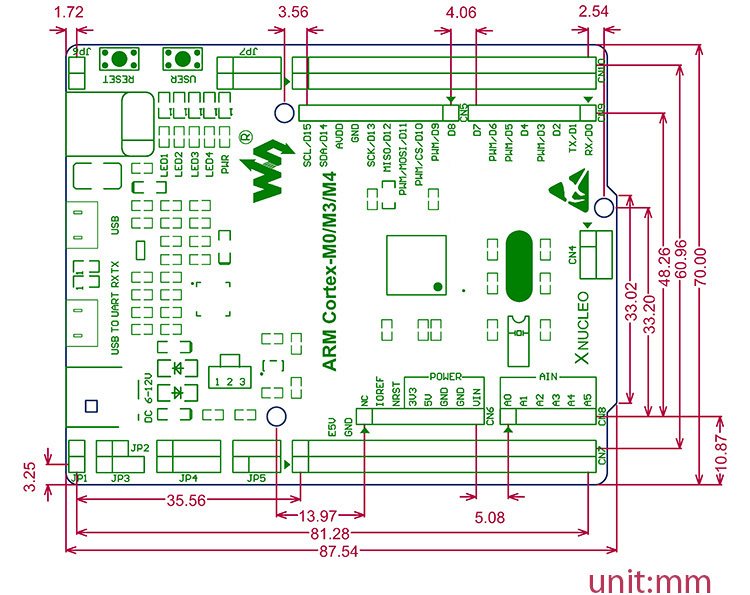

      XNUCLEO-F411RE Dimension

      Development Resources

      Wiki : www.waveshare.com/wiki/XNUCLEO-F411RE


      PACKAGE CONTENT
      1. XNUCLEO-F411RE x 1
      2. ST-LINK/V2 (mini) x 1
      3. USB Type A Plug to Micro B Plug Cable x 1
      4. USB Type A Plug to Receptacle Cable x 1
