11inch High Resolution Display, 1920×1200 10-Point Touch, Optical Bonding Toughened Glass, HDMI, IPS (WS-35045)

11inch High Resolution Display, 1920×1200 10-Point Touch, Optical Bonding Toughened Glass, HDMI, IPS (WS-35045)

Name: 11inch High Resolution Display, 1920×1200 10-Point Touch, Optical Bonding Toughened Glass, HDMI, IPS (WS-35045)
Brand: Waveshare Electronics
SKU: WS-35045
Price: 121.77 EUR
Availability: BackOrder

Reference WS-35045

€121.77

99.00 € tax excl.

Description
Product Details

11inch High Resolution Display, 1920×1200 10-Point Touch, Optical Bonding Toughened Glass, HDMI, IPS (WS-35045)

Part No.: 11EP-CAPLCD (EU)

11inch High Resolution Capacitive Touch Display, 1920×1200 Resolution, 10-Point Touch, Optical Bonding Toughened Glass Panel, HDMI Display Interface, IPS Panel

11" High Resolution Capacitive Touch Display

High Resolution | Multi-Point Touch | Landscape / Portrait rotation

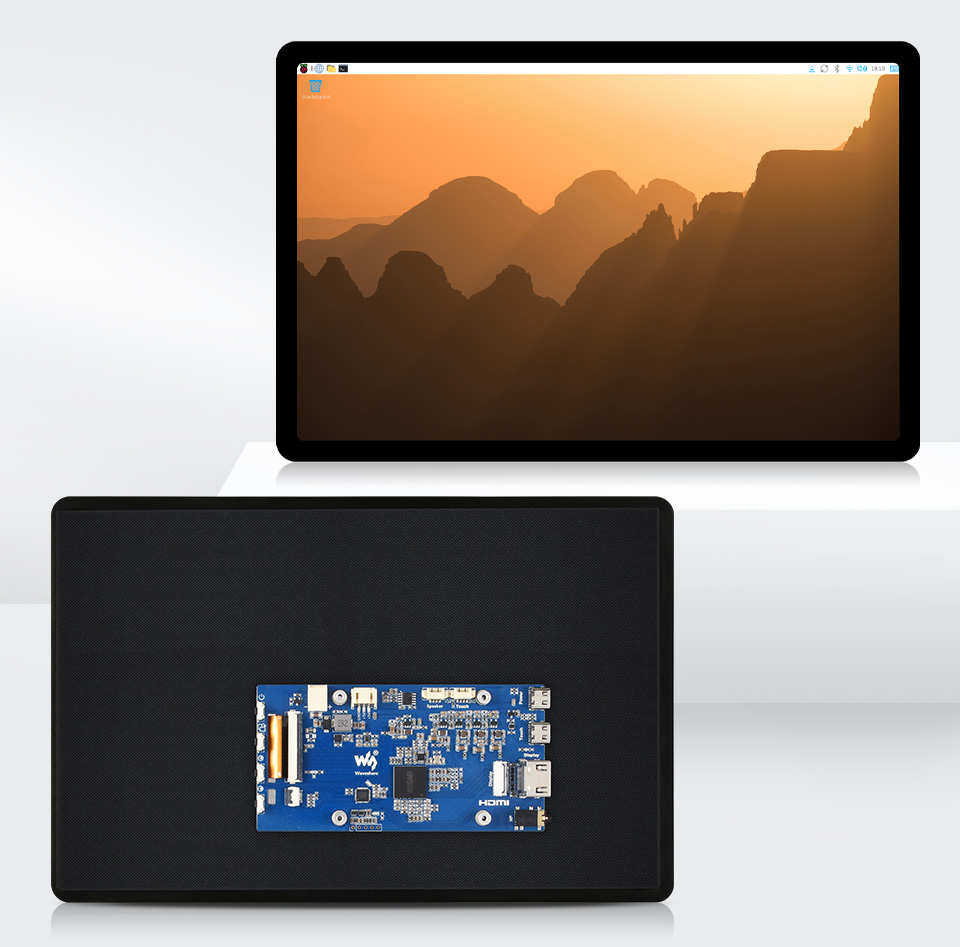

11inch Capacitive Touch Display, front and back view

- Size11″
- Resolution1920 × 1200
- Display InterfaceHDMI
- Display PanelIPS
- Viewing Angle170°

- Touch TypeCapacitive
- Touch Points10-Point
- Touch PortUSB Type-C
- Touch PanelToughened Glass
- Panel CoatingAF

- Touch Panel TechIn-Cell
- Touch Panel TechOptical Bonding
- OSD MenuBrightness Adjustment
- Display OrientationLandscape/Portrait
- Brightness300cd/㎡
- SoundSpeaker Header
- Audio Output3.5mm Jack

Device & System Support

Raspberry Pi

Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / Win10 IoT, single point touch, driver free
Supports Retropie, driver free

Supports all versions of Raspberry Pi

Jetson Series

Supports Ubuntu, single point touch, driver free

Supports Jetson Nano / TX2 / Xavier NX / Orin series boards

Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Connection Examples

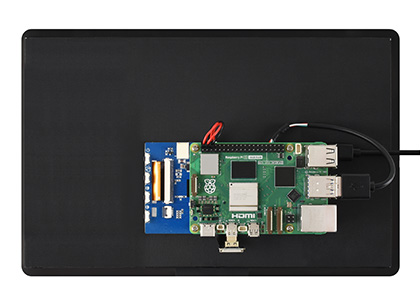

11inch Capacitive Touch Display, connecting with Raspberry Pi 4B

Working with Raspberry Pi 5 / 4B

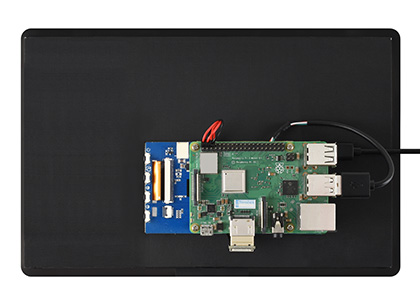

11inch Capacitive Touch Display, connecting with Raspberry Pi 3B+

Working with Raspberry Pi 3B+

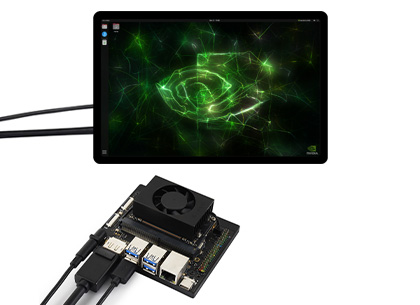

11inch Capacitive Touch Display, connecting with Jeston series boards

Working with Jeston series board
(You need to prepare additional DP-to-HDMI adapter or cable)

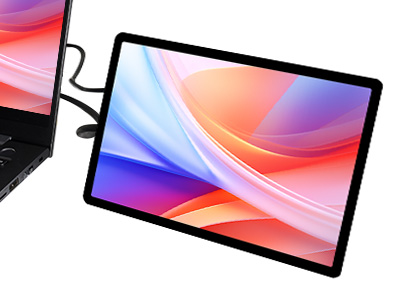

11inch Capacitive Touch Display, connecting with PC

Working with PC

* for reference only, the above controller boards or hosts are NOT included

How to Install

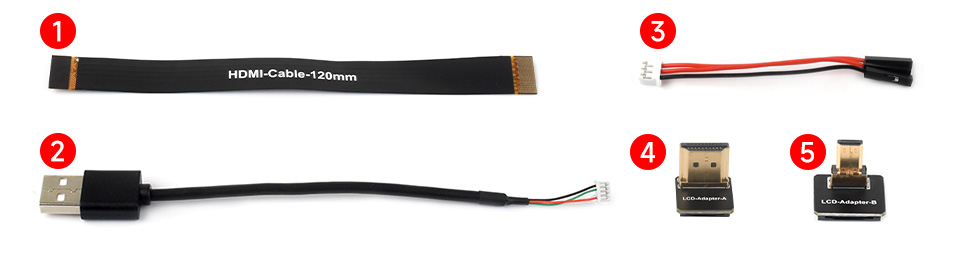

the accessories for installing 11inch Capacitive Touch Display with Raspberry Pi 5

Prepare the accessories as shown above, here we take Raspberry Pi 5 as an example

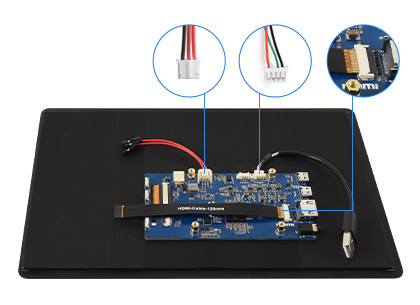

Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 1

Step 1:
Connect the cable ①, ②, and ③ to the corresponding positions as shown in the picture above.

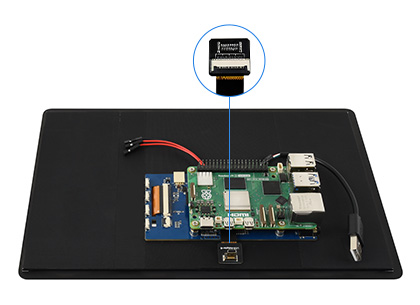

Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 2

Step 2:
Install the Raspberry Pi 5 on the PCB board of the LCD, connect the HDMI adapter to the cable ① (select HDMI adapter ④ or ⑤ according to your Raspberry Pi model) and then connect it to the Micro HDMI port of the Pi.

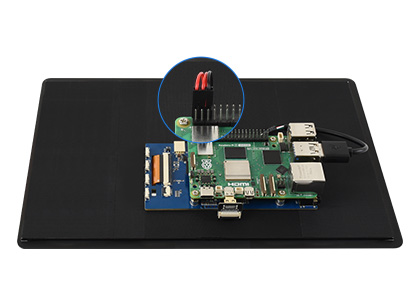

Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 3

Step 3:
Connect the cable ② to the USB port of the Pi and connect the cable ③ to the GPIO 5V and GND pins as shown above.

Install 11inch Capacitive Touch Display with Raspberry Pi 5, step 4

Step 4:
Complete the assembly as shown in the picture and ensure all connections are correct, then connect to a 5V power supply and power on.

* for reference only, the Raspberry Pi 5 is NOT included

Technology upgrade, higher resolution

1920 × 1200 high resolution, provides clear image and vivid color display effect

11inch Capacitive Touch Display, supports higher resolution

IPS Display Panel

Excellent Display Performance With 170° Wide Viewing Angle

Capacitive 10-Point Touch

11inch Capacitive Touch Display, 10-Point capacitive touch

up to 10-point touch, depending on the operating system
up to 7H hardness toughened glass panel
In-Cell integrated touch + optical bonding technology for a thinner, clearer, and more dust-resistant display
Adopts anti-fingerprint panel coating, easy to clean

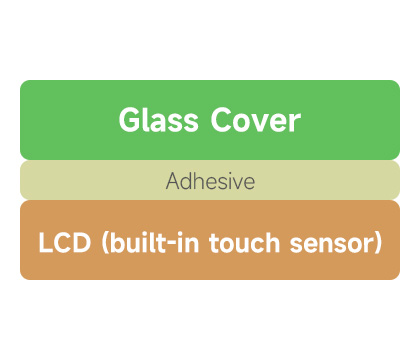

In-Cell Touch Panel Technology

Featuring a simplified structure with Ultra-narrow bezel and Slim thickness,
while offering rapid response.
