CP2102 EVAL BOARD (Waveshare 574) USB, RS232, DB9 Connector
CP2102 Evaluation Development Board, USB, RS232, DB9 Connector
Overview
The CP2102 EVAL BOARD is an evaluation board designed for CP2102, integrates MAX3232/SP3232, USB connector, DB9 connector onboard.
CP2102 features:
- Single-Chip USB to UART Data Transfer
- No external resistors required, no external crystal required
- On-chip power-on reset circuit and voltage regulator
- Integrated 1024-Byte EEPROM
- USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pins
- UART
- All handshaking and modem interface signals
- Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, no parity
- Baud rates: 300 bps to 1 Mbits
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshaking supported
- Event character support
- Virtual COM Port Device Drivers
- Windows 8/7/Vista/Server 2003/XP/2000
- MAC OS-X/OS-9
- Linux 2.40 or higher
- USBXpress Direct Driver Support
- Windows 7/Vista/Server 2003/XP/2000
- Windows CE
- Temperature Range
Features
- Supports Windows 8
- A complete solution for USB TO COM
- Also used as USB TO TTL (disconnect the RXDJMP, TXDJMP, and no RS232 device to be connected)
How to Use
In the case of working with a MCU:
- VCC: 5V output
- GND: connects to GND
- TXD: connects to MCU.RX (signal direction: MCU.RX << CP2102 << PC.TX)
- RXD: connects to MCU.TX (signal direction: MCU.TX >> CP2102 >> PC.RX)
- RTS: connects to MCU.CTS (signal direction: MCU.CTS << CP2102 << PC.RTS)
- CTS: connects to MCU.RTS (signal direction: MCU.RTS >> CP2102 >> PC.CTS)
Note: VCP examples and USBXpress driver program library are provided.

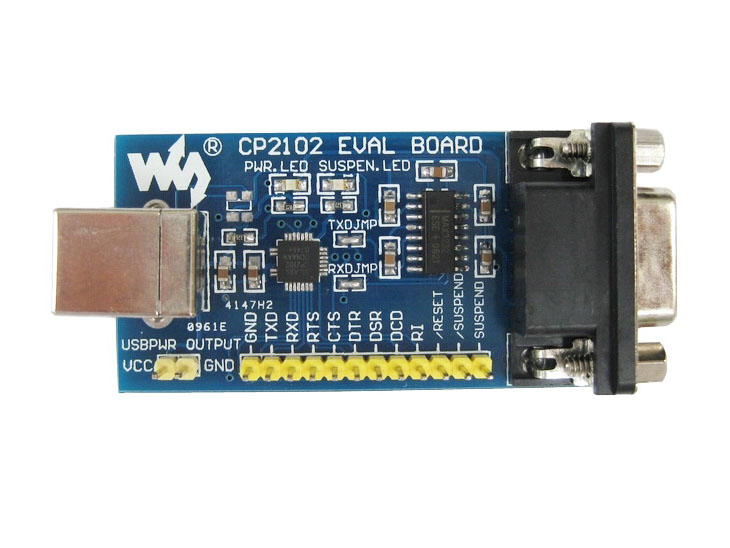

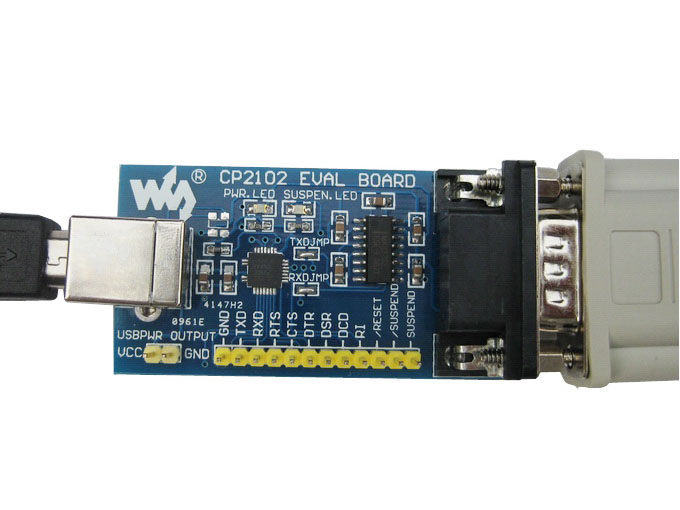

Photos
Downloads
Development resources:user manual, schematic, datasheets, software, etc.
Wiki: www.waveshare.com/wiki/CP2102_EVAL_BOARD
PACKAGE CONTENT :
- CP2102 EVAL BOARD × 1
- USB Cable × 1
- Serial Male to Female Cable × 1
- 4-pin wire x 2
- 2-pin wire x 2
