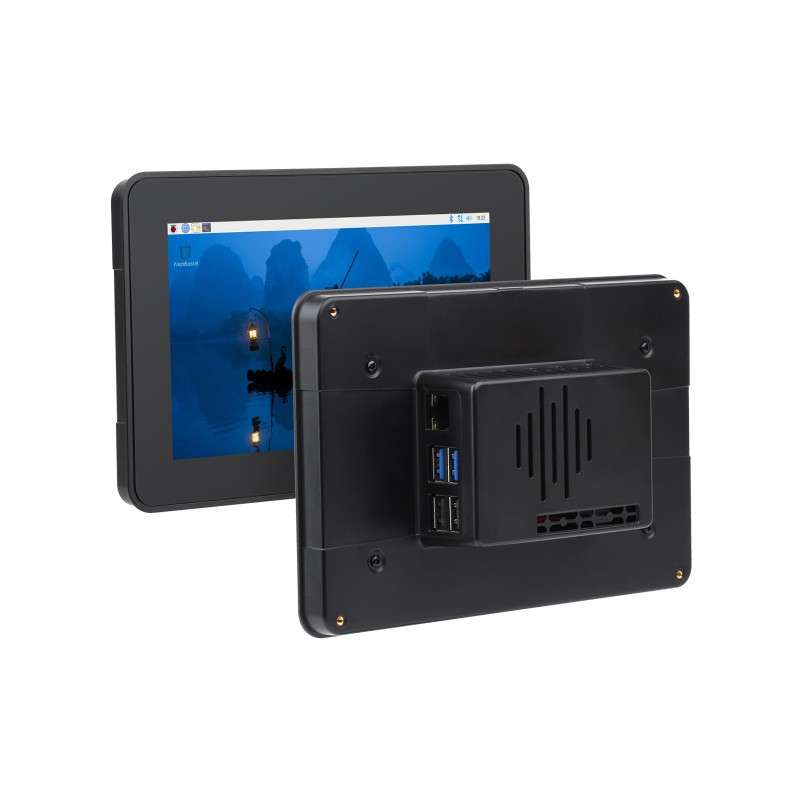

7inch DSI Capacitive Touch Display, 1280×720 IPS, 10-Point Touch, With Case (WS-31619)
WS-31619
73,68 €
59.90 € bez DPH
7inch DSI Capacitive Touch Display, 1280×720 IPS, 10-Point Touch, With Case (WS-31619)
7inch DSI Capacitive Touch Display, 1280×720 IPS, 10-Point Touch, With Case (WS-31619)
- With protective case
- 7inch DSI LCD (H) (with case)
7inch DSI Capacitive Touch Display, 1280×720 Pixels, IPS Panel, Optical Bonding Toughened Glass Panel, 10-Point Touch, Anti-Fingerprint Process, With Case
7″ DSI Capacitive Touch Display
- Size
7″ - Resolution
1280×720 - Display Interface
DSI - Display Panel
IPS - Viewing Angle
170° - Touch Type
Capacitive - Touch Points
10-Point - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding - Panel Coating
AF - Touch Interface
I2C - Brightness
450cd/㎡ - Backplate
All-metal backplate - Enclosure(optional)
ABS
Version Options
7inch DSI LCD (H)
Standard version
7inch DSI LCD (H) (with case)
with protective case (suitable for Raspberry Pi 5 only)
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch
ESP32-P4
Supports LVGL GUI programs, up to 10-point touch
RK3506
Supports Buildroot / Ubuntu, etc. 10-point touch
RK3576
Supports Buildroot / Debian / Ubuntu / Android, etc. 10-point touch
* (the case supports Raspberry Pi 5 only, due to connector layout)
connection examples
Working with Raspberry Pi 5
Please connect the FPC cable as shown above, and power the LCD through the GPIO 5V pin
with protective case (suitable for Raspberry Pi 5 only)
Working with Raspberry Pi 4B
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
Working with ESP32-P4-NANO
Working with Luckfox Lyra
Working with Luckfox Omni3576
* for reference only, the above controller boards or hosts are NOT included
IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, provides clear image, dustproof
- Adopts anti-fingerprint panel coating, easy to clean
Supports backlight adjustment via software
Thinner and more space-saving
Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 9.3mm
interface definition
with protective case
How to install
First, fix the silicone button cap inside the case as picture below, and then use the PM2.5 * 4mm black metal screws to secure the case and screen
* for reference only, the Raspberry Pi is NOT included
outline dimensions
Standard version
the protective case
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 10 years.
Balenie Obsahuje / Package Content
7inch DSI LCD (H) (with case)
- 7inch DSI LCD (H) x1
- PI5-CASE-TD2 x1
- MIPI-DSI-Cable-12cm x1
- MX 1.25 2PIN to 2.54 3PIN cable x1
- FFC 22PIN cable ~200mm (opposite sides) x2
- Silicon button cap × 1
- Standoffs x1
- Screws pack x1
WS-31619
