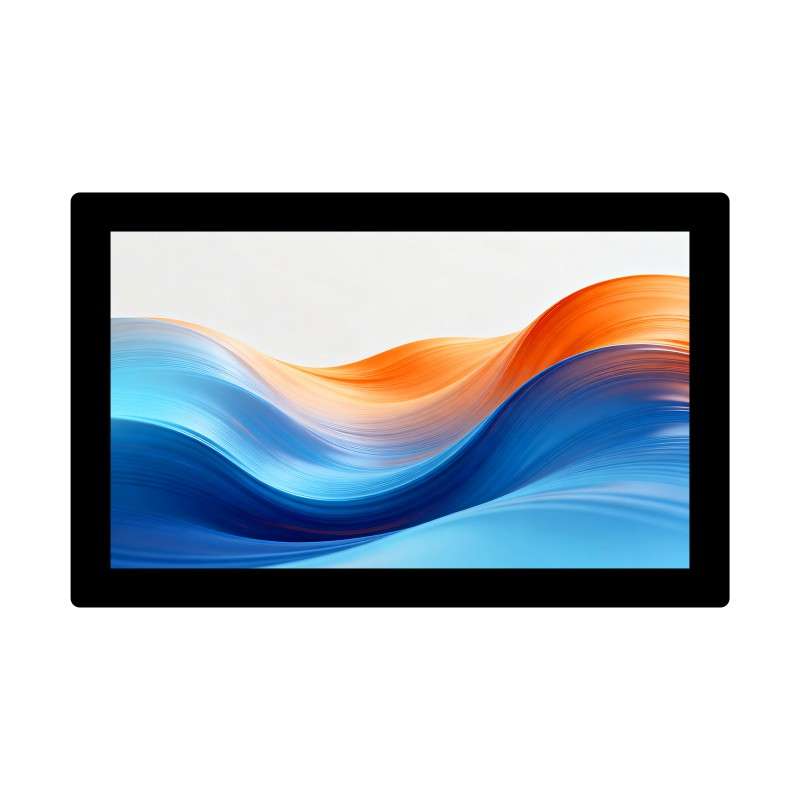

9inch DSI Capacitive Touch Display, Wide Color Gamut, 720×1280, IPS Panel, 10-Point Touch (WS-32772)
WS-32772
72,57 €
59.00 € bez DPH
9inch DSI Capacitive Touch Display, Wide Color Gamut, 720×1280, IPS Panel, 10-Point Touch (WS-32772)
9inch DSI Capacitive Touch Display, Wide Color Gamut, 720×1280, IPS Panel, 10-Point Touch (WS-32772)
9inch DSI Capacitive Touch Display, Wide Color Gamut, 720 × 1280, IPS Panel, Supports 10-Point Touch, Toughened Glass Panel
9″ Wide Color Gamut DSI Touch Display
- Size
9″ - Resolution
720 × 1280 - Display Interface
DSI - Display Panel
IPS - Viewing Angle
160°
- Size
- Touch Type
Capacitive - Touch Points
10-Point - Touch Panel
Toughened Glass - Touch Port
I2C - Brightness
500cd/㎡
The display orientation is portrait by default, with 720 × 1280 resolution (H×V). Change the software config for landscape display.
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch
RK3576
Supports Buildroot / Debian / Ubuntu / Android and other systems, 10-point touch
RK3506
Supports Buildroot / Ubuntu and other systems, 10-point touch
ESP32-P4
Supports LVGL GUI programs, 10-point touch
connection examples
Connecting to Raspberry Pi 5
* Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin
Connecting to Raspberry Pi 4B
* Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
Connecting to ESP32-P4-NANO
Connecting to Luckfox Omni3576
Connecting to Luckfox Lyra
* for reference only, the above controller boards or hosts are NOT included
IPS Display Panel
Excellent Display Performance With 160° Wide Viewing Angle
Wide Color Gamut LED technology
Wider Color Gamut, More Pure Chroma
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
interface definition
Supports backlight adjustment via software
outline dimensions
Support touch screen customization
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 14 years.
Balenie Obsahuje / Package Content
- 9-DSI-TOUCH-B ×1
- MIPI-DSI-Cable-12cm x1
- MX 1.25 2PIN to 2.54 3PIN cable x1
- FFC 22PIN cable ~200mm (opposite sides) x2
- MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
- Screws pack x1
