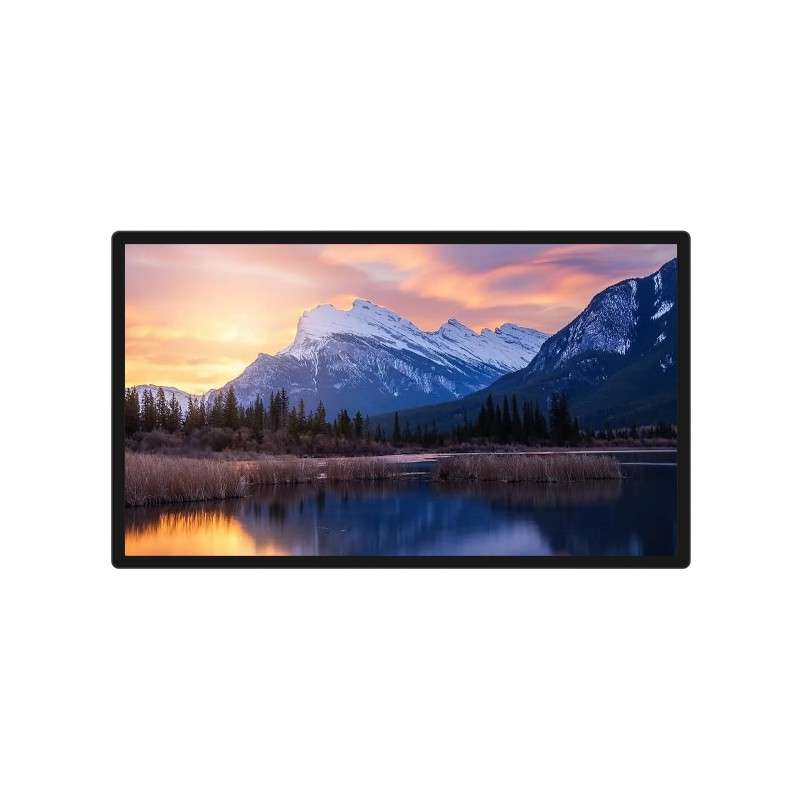

23.8inch Capacitive Touch Monitor, 1920×1080 Full HD, Optical Bonding Toughened Glass, HDMI Display (WS-34080)
WS-34080
392,37 €
319.00 € bez DPH
23.8inch Capacitive Touch Monitor, 1920×1080 Full HD, Optical Bonding Toughened Glass, HDMI Display (WS-34080)
23.8inch Capacitive Touch Monitor, 1920×1080 Full HD, Optical Bonding Toughened Glass, HDMI Display (WS-34080)
Part No.:23.8inch FHD Monitor (EU)
23.8inch Capacitive Touch Monitor, 1920×1080 Full HD, Optical Bonding Toughened Glass Panel, HDMI display interface, 10-Point touch
23.8/27inch Capacitive Touch Monitor
High Resolution | Multi-touch | Full Color
- Size
23.8/27″ - Resolution
1920 × 1080 - Display Interface
HDMI - Display Color
16.7M - Viewing Angle
178°
- Size
- Touch Type
Capacitive - Touch Port
Type-C - Touch Points
10-Point - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding
- Touch Type
- Temperature Range
0℃ ~ 60℃ - OSD Menu
Brightness/Contrast - Sound
Hi-Fi Speaker - Enclosure
Aluminum Alloy - VESA Wall Mount
100 × 100 (mm)
- Temperature Range
Version Options
23.8inch FHD Monitor
27inch FHD Monitor
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
* the mounting holes inside the case are only compatible with Raspberry Pi 4B and Raspberry Pi 5
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
* the mounting holes inside the case are only compatible with Raspberry Pi 4B and Raspberry Pi 5
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free
Connection Examples
Working with Raspberry Pi 5
Working with Raspberry Pi 4
Working with Raspberry Pi CM5 / CM4
*for using with CM5 / CM4, an extra adapter board is required: CM5-to-Pi5-Adapter, CM4-to-Pi4-Adapter
Working with Jetson Orin
Working with mini PC
*for reference only, the above controller boards or hosts are NOT included
Configurable Display Orientation
1920 × 1080 resolution (H × V),
Change the software config for portrait display
Wide viewing angle IPS display panel
Excellent Display Performance, Wide viewing angle up to 178°
Supports FHD resolution
1920 × 1080 resolution, clearer display
Capacitive 10-point touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and dustproof
Dual-track Speaker
Ferrite Hi-Fi Speaker, Stereo Sound Effect, Wider Sound Range, Better Sound Quality
*for reference only, the Raspberry Pi is NOT included
Reserved airflow vents
All-In-One Design
The Raspberry Pi Can Be Installed Inside To Make It As An All-In-One Mini-Computer
*for reference only, the Raspberry Pi is NOT included
Installation Methods
Supports multiple mounting options to meet the requirements of different application scenarios
Flush Mount
Wall Mount
Desktop Mount
Suspended Mount
* for reference only, the mounting bracket is NOT included, please choose the mounting method according to your needs
Interface Introduction
Application Scenarios
Suitable for commercial displays, smart device control, and human-machine interaction
Commercial Display
Smart Guide
Smart Home Terminal
IoT
DIY Device
AI Interactive Display
Product show
outline dimensions
23.8inch FHD Monitor
27inch FHD Monitor
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 15 years.
Resources & Services
Balenie Obsahuje / Package Content
23.8inch FHD Monitor
- 23.8inch FHD Monitor x1
- OPTIONS 12V 5A Power supply x1
- USB Type-A male port to Type-C male port cable ~15cm x1
- USB Type-A male port to Type-C male port cable ~1m x1
- HDMI flat cable ~1m x1
- Cleaning cloth x1
- Screws pack x1
