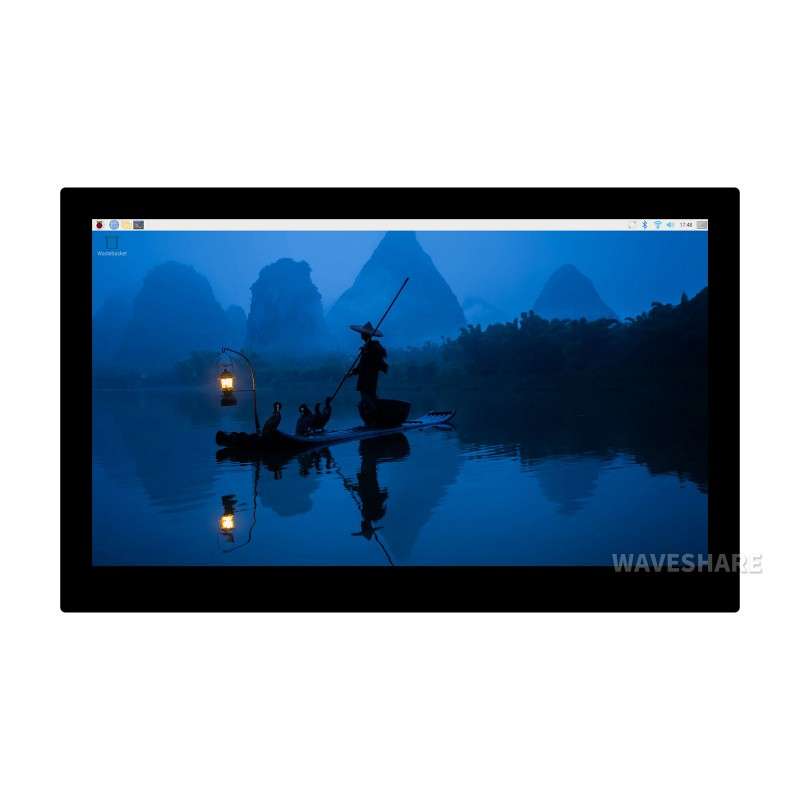

13.3inch High Resolution DSI Capacitive Touch Display, 1920×1080, IPS, Toughened Glass Panel, DSI Touch (WS-34818)
WS-34818
178,35 €
145.00 € bez DPH
13.3inch High Resolution DSI Capacitive Touch Display, 1920×1080, IPS, Toughened Glass Panel, DSI Touch (WS-34818)
13.3inch High Resolution DSI Capacitive Touch Display, 1920×1080, IPS, Toughened Glass Panel, DSI Touch (WS-34818)
- Part No.: 13.3inch DSI LCD (B)
- Without back panel
13.3inch High Resolution DSI Capacitive Touch Display, 1920 × 1080, IPS, Toughened Glass Panel, DSI Interface, 10-Point Touch, optional for full metal back panel
13.3″ DSI Capacitive Touch Display
1920 × 1080 High Resolution | Multi-touch | Full Color
- Size
13.3″ - Resolution
1920×1080 - Display Interface
DSI - Display Panel
IPS - Viewing Angle
178° - Touch Type
Capacitive - Touch Points
10-Point - Touch Interface
I2C - Touch Panel
Toughened Glass - Enclosure (optional)
Full Metal Back Panel
- Size
Version Options
13.3inch DSI LCD
with full metal back panel
13.3inch DSI LCD (B)
without back panel
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 10-point touch, driver-free for new Raspberry Pi OS
Connection Examples
Working with Raspberry Pi 5
13.3inch DSI LCD with full metal back panel
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
13.3inch DSI LCD without back panel
Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin
Working with Raspberry Pi 4B
13.3inch DSI LCD with full metal back panel
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
13.3inch DSI LCD without back panel
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
Working with Compute Module 4 IO Board
13.3inch DSI LCD with full metal back panel
Please connect the DSI cable as shown above, and power the LCD through the GPIO 5V pin
13.3inch DSI LCD without back panel
Please connect the FFC cable as shown above, and power the LCD through the GPIO 5V pin
for reference only, the Raspberry Pi boards are NOT included.
Technology upgrade, Better image quality
1920 × 1080 resolution, provides clear image and vivid color display effect
IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
Adjustable Brightness Via Software
Supports automatically showing or hiding the virtual keyboard
Interface Introduction
13.3inch DSI LCD with full metal back panel
13.3inch DSI LCD without back panel
Dimensions
13.3inch DSI LCD with full metal back panel
13.3inch DSI LCD without back panel
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 15 years.
Balenie Obsahuje / Package Content
13.3inch DSI LCD (B)
- 13.3inch DSI LCD (B) x1
- 22PIN FFC cable 220mm (opposite) x2
- DSI-Cable-12cm-B x1
- 3PIN PH2.0 cable 100mm x1
- Screws pack x1
WS-34818
