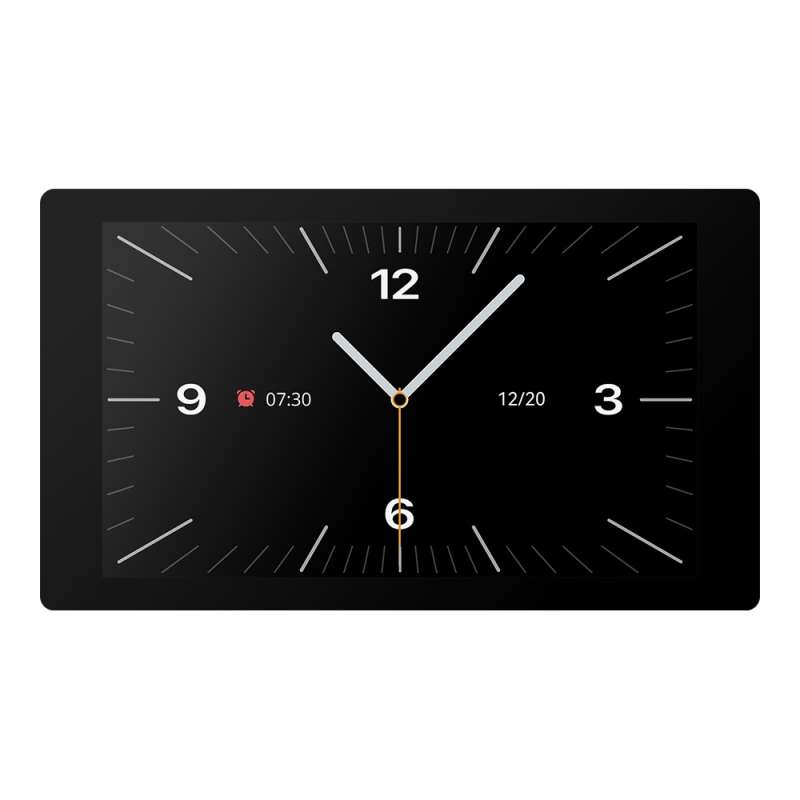

4.3″ 480x800 NEXTION INTELLIGENT HMI DISPLAY (NX4880E043-011C)

Nextion je riešenie rozhrania človek-stroj (HMI), ktoré kombinuje integrovaný procesor a pamäťový dotykový displej so softvérom Nextion Editor pre vývoj projektov HMI GUI. Pomocou softvéru NEXTION Editor môžete rýchlo vyvinúť HMI GUI pomocou komponentov drag-and-drop (grafika, text, tlačidlo, posúvač atď.) a inštrukcií založených na texte ASCII pre kódovanie interakcie komponentov na strane displeja. Displej Nextion HMI sa pripája k periférnemu MCU prostredníctvom sériového rozhrania TTL (5 V, TX, RX, GND), aby poskytoval oznámenia o udalostiach, na ktoré môže periférny MCU reagovať. Periférny MCU môže jednoducho aktualizovať priebeh a stav späť na displej Nextion pomocou jednoduchých textových inštrukcií ASCII. V porovnaní s inými sériami sú produkty série Edge ľahšie inštalovateľné a majú elegantnejší a tenší dizajn. Funkcie prehrávania zvuku, videa a animácií obohacujú interakciu používateľa s projektom HMI. Séria Edge podporuje pokročilé softvérové vlastnosti a funkcie, ako sú priehľadné komponenty, efekt načítania stránky, presúvanie a ťahanie komponentov atď.

Balenie obsahuje:

• displej Nextion NX4880E043-011C HMI
• 4-pinový kábel
• testovaciu dosku napájania

Nextion is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text-based instructions for coding how components interact at the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that the peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions.
Compared with other series, the Edge Series products are easier to install and feature a sleeker, slimmer design. The audio, video and animation play functions enrich the user’s project HMI interaction. The Edge Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

Package include: Nextion NX4880E043-011C HMI Display*1, 4Pin wire*1, power supply test board*1.

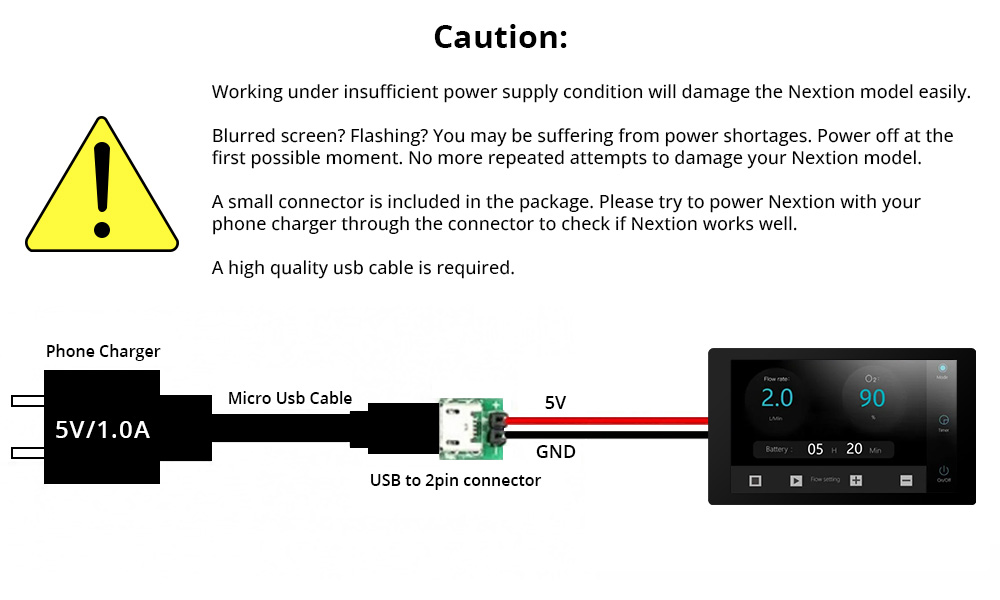

Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

Nextion Models

Nextion Type	Basic Series
Nextion Models	NX4880E043-011C

Specifications

	Data	Description
Color	65K 65536 colors	16 bit 565, 5R-6G-5B
Layout size	114.40mm(L)× 66.80mm(W)×5.06mm(H)	NX4880E043-011C
Active Area (A.A.)	93.60mm(L)×56.16mm(W)
Resolution	480×800 pixel
Touch type	Capacitive
Backlight	LED
Backlight lifetime (Average)	>30,000 Hours
Brightness	300nit	0% to 100%, the interval of adjustment is 1%
Weight	59g

Electronic Characteristics

	Test Conditions	Min	Typical	Max	Unit
Operating Voltage		4.65	5.0	6.5	V
Operating Current	VCC=+5V, Brightness is 100%	–	300	–	mA
	Normal SLEEP Mode (lowpower=0)	–	101	–	mA
	Deep SLEEP Mode (lowpower=1)	–	–	–	mA
Power supply recommend：5V, 1A, DC.

Working Environment & Reliability Parameter

	Test Conditions	Min	Typical	Max	Unit
Working Temperature	5V, Humidity 60%	-20	–	70	°C
Storage Temperature		-30	–	80	°C
Working Humidity	25°C	10%	–	90%	RH

Interfaces Performance

	Test Conditions	Min	Typical	Max	Unit
Serial Port Baudrate	Standard	2400	9600	921600	bps
Output High Voltage	IOH=-1mA	3.0	3.2		V
Output Low Voltage	IOL=1mA		0.1	0.2	V
Input High Voltage		2.0	3.3	5.0	V
Input Low Voltage		-0.7	0.0	1.3	V
Serial Port Mode	TTL 3.3V
Serial Port	4Pin_2.54mm
USB interface	NO
SD card socket	Yes (FAT32 format), support maximum 32G Micro SD Card * microSD card socket is exclusively used to upgrade Nextion firmware /HMI design
Extended IO	8 Digital extended GPIO (FPC 1.0*10)
	IO0-IO7 support input, output and component binding event (3.3V) * IO pin / ports are not exclusive, limit current draw to 1mA recommended
	IO4-IO7 support PWM
RTC	built-in RTC support (Battery Type: CR1220)

Memory Features

Memory Type	Test Conditions	Min	Typical	Max	Unit
FLASH Memory	Store fonts and images			120	MB
User Storage	EEPROM			1024	BYTE
RAM Memory	Store variables			512	KB
Instruction Buffer				4096	BYTE

Audio Features

Speaker	Parameter	Min	Typical	Max	Unit
Power	–	–	–	2	W
Audio Connector Type：1.25T-2-2A (1.25mm pitch 2-pin housing)

* NX4880E043-011C do not have speaker in the package.

Product Dimensions

E Series_4.3”_Nextion_Dimension

Product Certificates

CE Certificate, RoHS
