Grove - IMU 9DOF (Seeed 101020059 (old 811003001)) 9-axis motion tracking module MPU-9150
      Grove - IMU 9DOF (Seeed 101020059 (old 811003001)) 9-axis motion tracking module MPU-9150

      Grove - IMU 9DOF (Seeed 101020059 (old 811003001)) 9-axis motion tracking module MPU-9150

      Seeed 101020059 (MPU9150)
      33,48 €

      27.90 € bez DPH

      Grove - IMU 9DOF (Seeed 101020059 (old 811003001)) 9-axis motion tracking module MPU-9150

      Množstvo:
      OUT OF STOCK

      Grove - IMU 9DOF (Seeed 101020059 (old 811003001)) 9-axis motion tracking module MPU-9150

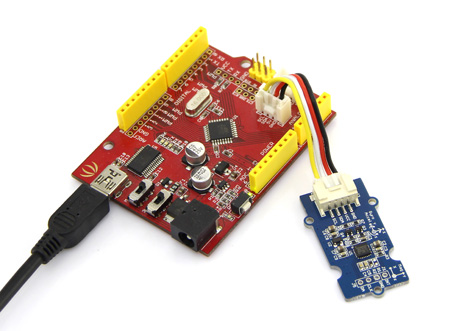

      Grove - IMU 9DOF is a high performance 9-axis motion tracking module,which is base on MPU-9150.The MPU-9150 is the world's first integrated 9-axis motion tracking device designed for the low power, low cost, and high performance requirements of consumer electronics equipment including smartphones, tablets and wearable sensors .MPU-9150 features three 16-bit ADC for digitizing the gyroscope outputs and three 16-bit ADCs for digitizing the accelerometer outputs and three 13-bit ADCs for digitizing the magnetometer outputs.

      Specification:
      • I2C interface
      • Low cost
      • 400kHz Fast Mode I2C for communicating with all registers
      • Digital-output X-, Y-, and Z-Axis angular rate sensors (gyroscopes) with a user-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec
      • Digital-output 3-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
      • 3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator



      Application


      Part List:


      Documents
      Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.
      Seeed Studio
      Seeed 101020059 (MPU9150)
