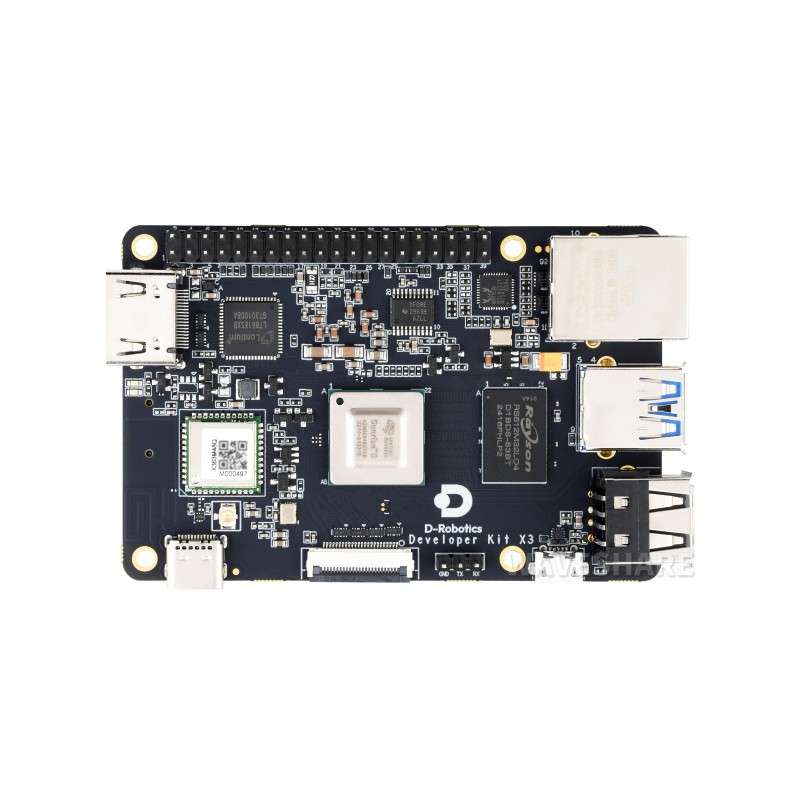

D-Robotics RDK X3 Development Board, Quad-core ARM Cortex-A53 Processer, 5Tops Edge Inference 4GB RAM (WS-29472)
WS-29472
104,55 €
85.00 € bez DPH
D-Robotics RDK X3 Development Board, Quad-core ARM Cortex-A53 Processer, 5Tops Edge Inference 4GB RAM (WS-29472)
D-Robotics RDK X3 Development Board, Quad-core ARM Cortex-A53 Processer, 5Tops Edge Inference 4GB RAM (WS-29472)
- RAM : 4GB
- Version Optionsthe : Basic Kit
D-Robotics RDK X3 Development Board, Quad-core ARM Cortex-A53 Processer, 5Tops Edge Inference Capabilities, 4GB RAM
RDK X3 Development Board
The RDK X3 series encompasses the RDK X3 and RDK X3 Module, delivering exceptional 5Tops edge inference capabilities. Their standardized dimensions and interfaces seamlessly integrate with generic products, empowering developers to rapidly deploy intelligent products and robotic solutions.
Kit Options
RDK X3 Basic Kit
This kit includes RDK X3 (options for 2GB/4GB RAM), with accessories pack including Acrylic board, UART module, heatsink, 4PIN cable, and screws pack.
Specifications
| CPU | Quad-core ARM® Cortex® A53@1.5G |
|---|---|
| BPU | Dual-core Bernoulli Arch, 5Tops |
| RAM | 2GB/4GB LPDDR4 RAM |
| Storage | TF card slot |
| Multimedia | H.265 (HEVC) Encoding and Decoding Main profile, L5.14K@60fps, JPEG Encoding and Decoding 16Mpixels |
| Sensor | MIPI CSI 2lane x 2 |
| USB Host | USB Type-A 3.0 x 1, USB Type-A 2.0 x 2 |
| USB Device | Mirco USB 2.0 x 1 |
| Display | 1 x HDMI1.4 (up to 1080p60) |
| Wired network | RJ45 Gigabit Ethernet port |
| Wireless network | Wi-Fi 2.4/5GHz with 802.11 b/g/n support, Bluetooth 4.2 |
| Others | 40PIN GPIO × 1 (PCM signal aligned to Raspberry Pi); Debug UART x 1 |
| Power input | USB Type-C port, 5V 3A |
| System support | Ubuntu 20.04/22.04 |
| Dimensions | 85 × 56 × 20 (mm) |
| Operating Temperature | -25°C ~ 95 °C |
| Certifications | CE, MIC, SRRC |
What's On Board
100+ Robot development kits to help accelerate product assembly
We provide a variety of development kits, ranging from various sensors to multiple controller modules, and diverse forms of robots (drones, unmanned vehicles, wheeled robots, robotic arms, etc.), to help expedite the implementation of your robot solutions.
100+ open-source algorithms and applications to accelerate comprehensive development
A selection of applications from various categories within NodeHub, ranging from sensor configuration to robot application development are available. Everything you need is here, so feel free to explore and use them.
Traffic Light Detection
Visual-inertial Odometry
Humanoid Robotic Soccer Control
Toy Car Line-following Control
Deep Learning Line-following Car
RDK Platform Architecture
RDK Platform encompasses a diverse range of hardware, software, algorithms, solutions, and development tools
NodeHub: Robot Application Center
Making Robotics Development as Simple as Building with Blocks
Outline dimensions
Certificate of Authorization
Waveshare is the official distributor of D-Robotics RDK series and related products
Balenie Obsahuje / Package Content
RDK X3 Basic Kit
- RDK X3 x1
- Acrylic board ×1
- UART module x1
- 4PIN cable ×1
- Heatsink ×1
- Screws pack ×1
