    Luckfox Core1106 Smart 86 Box Development Board, RV1106G2 Processor, 0.5TOPS, 128MB DDR3L, ARM Cortex-A7 32-bit Core, Onboard 4inch 720 × 720 Pixel Touch Display, RS485 Interface, Wireless Module

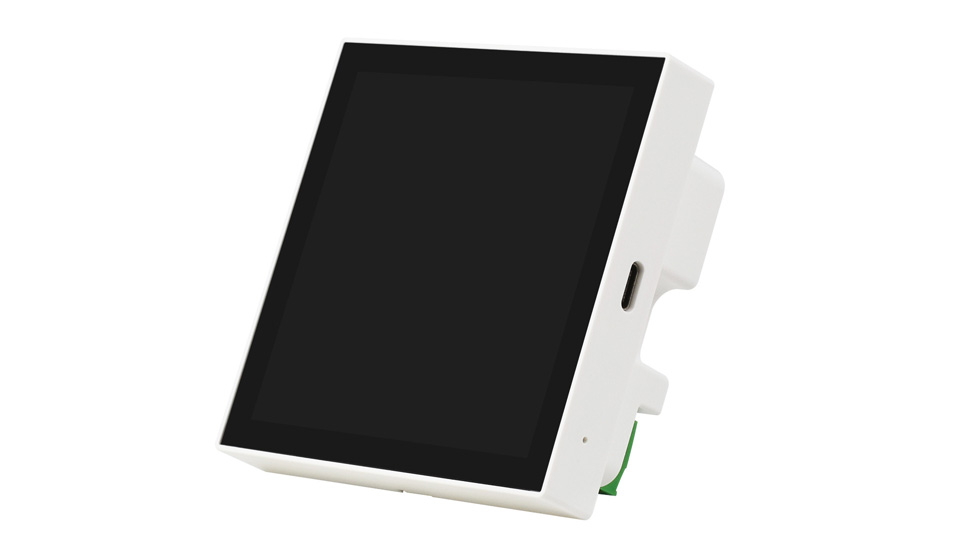

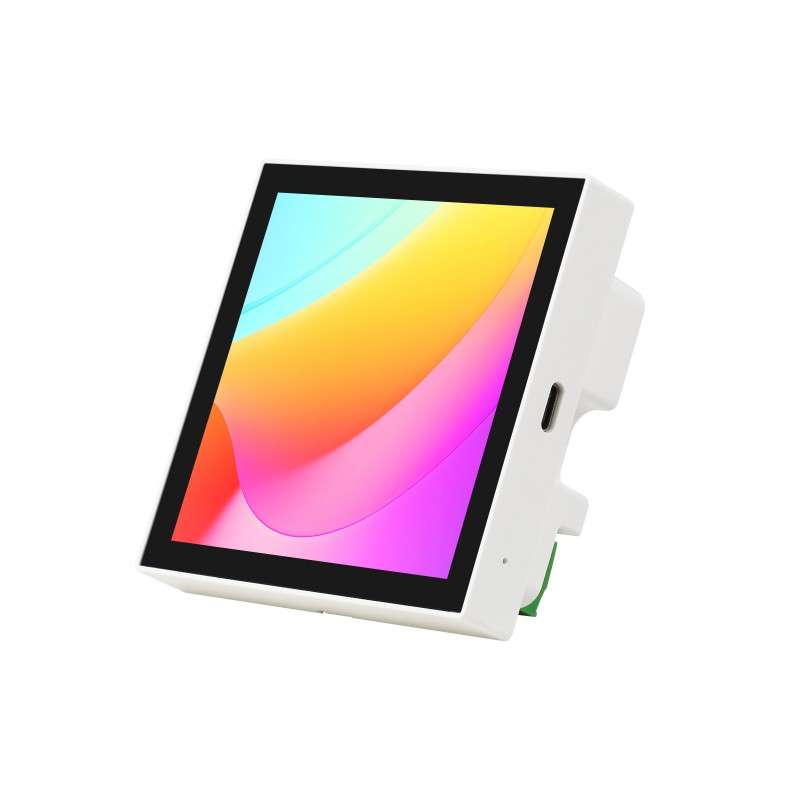

    Luckfox Core1106 Smart 86 Box

    Based on Luckfox Core1106 series module, supports secondary development

    Enable Smart Living & Industrial IoT For Scenario-Based Control

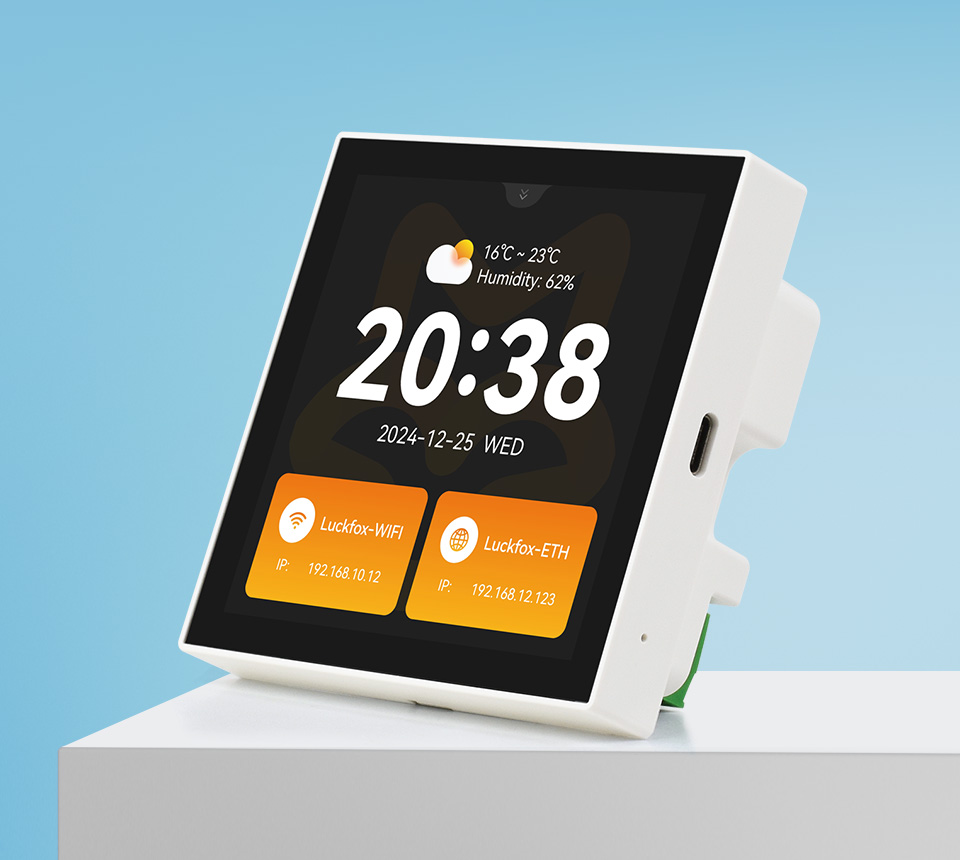

     Luckfox Pico 86 Panel series, front view Background blue, screen displays current temperature, humidity, time, date, wifi, Bluetooth Luckfox Pico 86 Panel series, features ARM Cortex-A7 processor, 128MB/256MB DDR3L RAM, 720x720 resolution display, 5-point touch capability, RS485 communication, and dual-channel relay control
    Development Board Versions

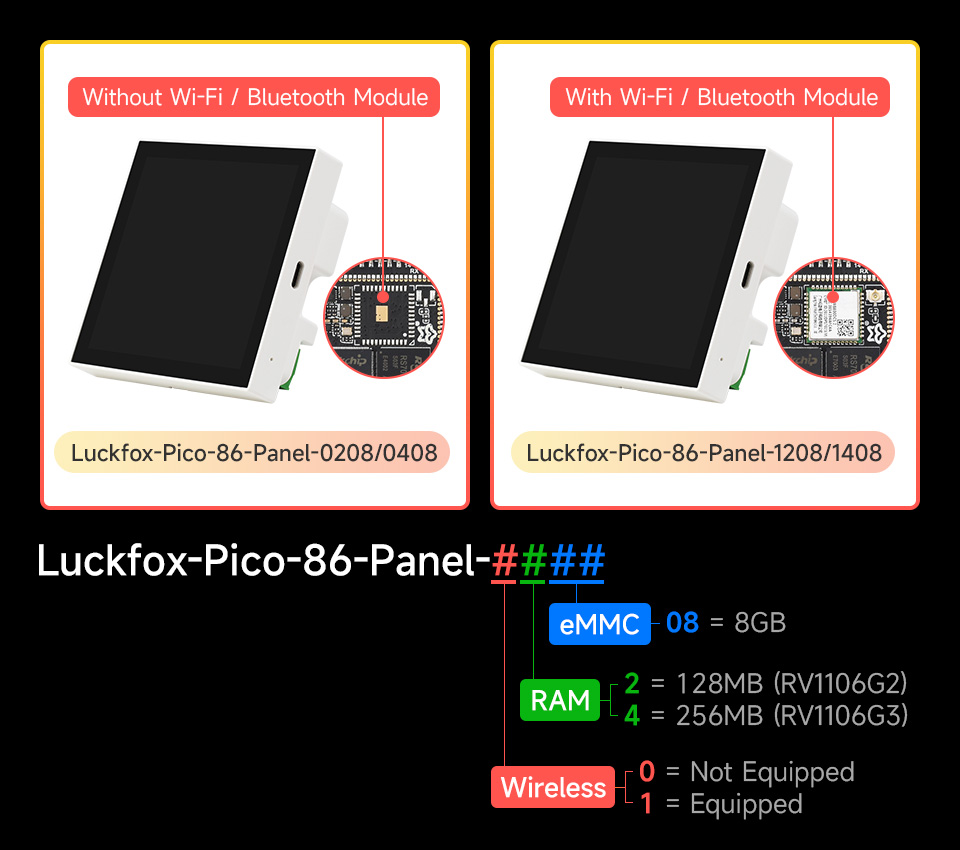

    Luckfox Pico 86 Panel series, version options 0208/0408/1208/1408: optional WiFi and Bluetooth Modules
    Model 0208 1208 0408 1408
    Processor RV1106G2 RV1106G3
    NPU 0.5TOPS 1TOPS
    Memory 128MB DDR3L 256MB DDR3L
    Wireless module - Wi-Fi 6 & Bluetooth 5.2/BLE - Wi-Fi 6 & Bluetooth 5.2/BLE


    4inch IPS Touch Display Introduction

    170° wide viewing angle

    Excellent display performance, high contrast ratio, Wide viewing angle

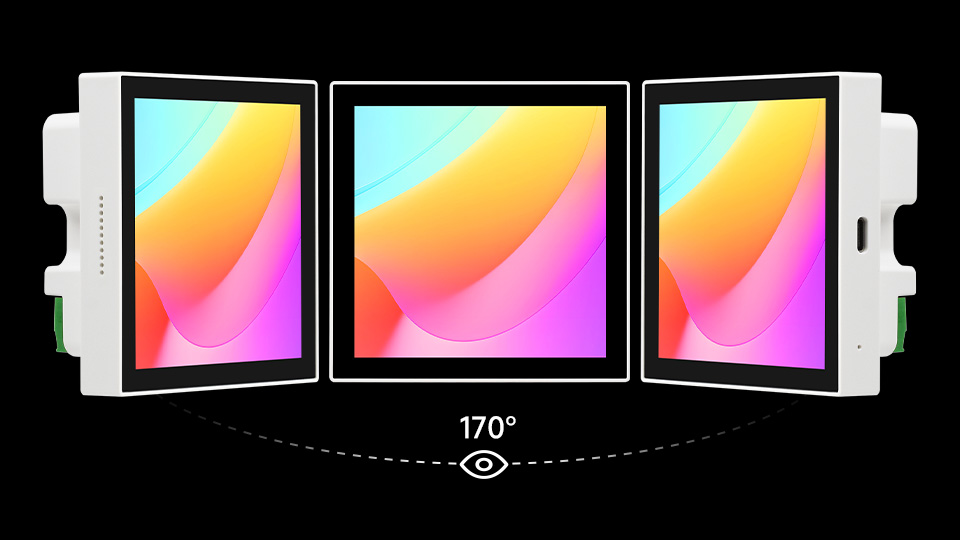

    Luckfox Pico 86 Panel series, 170° ultra-wide viewing angle
    Capacitive 5-point Touch

    Supports flexible and responsive touch operation to make development more convenient

    Luckfox Pico 86 Panel series, 5-point capacitive touch

    * for reference only, the base case in the picture is NOT included

    LCD Specifications
    Model 720×720 4inch IPS Touch Display
    Resolution 720×720
    Communication Interface RGB666
    Display SIZE 4"
    Display Panel IPS
    Touch Type Capacitive
    Touch Chip GT911
    Brightness 400cd/m²
    Contrast ratio 1000:1
    Viewing Angle 170°
    Outline Dimension 84.0×84.0mm (H×V)
    Display area 71.93×71.93mm (H×V)
    Pixel pitch 0.0999×0.0999mm (H×V)
    DISPLAY COLOUR GAMUT 68% NTSC
    Development Board Introduction
    Highly integrated and powerful performance

    Integrates CPU, NPU, ISP and other processors

    Luckfox Pico 86 Panel series, integrates RV1106
    • Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
    • Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16 hybrid quantization. The int8 computing power of RV1106G3 is 1TOPS, and RV1106G2 is 0.5TOPS
    • Built-in self-developed third-generation ISP3.2, supports 5-Megapixel, with multiple image enhancement and correction algorithms such as HDR, WDR, multi-level noise reduction, etc.
    • Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene, saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size
    • Built-in 16-bit DRAM DDR3L, which is capable of sustaining demanding memory bandwidths
    Wi-Fi 6 and Bluetooth module

    Optional for 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, providing Stable Connection And Efficient Transmission

    Luckfox Pico 86 Panel series, optional WiFi 6 and Bluetooth module

    * WiFi 6 / Bluetooth module is only available in Luckfox-Pico-86-Panel-1208 / 1408

    Audio input / playback

    Onboard microphone and speaker to meet the needs of daily audio applications

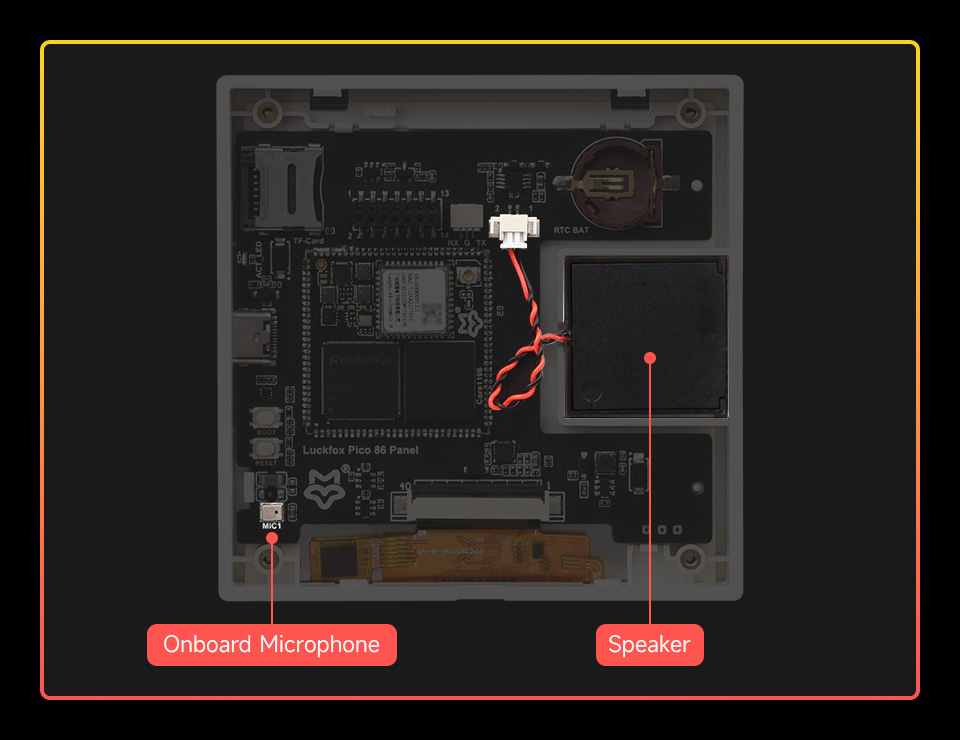

    Luckfox Pico 86 Panel series, onboard microphone and speaker
    Onboard RS485 interface

    Supports Automatic data transmission and reception, built-in power isolation, digital isolation, TVS and other protections

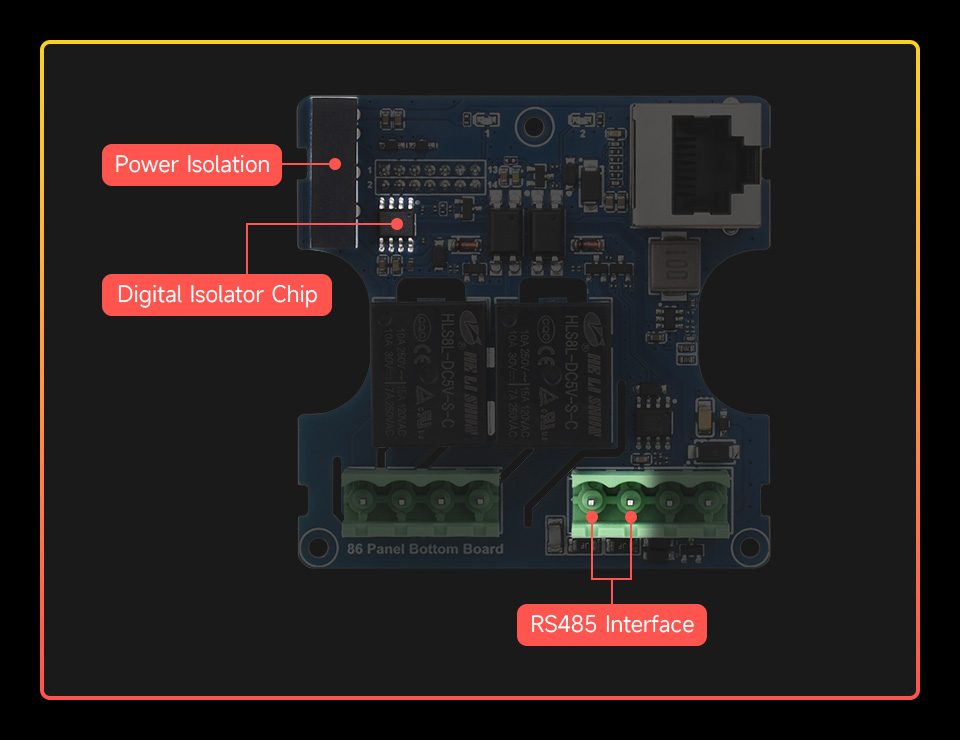

    Luckfox Pico 86 Panel series, onboard power isolation, digital isolator chip, RS485 interface
    2-Channel Relay

    Onboard Optocoupler isolation, prevents the relay from being interfered by high-voltage circuit

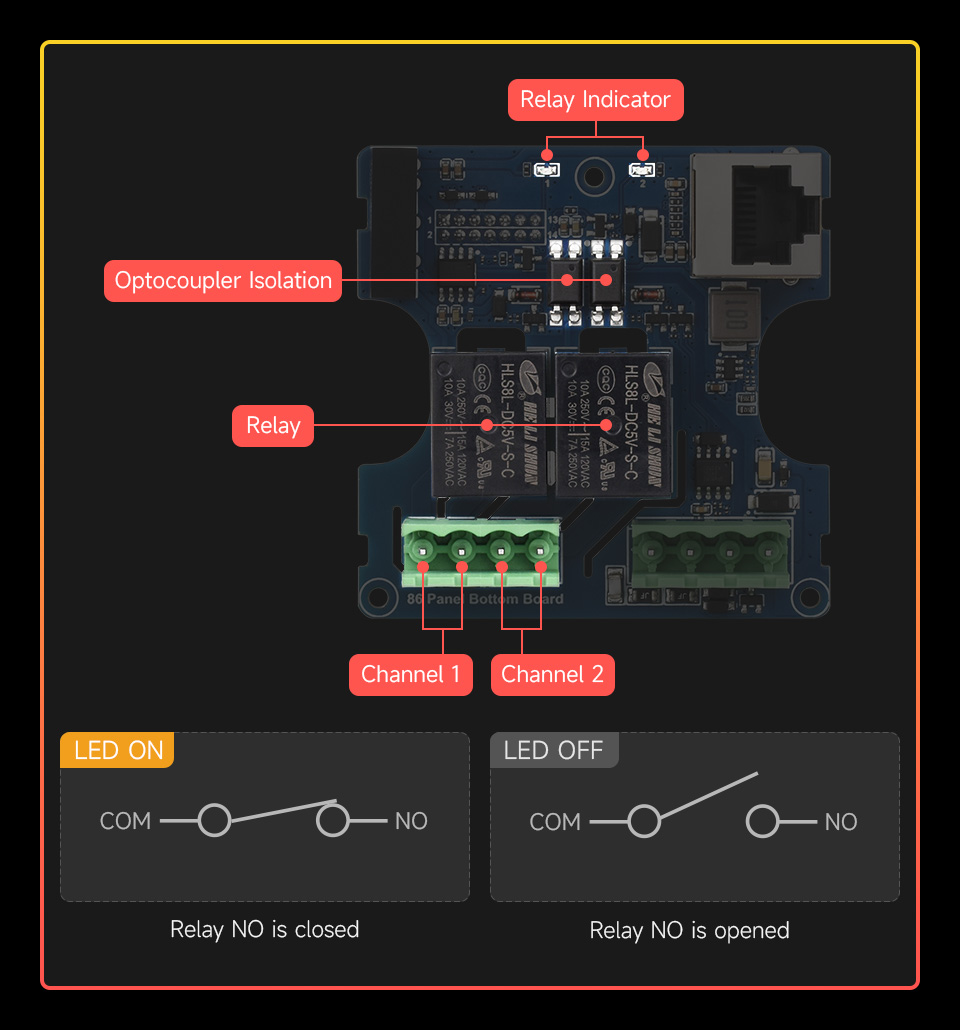

    Luckfox Pico 86 Panel series, onboard relay indicator light, optocoupler isolation, relay
    100M RJ45 Ethernet Port

    Supports 10/100M wired network communication

    Luckfox Pico 86 Panel series, onboard 100M RJ45 Ethernet Port

    * When connecting the network cable, the depth of the 86-type back box should be considered. A short-body RJ45 connector cable is recommended.

    Installation diagram

    Designed with standard 86 dimensions and modular structure for easy installation

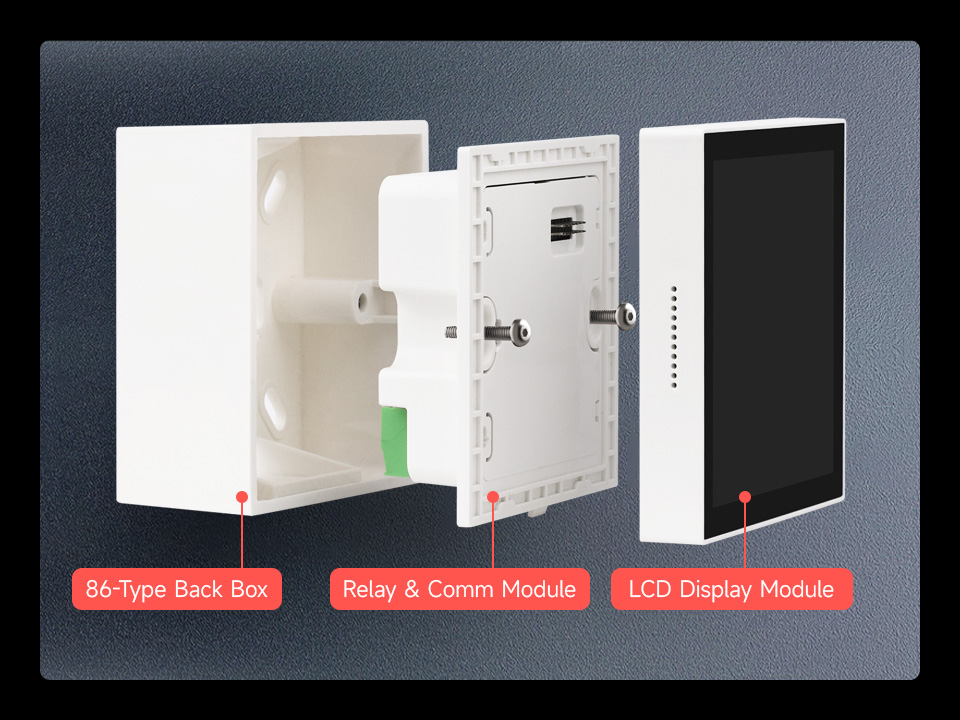

    Luckfox Pico 86 Panel series, installation diagram of 86-Type back box, relay & comm module, and display module

    * the 86-type back box and screws are NOT included
    It is recommended to use an 86-type back box with a depth of 33mm or more.
    If you need to use RJ45 Ethernet port, the back box depth of ≥35mm is recommended. If using a 33–35 mm box, consider using short-body RJ45 connector cable

    Application Scenarios

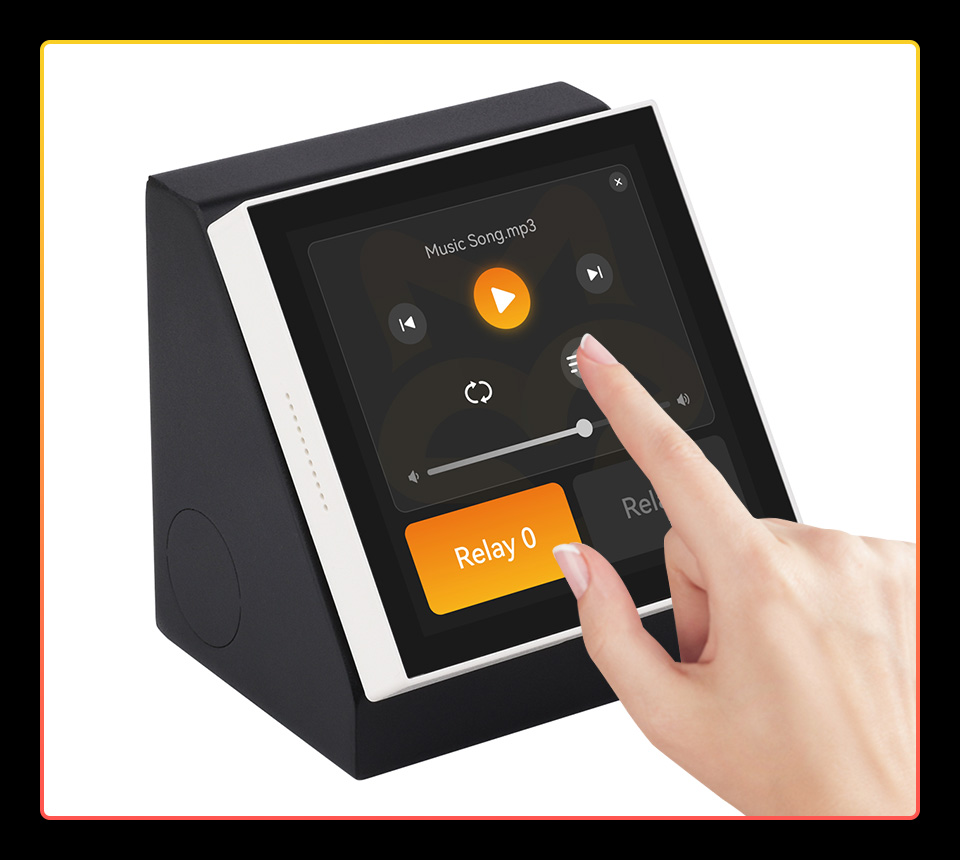

    Luckfox Pico 86 Panel series, application scenarios of smart switch, human-machine interface, smart home terminal
    What's On Board
    Luckfox Pico 86 Panel series, onboard components
    1. Core1106
      RV1106G3 / RV1106G2 core module
      optional for Wi-Fi / Bluetooth wireless module
    2. ACT_LED
      for indicating system operation status in the default image
    3. USB Type-C connector
      for power supply and program burning
    4. BOOT button
      Press it when powering on or resetting to enter download mode

    1. RESET button
      for rebooting the system
    2. Onboard microphone
    3. RGB LCD interface
    4. RTC button cell holder
    5. Audio interface
      MX1.25 2P connector, supports 8Ω 1W speaker
    6. Serial port Debug interface
      SH1.0 3P connector
    7. 14pin multi-function pin header
      for connecting 86 Panel Bottom Board
    Luckfox Pico 86 Panel series, onboard components
    1. RJ45 100M Ethernet port
    2. Relay indicators
    3. Power isolation module
    4. Digital isolator
    5. Optocoupler isolation

    1. Relay
    2. Relay screw terminal
    3. RS485 screw terminal
    4. Power screw terminal
      wide voltage range input: DC 6V ~ 30V

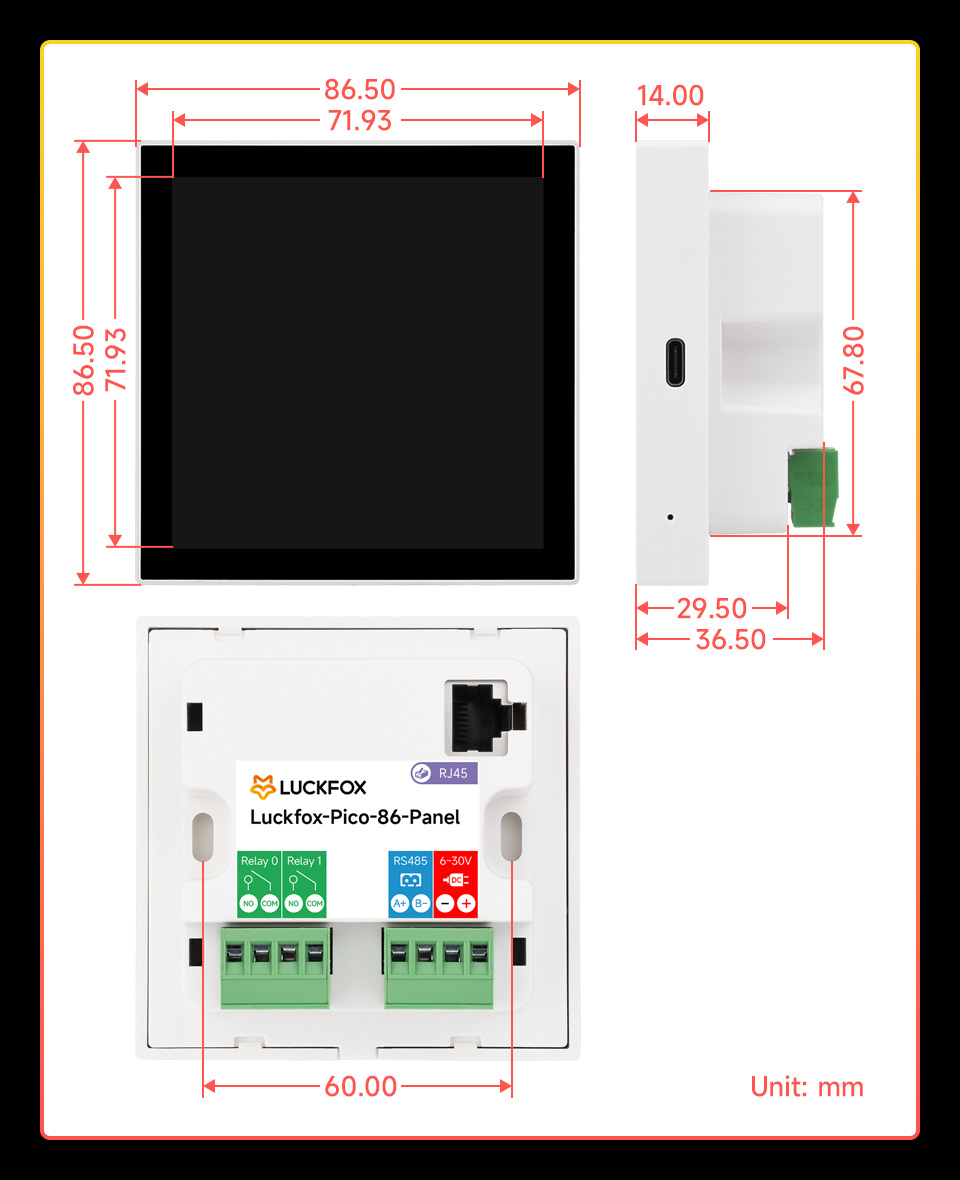

    outline dimensions
    Luckfox Pico 86 Panel series, outline dimensions
