Luckfox Lyra Zero W

Luckfox Lyra Zero W Micro Linux Development Board Based On RK3506B Chip, Integrated With Triple-core Arm Cortex-A7 And Arm Cortex-M0 Processors

Luckfox Lyra Zero W

Luckfox Lyra Zero W is a Linux micro development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, SDMMC, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging. Integrated wireless communication module, suitable for IoT communication scenarios such as smart home and industrial control.

Specifications

Model	Luckfox Lyra Zero W
Processor	Triple-core Arm Cortex-A7 (1.2GHz) + Arm Cortex-M0
Memory	Onboard 512MB DDR3L
USB	Original USB OTG 2.0 × 1 HUB expanded USB HOST 2.0 × 2
Display Interface	MIPI DSI 2-lane
GPIO	28 × Rockchip Matrix IO pins
Default Storage	SPI NAND FLASH (256MB)
Wireless communication	Onboard 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE

Highly integrated and powerful performance

Triple-core ARM Cortex-A7 32-bit core, with integrated VFP to support single-precision and double-precision floating-point operations
Built-in ARM Cortex-M0 MCU design, supports SMP and AMP configuration
Supports DDR3L memory interface expansion, meeting various expansion needs
The low-speed interfaces adopt Rockchip Matrix IO design, which allows rich function signals to share the limited chip pins, making peripheral circuit adaptation more flexible
Supports multiple audio inputs and outputs, providing high-quality audio playback and recording functions

Easier to develop

Integrated TF card slot, DSI interface, USB-C HOST port, and MX1.25 USB HOST header

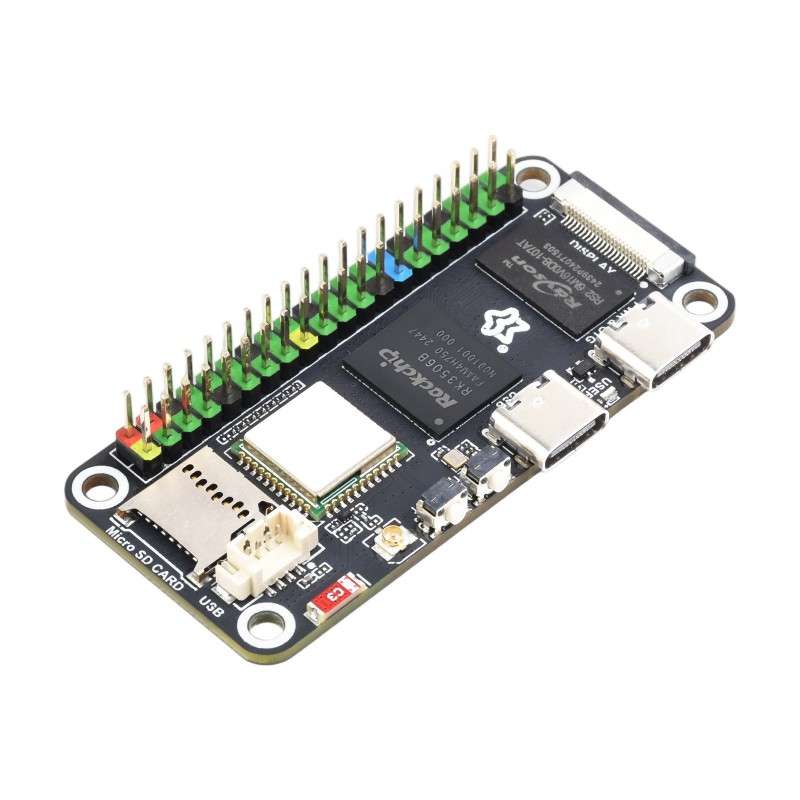

Luckfox Lyra Zero W, Integrated TF card slot, DSI interface, USB-C HOST port, and MX1.25 USB HOST port

WiFi 6 and Bluetooth module

Onboard 2.4GHz WiFi 6 and Bluetooth 5.2/BLE Module, Providing Stable Connection And Efficient Transmission

Antenna Switching

Flexible Switching Between External Antenna and Onboard Antenna to meet more usage scenarios

MIPI DSI 2-lane interface

Compact size, powerful performance, easy to drive large screens

* for reference only, please refer to the Package Content for the detailed part list.
The display resolution of the above LCD is 800 × 1280, Supports up to 1280 × 1280 @ 60Hz resolution.

Rockchip Matrix IO Design

The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration

Suitable for more application scenarios

Pin definition

What's On Board

USB-C OTG0 port
for power supply and program burning
USER-LED
for indicating system operation status in the default image
USB-C HOST port
for connecting USB peripherals
RESET button
BOOT button
Press it when powering on or resetting to enter download mode
Antenna connector
Onboard antenna

DSI display interface
MIPI DSI 2-lane
512MB DDR3L
RK3506B
Multi-core heterogeneous SoC with built-in Triple-core ARM Cortex-A7 + ARM Cortex-M0
Wi-Fi / Bluetooth module
2.4G Wi-Fi 6 / Bluetooth 5.2 / BLE module
MX1.24 4P header
can be converted to USB-A HOST port or used for LCD screen power input
TF card slot
40PIN GPIO header
Compatible with some Raspberry Pi HATs

USB HUB chip
PMIC
3-ch power management IC

W25N02KV
256MB SLC NAND FLASH

outline dimensions

Luckfox Lyra Product Selection

PRODUCT	Main chip	Memory	DSI	USB	Default Storage	FEATURES
Luckfox Lyra	RK3506G2	128MB DDR3L	2-lane (1.5Gbps/lane)	2 × USB OTG	TF card (Not included)	Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, reserved RMII interface, etc.
Luckfox Lyra B					SPI NAND FLASH (256MB)
Luckfox Lyra Plus					SPI NAND FLASH (256MB)	Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, etc.
Luckfox Lyra Ultra	RK3506B	512MB DDR3L			eMMC (8GB)	Multi-core heterogeneous CPU, onboard DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc.
Luckfox Lyra Ultra W				USB OTG2.0 × 1, Extended USB HOST2.0 × 2 via HUB	eMMC (8GB)	Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc.
Luckfox Lyra Zero W				USB OTG2.0 × 1, Extended USB HOST2.0 × 2 via HUB	SPI NAND FLASH(256MB)	Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), onboard antenna
Core35060800				USB OTG × 2	-	Multi-core heterogeneous CPU, onboard DDR3L, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC and 10M/100M RMII, etc
Core35060808				USB OTG × 2	eMMC (8GB)
