D-Robotics RDK S100 MCU Port Expansion Board, Designed For RDK S100 Development Kit (WS-31643)

D-Robotics RDK S100 MCU Port Expansion Board, Designed For RDK S100 Development Kit, Supports Easy Access To Various Peripherals

RDK S100 MCU Port Expansion Board

Gigabit Ethernet Port | CAN Port | 30PIN header | IMU

The RDK S100 MCU Port Expansion Board is specifically designed for the RDK S100 development kit. It adapts the core interfaces of the main control MCU Domain, allowing users to easily connect various peripherals and accelerating the testing and development process.

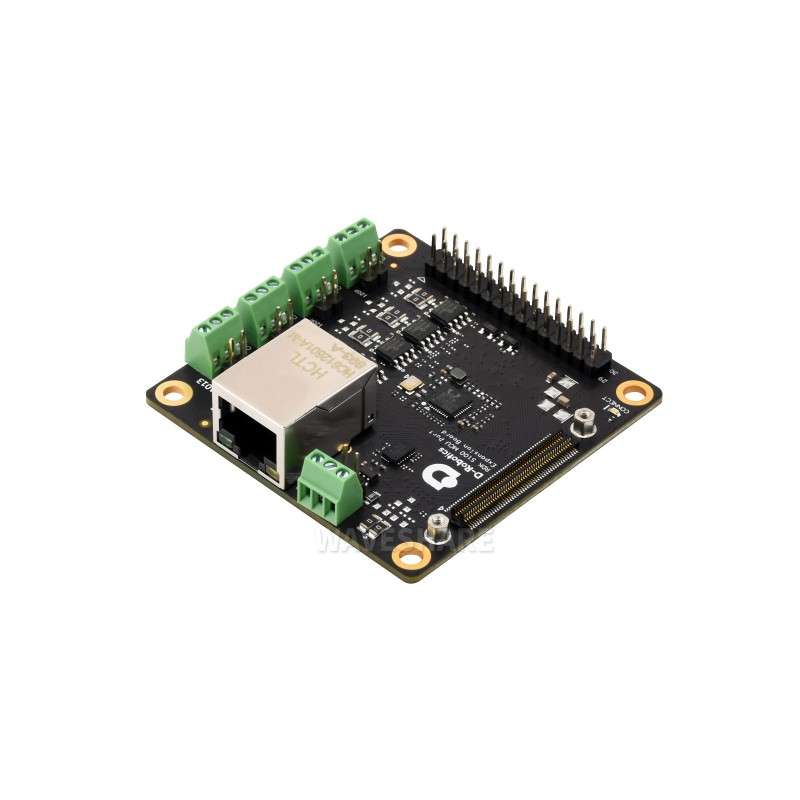

RDK S100 MCU Port Expansion Board, front view

Specifications

100PIN connector	For connecting the RDK S100 development board
CAN interface	Onboard 5 × CAN screw terminals
Ethernet port	Onboard 1 × Gigabit Ethernet port
30PIN header	Adapting 7 × ADC, 2 × I2C, and 2 × SPI interfaces
IMU	Onboard BMI088 3-axis sensor for attitude and motion data acquisition
Operating temperature	0℃ ~ 45℃ (suitable for most industrial environments)
Outline Dimensions	70 × 70 × 17 (mm)
