Luckfox Lyra Pi Linux Micro Dev.Board, Luckfox Core3506 Core Board (WS-31894)
WS-31894
76,14 €
61.90 € bez DPH
Luckfox Lyra Pi Linux Micro Dev.Board, Luckfox Core3506 Core Board (WS-31894)
Luckfox Lyra Pi Linux Micro Dev.Board, Luckfox Core3506 Core Board (WS-31894)
- Luckfox Lyra Pi B (without eMMC)
- Wireless NOT Included
- SIM7600G-H-M.2 4G module Included
Luckfox Lyra Pi Linux Micro Development Board, Based On Luckfox Core3506 Core Board, Integrates Triple-core ARM Cortex-A7 and ARM Cortex-M0 Processors
Luckfox Lyra Pi
The Luckfox Lyra Pi is a cost-effective Linux micro development board, based on the Luckfox Core3506 chip to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, RMII, SDIO, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allowing for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging.
Development Board Versions
Version Comparison
| Model | PI A | PI B | PI A W | PI B W |
| Processor | Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0 | |||
| Memory | 512MB DDR3L | |||
| USB | Original USB OTG2.0 × 1, Extended USB HOST2.0 × 3 via HUB |
|||
| Display | MIPI DSI 2-lane | |||
| GPIO | 23 × Rockchip Matrix IO pins + 5 × GPIO pins | |||
| Default Storage | 8GB eMMC | TF card (NOT included) | 8GB eMMC | TF card (NOT included) |
| Wireless | - | Onboard 2.4GHz WiFi 6 / Bluetooth 5.2 / BLE | ||
SIM7600G-H-M.2
The SIM7600G-H-M.2 is a LTE Cat 4 module which supports wireless communication modes of LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, and EDGE, etc. It adopts M.2 form factor and can be integrated into the Luckfox Lyra Pi series
Wi-Fi 6 and Bluetooth module
Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission
Reserved PoE Module Header
More Flexible for Power Supply
* the PoE module is NOT included.
USB HUB Expansion
Expands to 2 × USB-A HOST ports and an MX1.25 USB header via USB HUB
Onboard M.2 slot for 4G Module
The USB signal of the MX1.25 USB port can be switched to 4G module M.2 slot via DIP switch, only compatible with the SIM7600G-H-M.2 4G module
* for reference only, please refer to the part list for detailed package content.
Audio Interface
Onboard 3.5mm headphone/microphone audio jack, meets a variety of audio application scenarios
MIPI DSI 2-lane interface
Compact size, powerful performance, easy to drive large screens
Supports up to 1280 × 1280 @ 60Hz resolution. The resolution of the screen in the picture is 800 × 1280.
* for reference only, please refer to the part list for detailed package content.
Rockchip Matrix IO design
The Rockchip Matrix IO supports 98 multiplexed functions and allows flexible pinout configuration
Suitable for more application examples
Pin definition
What's On Board
- Core3506
RK3506B core module, optional for eMMC - USB Type-C OTG0 port
for power supply and program burning - BOOT button
Press it when powering on or resetting to enter download mode - RESET button
for rebooting the Core3506 system - 4G-RESET button
for rebooting the 4G module - 4G NET LED
for indicating the operating status of the 4G module - USER-LED
for indicating system operating status in the default image - 3.5mm headphone/microphone jack
Supports single-channel audio capture or output - MX1.25 4P header
Supports conversion to USB-A HOST interface or for LCD screen power supply
- USB-A HOST ports
Expands 2x USB-A ports via USB-HUB chip - RJ45 100M Ethernet port
- RJ45 100M Ethernet port (with PoE support)
Supports power supply via PoE switch with network cable - PoE module header
- 40PIN GPIO header
Compatible with some Raspberry Pi HATs - WIFI/Bluetooth module (optional)
2.4G WiFi 6 / BT5.2 / BLE Bluetooth module - Antenna connector
- DSI interface
MIPI DSI 2-lane - 4G module M.2 slot
Supports SIM7600G-H-M.2 4G module - TF card slot
for Lyra Pi B versions only - SIM card slot
outline dimensions
Luckfox Lyra Product Selection
| PRODUCT | Main chip | Memory | DSI | USB | Default Storage | FEATURES |
|---|---|---|---|---|---|---|
 Luckfox Lyra |
RK3506G2 | 128MB DDR3L | 2-lane (1.5Gbps/lane) | 2 × USB OTG | TF card (Not included) | Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, reserved RMII interface, etc. |
Luckfox Lyra B |
SPI NAND FLASH (256MB) | |||||
 Luckfox Lyra Plus |
Multi-core heterogeneous CPU, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, etc. | |||||
 Luckfox Lyra Ultra |
RK3506B | 512MB DDR3L | eMMC (8GB) | Multi-core heterogeneous CPU, onboard DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc. | ||
 Luckfox Lyra Ultra W |
USB OTG2.0 × 1, Extended USB HOST2.0 × 2 via HUB |
Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI screens, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC, 10M/100M Ethernet port, speaker header, RTC battery connector, etc. | ||||
 Luckfox Lyra Zero W |
SPI NAND FLASH(256MB) | Multi-core heterogeneous CPU, onboard WiFi module and DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), onboard antenna | ||||
 Core35060800 |
USB OTG × 2 | - | Multi-core heterogeneous CPU, onboard DDR3L, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), ADC and 10M/100M RMII, etc | |||
 Core35060808 |
eMMC (8GB) | |||||
 Luckfox Lyra Pi A |
USB OTG2.0 × 1, Extended USB HOST2.0 × 3 via HUB | Multi-core heterogeneous CPU, Onboard 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, etc. | ||||
 Luckfox Lyra Pi A W |
Multi-core heterogeneous CPU, Onboard WiFi module, 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, etc. | |||||
 Luckfox Lyra Pi B |
TF card (NOT included) | Multi-core heterogeneous CPU, Onboard 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, TF card slot, etc. | ||||
 Luckfox Lyra Pi B W |
Multi-core heterogeneous CPU, Onboard WiFi module, 4G module M.2 slot, DDR3L, compatible with Raspberry Pi DSI LCD, RM_IO support (multiplexing PWM, UART, I2C, SPI, CAN and other function signals), dual 10M/100M Ethernet ports, 3.5mm headphone/microphone jack, TF card slot, etc. |
Certificate of Authorization

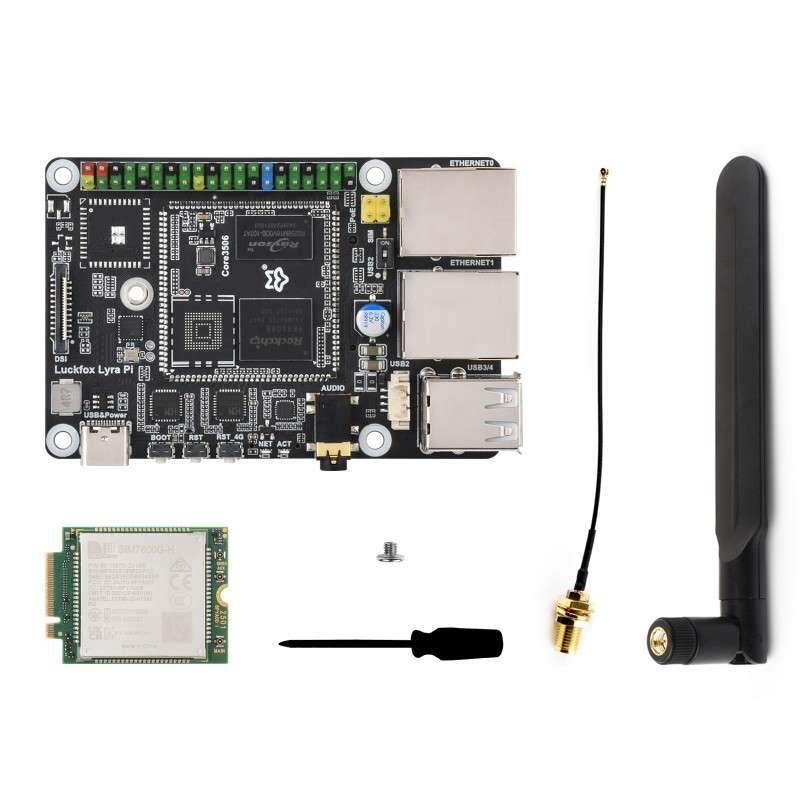

Balenie Obsahuje / Package Content
Luckfox Lyra Pi B 4G Kit
- Luckfox Lyra Pi B x1
- SIM7600G-H-M.2 x1
- 4G antenna x1
- IPEX4 to SMA cable x1
- Screwdriver x1
- 4G Module mounting screw x1
