Official D-Robotics RDK X5 MD Carrier Board For RDK X5 Module, For All Variants Of RDK X5 MD Module (WS-32093)
WS-32093
103,32 €
84.00 € bez DPH
Official D-Robotics RDK X5 MD Carrier Board For RDK X5 Module, For All Variants Of RDK X5 MD Module (WS-32093)
Official D-Robotics RDK X5 MD Carrier Board For RDK X5 Module, For All Variants Of RDK X5 MD Module (WS-32093)
Official D-Robotics RDK X5 MD Carrier Board For RDK X5 Module, Suitable For All Variants Of RDK X5 MD Module

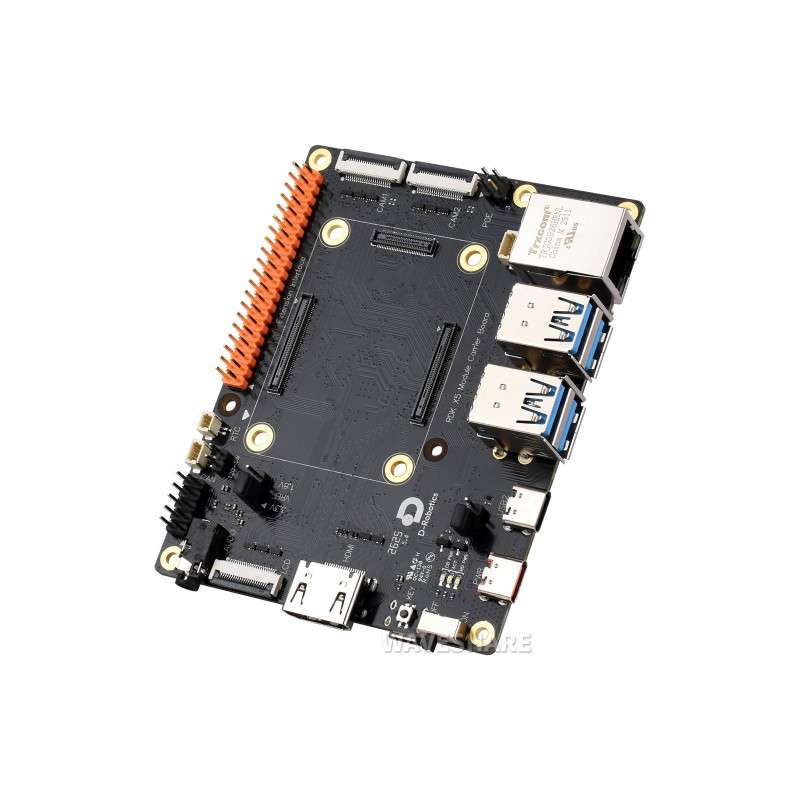

The RDK X5 Carrier Board is a companion board for RDK X5 MD Module, provides rich interfaces including USB 3.0, Ethernet, HDMI, MIPI CSI, MIPI DSI and 40PIN header, etc, facilitates functional verification and development of the module.
Specifications
| RDK X5 Socket | Suitable for all variants of RDK X5 Module |
|---|---|
| network | Gigabit Ethernet RJ45 port |
| USB | USB 3.0 Host port × 4 |
| Micro USB 2.0 Device port × 1 | |
| Micro USB 2.0 port (UART debug port ) | |
| Connectors | 40PIN GPIO header |
| 10PIN function control IO | |
| Display | MIPI DSI interface (15PIN 1.0mm FPC connector) |
| HDMI port × 1 | |
| Camera | MIPI CSI (4-lane) interface × 2 |
| RTC | Onboard RTC battery header |
| Storage | Onboard TF card slot for RDK X5 MD Lite (without eMMC) variants |
| Fan connector | 12V, supports speed control and speed measurement |
| Other Resources | CAN interface, power switch and PoE module header |
| Power Input | 5V 5A |
| Dimension | 99 × 79mm |
Specifically designed for RDK X5 Module
Easily expand multiple interfaces, making development more convenient
* for reference only, the RDK X5 Module is NOT included.
