    Official D-Robotics RDK X3 MD Carrier Board For RDK X3 Module, Suitable For All Variants Of RDK X3 MD Module

    D-Robotics RDK X3 MD Carrier Board

    Specifically designed for D-Robotics RDK X3 MD Module

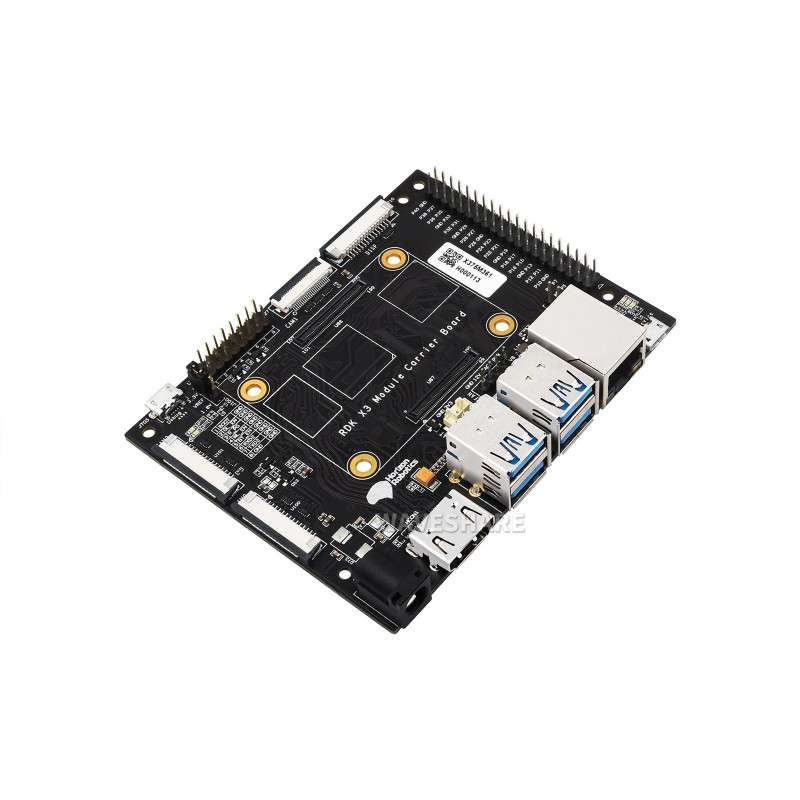

     RDK-X3-MD-Carrier-Board, front view

    The RDK X3 Module Carrier Board is a companion board for RDK X3 MD Module, provides rich interfaces including USB 3.0, Ethernet, HDMI, MIPI CSI, MIPI DSI and 40PIN header, etc, facilitates functional verification and development of the module.

    Specifications
    RDK X3 Socket Suitable for all variants of RDK X3 Module
    network Gigabit Ethernet RJ45 port
    USB USB 3.0 Host port × 4
    Micro USB2.0 Device port × 1
    Micro USB port × 1 (USB to UART, debug interface)
    Connectors 40PIN GPIO header, compatible with the Raspberry Pi 40PIN header
    16PIN function control IO
    Display MIPI DSI interface (15PIN 1.0mm FPC connector)
    HDMI port × 1, supports 4K 30fps output
    Camera MIPI CSI 2-lane interface × 2 (15PIN 1.0mm FPC connector)
    MIPI CSI 4-lane interface × 1 (24PIN 0.5mm FPC connector)
    RTC Onboard RTC battery header
    Storage Onboard TF card slot for RDK X3 MD Lite (without eMMC) variants
    Fan Header 12V, supports speed control and speed measurement
    Power Input 12V / 2A power input
    Dimension 99 × 80mm
    Specifically designed for RDK X3 Module

    Easily expand multiple interfaces, making development more convenient

    RDK-X3-MD-Carrier-Board, connecting with RDK X3 Module

    * for reference only, the RDK X3 Module is NOT included.

    What's On Board
    RDK-X3-MD-Carrier-Board, onboard components
    1. 12V DC Power Jack
    2. HDMI Port
    3. USB3.0 Host Ports
    4. RTC Battery Header
    5. 12V Fan Header
    6. Gigabit Ethernet Port
    7. Micro USB2.0 Device Port
    8. Status Indicators
    9. 40PIN Header

    1. MIPI DSI Interface
    2. CAM1 Interface (4-lane)
    3. RDK X3 Module Socket
    4. Function Control IO Header
    5. IO Level Selection Header
    6. Debug Port, USB to UART
    7. CAM2 Interface (2-lane)
    8. CAM0 Interface (2-lane)
    9. Micro SD Slot (On The back)
    Supports Connecting with multiple devices

    More convenient for users to verify and develop module functions

    RDK-X3-MD-Carrier-Board, Connecting with multiple devices

    * for reference only, please refer to the package content for detailed part list.

    Product Show
    RDK-X3-MD-Carrier-Board , Product Show
    Outline dimensions
    RDK-X3-MD-Carrier-Board , Outline dimensions

    Balenie Obsahuje / Package Content

    RDK X3 MD Carrier Board x1
