RDK X3 AI Module Kit, 5 TOPS Computing Power, Compatible with Raspberry Pi CM4, Vision Kit (WS-32241) incl.RDK X3 MD 104032
WS-32241
183,27 €
149.00 € bez DPH
RDK X3 AI Module Kit, 5 TOPS Computing Power, Compatible with Raspberry Pi CM4, Vision Kit (WS-32241) incl.RDK X3 MD 104032
RDK X3 AI Module Kit, 5 TOPS Computing Power, Compatible with Raspberry Pi CM4, Vision Kit (WS-32241) incl.RDK X3 MD 104032
- RDK X3 MD 104032 VISION KIT (EU)
- RDK X3 MD 104032 Included
- Vision Kit (EU)
RDK X3 AI Module Kit, 5 TOPS Computing Power, Compatible with Raspberry Pi CM4, Multiple Kits Options
D-Robotics RDK X3 AI Module
5 TOPS AI Computing Power
Introduction
The RDK X3 AI Module is a fully-featured, high-performance intelligent module equipped with the D-Robotics X3 high-performance AI chip, delivering both general-purpose and AI computing power at the edge. Compatible with Raspberry Pi CM4, enabling quick integration and rapid product deployment for users. The module features a quad-core Cortex A53 ARM processor, supports 5TOPS computing power. It also supports 4K@60fps video encoding and decoding, providing a high-quality video experience.
The main interfaces include HDMI, Gigabit Ethernet, USB 3.0, MIPI CSI, and MIPI DSI for diverse peripheral connectivity. Provides options for Wireless / RAM / eMMC. Users can select different specifications based on their specific requirements, enabling more flexible and efficient solutions.
Kit Selection
| Kit | Basic Kit | Basic Kit Accessories Pack | Vision Kit | Vision Kit Accessories Pack |
| RDK X3 MD 104032 | √ | √ | ||
| CM4-IO-BASE-B Baseboard | √ | √ | √ | √ |
| 5V/3A Type-C Power Supply | √ | √ | √ | √ |
| Cooling Fan | √ | √ | √ | √ |
| Antenna | √ | √ | √ | √ |
| IMX219-77 Camera | √ | √ | ||
| 7inch HDMI LCD (H) | √ | √ |
RDK X3 MD Basic Kit (Optional for RDK X3 MD 104032)
The Basic Kit is available in two options: the RDK X3 MD 104032 version (4GB RAM, 32GB eMMC flash, with WiFi) and the accessories pack version. Comes with a CM4-IO-BASE-B baseboard, while other accessories including cooling fan, antenna, 5V 3A power supply, etc.
RDK X3 MD Vision Kit (Optional for RDK X3 MD 104032)
On the basis of the Basic Kit, this kit is equipped with a 7inch HDMI Touch Display (1024x600 resolution) and an 8MP IMX219-77 Camera, enabling real-time display of captured images and support a wider range of human-machine interaction applications.
Specifications
| CPU | Quad-core Cortex A53 64-bit SoC @1.5GHz |
|---|---|
| BPU | 5 TOPS |
| RAM | Options for 2GB / 4GB LPDDR4 |
| Storage | Options for 16GB / 32GB / 64GB eMMC Flash Memory |
| Connectivity | Optional dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac WiFi and Bluetooth 4.2, with external antenna connector |
| Supports Gigabit Ethernet port | |
| 1 x USB 3.0 interface | |
| 28 x GPIO pins | |
| SD card interface for SD card | |
| Display | 1 x HDMI port (supports 1080p@60) |
| 1 x MIPI DSI interface (supports 1080p@60) | |
| Image | 2 x 2-lane MIPI CSI camera interface |
| 1 x 4-lane MIPI CSI camera interface | |
| Multimedia | 4Kp60 H.264 / H.265 (Codec); MJPEG (Codec) |
| Power Input | 5V/3A DC |
| Operating Temperature | -20°C ~ 60°C |
High-Performance AI Core
Quad-core Cortex A53 64-bit processor, BPU 5 TOPS AI computing power
High-Speed Wi-Fi & Bluetooth
Onboard dual-band Wi-Fi and Bluetooth module AP6253, enabling seamless connectivity anytime and anywhere
Supports External Antenna
* for reference only, please refer to the package content for detailed part list.
What's On Board
Model Numbering Rules
| Model | Wireless | RAM | eMMC Flash |
|---|---|---|---|
| RDK X3 MD | 1 = Yes 0 = No |
02 = 2GB 04 = 4GB |
016 = 16GB 032 = 32GB 064 = 64GB |
| Example: RDK X3 MD 102016, RDK X3 Module with onboard wireless, 2GB RAM, and 16GB eMMC Flash | |||
| RDK X3 MD | 1 | 02 | 016 |
| Part Number | Wireless | RAM | eMMC |
|---|---|---|---|
| RDK X3 MD 002016 | NO | 2GB | 16GB |
| RDK X3 MD 002032 | NO | 2GB | 32GB |
| RDK X3 MD 004032 | NO | 4GB | 32GB |
| RDK X3 MD 004064 | NO | 4GB | 64GB |
| RDK X3 MD 102016 | YES | 2GB | 16GB |
| RDK X3 MD 102032 | YES | 2GB | 32GB |
| RDK X3 MD 104032 | YES | 4GB | 32GB |
| RDK X3 MD 104064 | YES | 4GB | 64GB |
Compatible with CM4-IO-BASE-B
The CM4-IO-BASE-B is a Raspberry Pi CM4 baseboard launched by Waveshare, compatible with RDK X3 Module. It can serve as a development system for the RDK X3 Module, or be integrated as a carrier board into end products, helping users quickly verify and develop products by connecting Raspberry Pi HATs and modules.
Note: Some interface resources on the baseboard are unavailable, please refer to the actual core MODULE resources for details.
Product Show
Outline dimensions

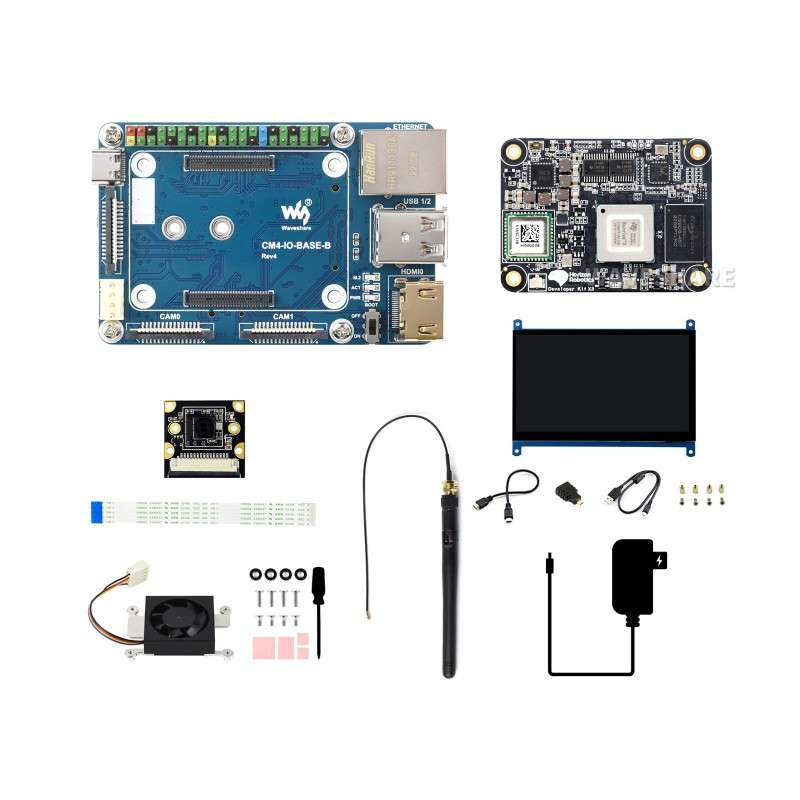

Balenie Obsahuje / Package Content
RDK X3 MD 104032 VISION KIT
- CM4-IO-BASE-B ×1
- RDK X3 MD 104032 ×1
- 7inch HDMI LCD (H) ×1
- IMX219-77 Camera ×1
- Cooling fan ×1
- Antenna ×1
- 5V 3A Type-C Power Supply x1
WS-32241
