Luckfox PicoKVM Lightweight IP KVM Remote Management ,1920×1080@60fps HDMI Video Input And HID Output (WS-34822) eMMC 0GB
WS-34822
67,65 €
55.00 € bez DPH
Luckfox PicoKVM Lightweight IP KVM Remote Management ,1920×1080@60fps HDMI Video Input And HID Output (WS-34822) eMMC 0GB
Luckfox PicoKVM Lightweight IP KVM Remote Management ,1920×1080@60fps HDMI Video Input And HID Output (WS-34822) eMMC 0GB
- Part No.: Luckfox PicoKVM Lite Kit
- Full version + Luckfox PicoKVM Ext board
- eMMC : 0GB (Lite)
Luckfox PicoKVM Lightweight IP KVM Remote Management Tool, Supports 1920 × 1080@60fps HDMI Video Input and HID Signal Output for Device Control
Luckfox PicoKVM
Version options
Luckfox PicoKVM Base Lite
Basic version without eMMC
Luckfox PicoKVM Base
Basic version with 8GB eMMC
Luckfox PicoKVM Lite
Full version without eMMC
(with metal case and 1.54inch touch display)
Luckfox PicoKVM
Full version with 8GB eMMC
(with metal case and 1.54inch touch display)

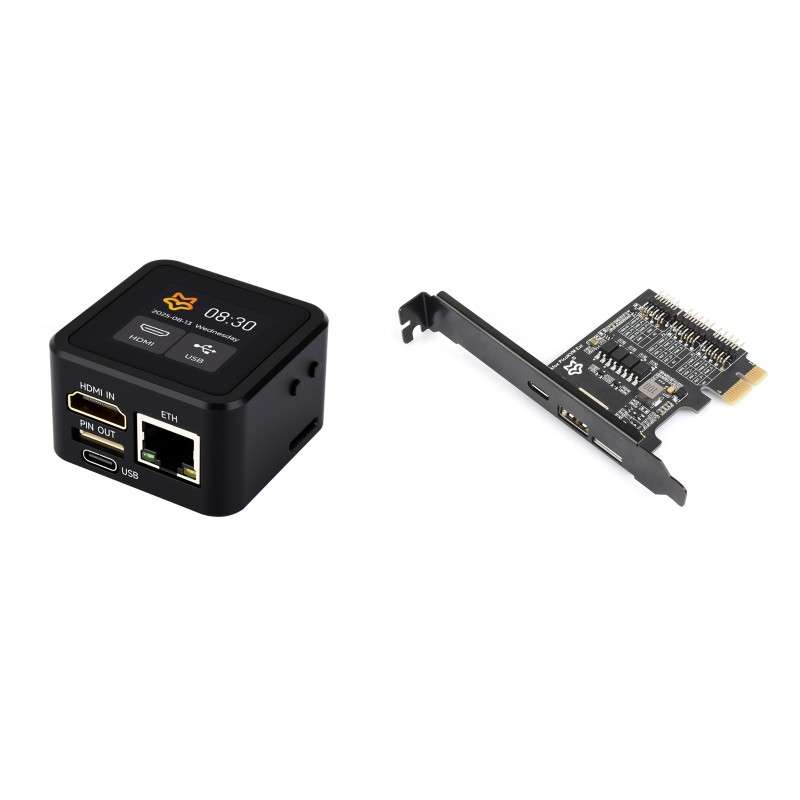

Luckfox PicoKVM Lite Kit
Luckfox PicoKVM Lite Full version (with metal case and 1.54inch touch display, without eMMC) + Luckfox PicoKVM Ext Power Management Expansion Board
Luckfox PicoKVM Kit
Luckfox PicoKVM Full version (with 8GB eMMC, metal case, and 1.54inch touch display) + Luckfox PicoKVM Ext Power Management Expansion Board
Note: The Lite versions require a TF card (please purchase separately) for proper operation.
Features
The Luckfox PicoKVM is a lightweight IP KVM management tool, supports real-time video capture and HID input simulation over the network, enabling touch-free operation of development boards, PCs, and servers. This product offers stable, low-latency video capture and remote control capabilities, widely suitable for scenarios such as remote PC control and server maintenance.
Key Features:
- Onboard HDMI input interface: recognized by PC as a display for video capture
- Onboard USB port: Supports simulation of mouse, keyboard, and USB storage devices
- Onboard 100Mbps Ethernet port: for video and control signal transmission
- 1.54inch touch display: for displaying IP address, connection status, and system operating status
- TF card slot: supports storage expansion
- I/O expansion interface: for host power ON/OFF control
Specifications
| Product | Luckfox PicoKVM | Luckfox PicoKVM Lite |
| Processor | RV1106G3 | |
| Core | 1 × A7@1.2G | |
| Memory | 256M DDR3 | |
| Storage | 8G eMMC | TF card (please purchase separately) |
| System | PicoKVM | |
| Resolution | 1080P@60fps | |
| Video Encoding | H.264/AVC, H.265/HEVC | |
| Video Latency | 80ms ~ 200ms | |
| Audio Transmission | √ | |
| UEFI / BIOS Support | √ | |
| USB Keyboard & Mouse Emulation | √ | |
| USB Storage Emulation | √ | |
| Wake-on-LAN (WOL) | √ | |
| Web Terminal | √ | |
| Custom Script | √ | |
| TF Card Slot | √ | |
| Serial Terminal | 1-Ch | |
| Power Control | GPIO control | |
| Ethernet | 100Mbps | |
| LCD Display | 1.54inch 240 × 240 touch display (Only included in the Luckfox PicoKVM full versions) | |
| Power Input | Type-C | |
| Outline Dimension | Luckfox PicoKVM: 48.50 × 48.50 × 29.00 (mm) | |
| Luckfox PicoKVM Base: 44.00 × 42.00 × 23.60 (mm) | ||
Comparison with Commercial Remote Control Software
Remote Power Control
Enables Physical-Level Remote Power Control with Luckfox PicoKVM Ext Expansion Board
* for reference only, the above host board is NOT included.
Please purchase the Luckfox PicoKVM Ext Expansion Board separately or choose the Luckfox PicoKVM Kit.
Function Demonstrations
What's On Board
- HDMI IN interface
for connecting to the HDMI output interface of the controlled host - I/O expansion interface
- USB Type-C port
for power supply, simulating HID/UMS devices, and programming - 10/100Mbps RJ45 Ethernet port with indicator
- 1.54inch touch LCD
- BOOT button
press it when powering on or resetting to enter download mode - RESET button
- TF card slot
Pin definition

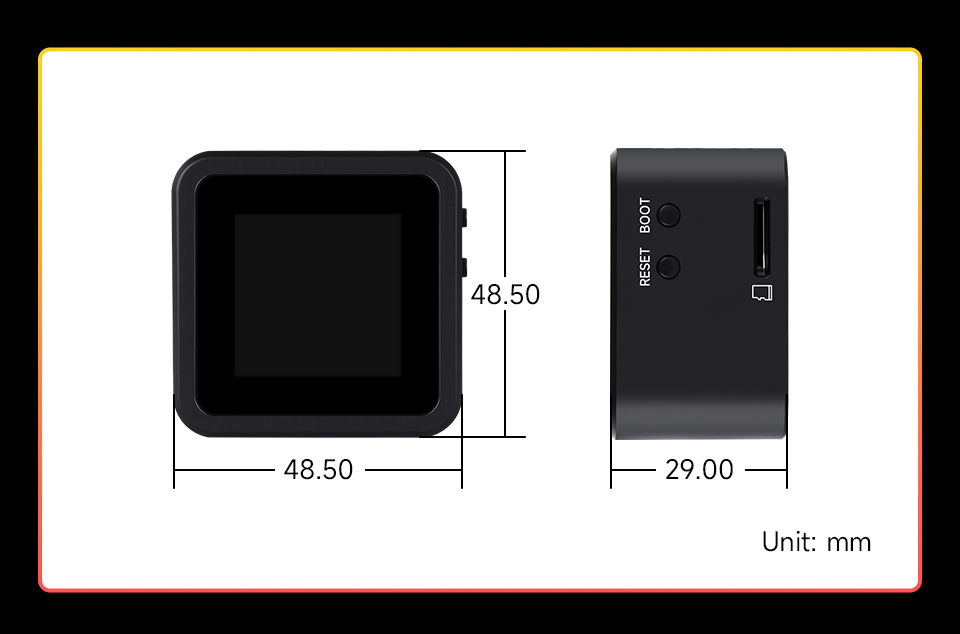

outline dimensions
Luckfox PicoKVM
Luckfox PicoKVM Base
Luckfox PicoKVM Ext Expansion Board
Certificate of Authorization
Resources & Services
Balenie Obsahuje / Package Content
Luckfox PicoKVM Kit
- Luckfox PicoKVM (0GB Lite)
- Luckfox PicoKVM Ext x1
- Type-C extension cable with auxiliary power supply ~175mm x1
- Motherboard USB extension 9PIN cable x1
- Motherboard panel extension 9PIN cable x1
- SH1.0 10PIN cable ~1m x1
