Beaglebone Adapter CAPE for Arduino (Waveshare 10246)

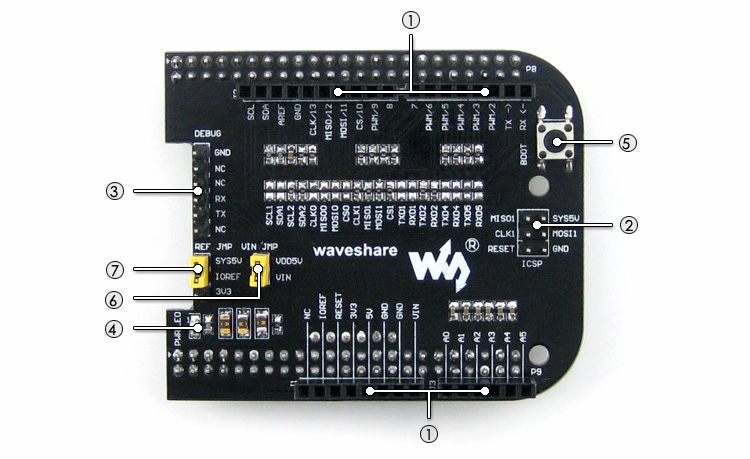

What's on the CAPE for Arduino

1. Arduino connector : for connecting compatible Arduino shields, such as Motor Control Shield
2. ICSP interface : for uploading Arduino programs
3. DEBUG interface : for debugging BB Black OR connected Arduino shields
4. Power indicator
5. BB Black BOOT selection button
6. VIN voltage level selection jumper : connects to VDD5V OR custom power supply
7. IOREF voltage level selection jumper : connects to SYS5V OR 3V3

CAPE for Arduino Photos

CAPE for Arduino BB Black Expansion CAPE

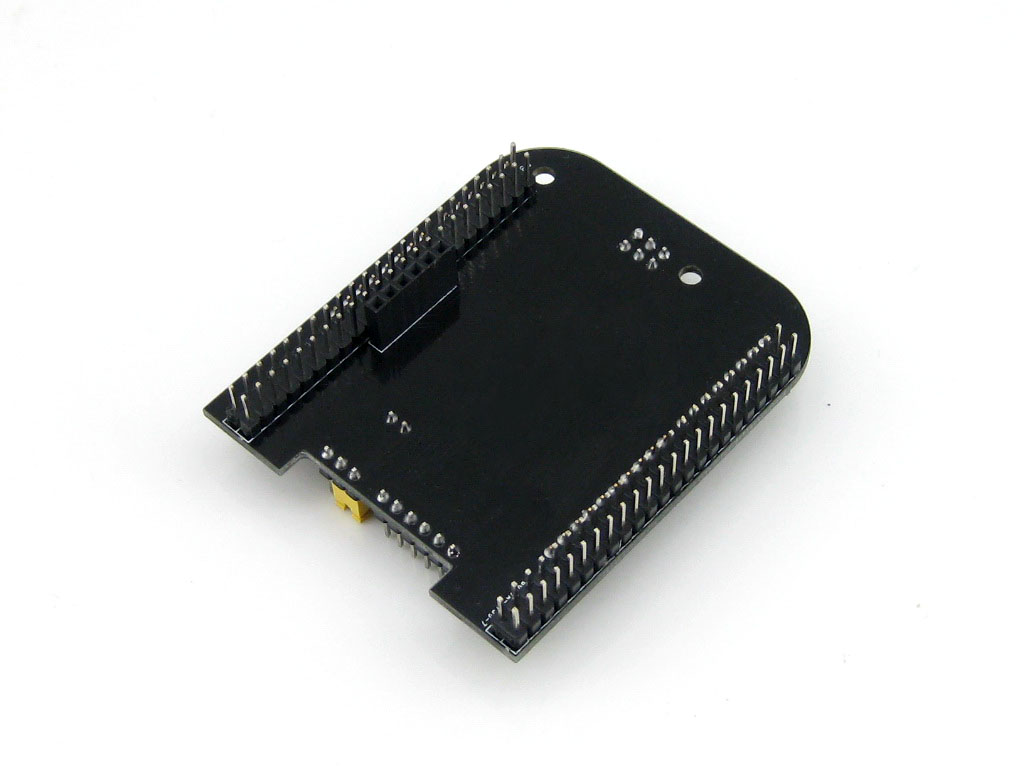

CAPE for Arduino BB Black Expansion CAPE back view

CAPE for Arduino BB Black Expansion CAPE

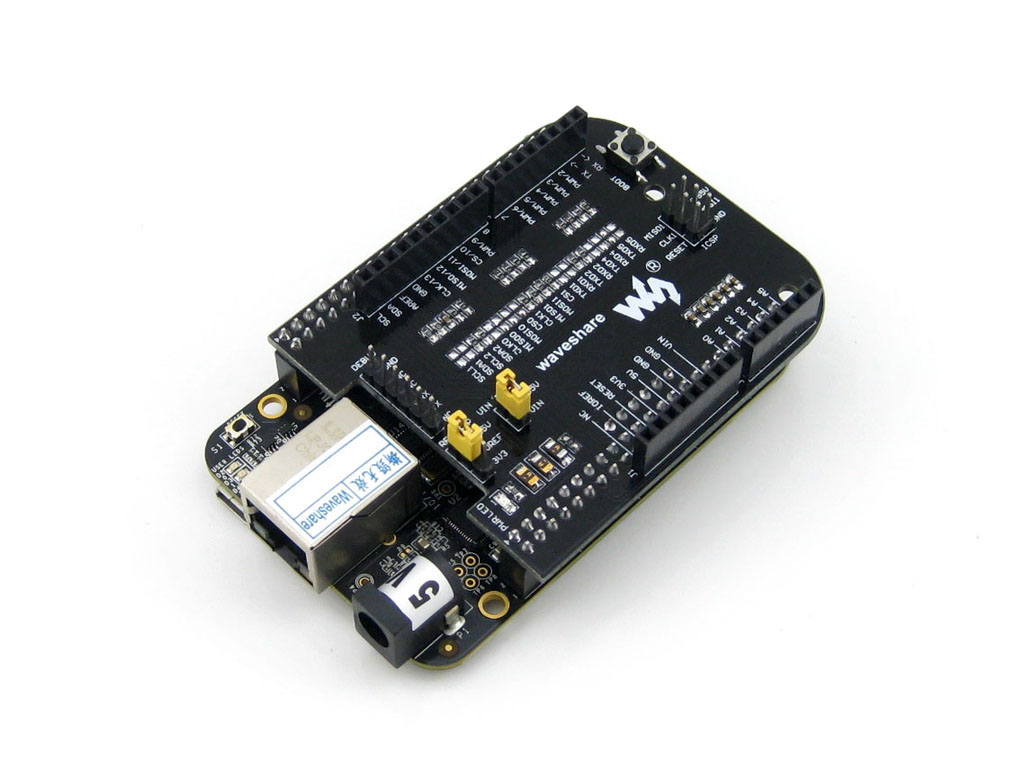

Connecting with BB Black
