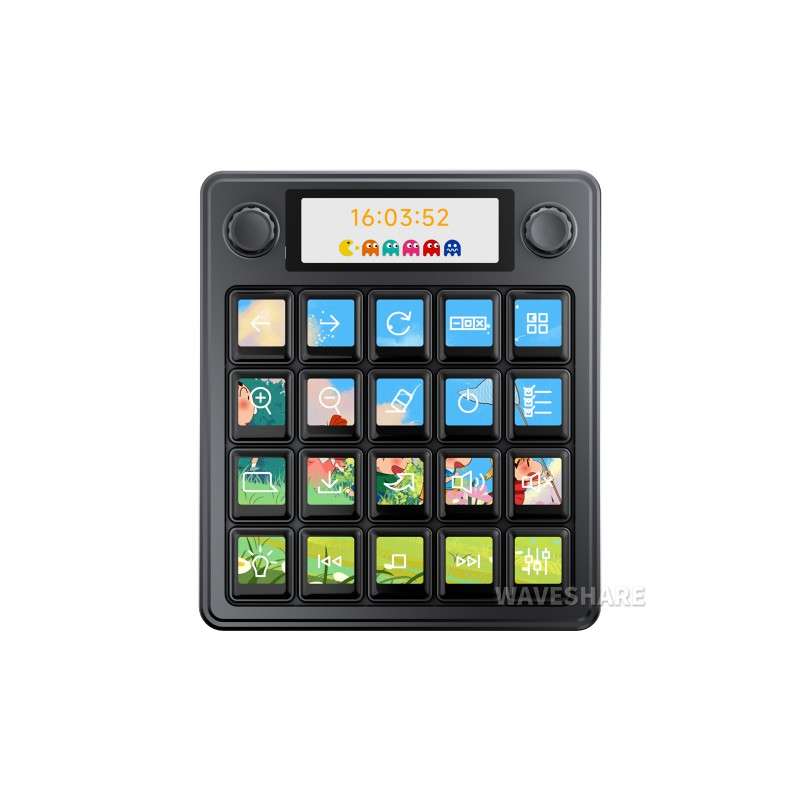

Waveshare MK20 Multi-Functional AI Voice Control Panel, Onboard 20 × 0.85inch LCD Macro Keys And A 2.8inch (WS-32842)
WS-32842
183,27 €
149.00 € bez DPH
Waveshare MK20 Multi-Functional AI Voice Control Panel, Onboard 20 × 0.85inch LCD Macro Keys And A 2.8inch (WS-32842)
Waveshare MK20 Multi-Functional AI Voice Control Panel, Onboard 20 × 0.85inch LCD Macro Keys And A 2.8inch (WS-32842)
- Part No.: MK20 B-EU (BLACK, EU)
Waveshare MK20 Multi-Functional AI Voice Control Panel, Onboard 20 × 0.85inch Mechanical LCD Macro Keys And A 2.8inch Secondary Screen, High-Precision Dual Knobs, Supports Linux + QMK Dual-system Architecture
Waveshare MK20
Multi-Functional AI Voice Control Panel
Multi-Functional AI Voice Control Panel
Color Options
MK20 W
White color
MK20 B
Black color
Multi-screen display, high flexibility
20 × 0.85inch 128 × 128 resolution mechanical LCD Keys with a 2.8inch 428 × 142 resolution secondary screen, enabling highly flexible configuration
Dual Knobs for Precision Control Operation at Your Fingertips
Two high-precision programmable encoder knobs with anodized aluminum caps featuring anti-slip texture. Freely define rotation and press actions for volume adjustment, music playback control, timeline zooming, and parameter fine-tuning
Supports 20-screen splicing display
The background supports images / videos and allows multi-layer overlay
Mechanical switches for Better Tactile Experience
| Actuation Force | 50±10gf | Bottom-out Force | 55±10gf |
|---|---|---|---|
| Actuation Travel | 1.2±0.30mm | Total Travel | 2.8±0.25mm |
| Spring Length | 15.5mm | Lifespan | 50 million times |
* for reference only, please refer to the package content for the detailed part list.
Linux + QMK dual-system architecture
- Main Controller: T113-S3 (Dual-core A7, 1.2GHz), running Linux for complex logic processing
- Sub-Controller: GD32 MCU, running QMK to deliver a zero-latency true mechanical input experience
- Function: Single key / key combinations / macro operations, mouse control, and multi-command chaining — all natively implemented in QMK without PC software
Compatible with multiple platforms
Supports Windows / MacOS systems.
Built-in theme editor: drag-and-drop editing, no coding required
Real-time dynamic preview
Supports import / export functionality,
allowing you to share your configurations and themes
Two placement methods
Using 24° Detachable Stand
Triangular support design for comfortable long-term use
5.5° Desktop Flat Placement
Two placement options for flexible choice
Rich Resources, Supports Online Expansion
Provides an online platform for downloading themes and plugins, with continuous updates
Supports Real-Time Data Integration in Themes
Supports real-time data calls from LibreHardwareMonitor and OpenWeather
LibreHardwareMonitor: Real-time display of CPU temperature, fan speed, and other hardware information
OpenWeather: Integrates weather data for dynamic background display
Supports AIDA64 Themes
Real-time display of system performance data such as CPU, GPU, memory, and network
Supports Speech recognition and
AI Speech Interaction
AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc
Supports Wireless Smart Home Control (HA)
Integrates with Home Assistant (HA) for one-touch smart home control
Application Scenarios
Live Streaming
Office Assistant
Image Editing
Gaming Controls
Balanced Technology and Premium Feel
Aluminum Alloy Top Case: Sturdy and durable, with a high-quality finish
2.5D High-Transparency Acrylic Lens: Hardened and anti-scratch treatment (> 3H hardness)
Outline dimensions
Balenie Obsahuje / Package Content
MK20 B
- MK20 B (Black) x1
- Packaging box x1
- User manual x1
- Type-A to Type-C cable ~1m (2PCS) x1
- USB Type-C dual-plug cable ~1m x1
- MK20 stand x1
- USB Wi-Fi adapter x1
- Type-C power and signal splitter x1
- 5V 3A power adapter x1
