    ROCK3 Model A, Credit Card Sized Computer SBC, Based On RK3568, Options For RAM / EMMC/ Wireless

    ROCK3 Model A

    Credit Card Sized Computer Based On RK3568

    Quad-core 64-bit processor, ARM G52 GPU, NPU, supports AI frameworks such as OpenGL. Available in different variants, with a range of RAMeMMC Flash and wireless module options.

    Specifications
    PROCESSOR Rockchip RK3568 quad-core Cortex-A55 (64-bit SoC @ 2.0GHz)
    GPU ARM G52 2EE
    NPU 0.8TOPS performance
    MULTIMEDIA 4K 60fps H.265/H.264/VP9 video decode; 1080P 60fps H.265/H.264 video encode
    MEMORY 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
    STORAGE eMMC (available options: 16GB, 32GB, 64GB, 128GB)
    μSD card (μSD card slot, max 128GB μSD card)
    M.2 SSD
    CONNECTIVITY optional Wireless Module A1 module, with 2.4G WIFI and 4.2 Bluetooth support
    Gigabit Ethernet support
    USB USB 2.0 × 2; USB 3.0 × 1; USB3.0 OTG × 1 (configurable Host/Device modes)
    IO 40-PIN header
    5 × UART
    1 × SPI
    2 × I2C
    6 × PWM
    1 × ADC
    1 × CAN
    6 × GPIO
    VIDEO HDMI port (supports 4K*2K@60)
    2-lane MIPI DSI display port
    2-lane MIPI CSI camera port
    AUDIO 3.5mm audio jack; HD encode, supports up to 14-bit/96KHz audio
    OTHER RTC
    RTC backup power interface
    VOLTAGE LEVEL PD quick charge power supply: Type C PD2.0, 9V/2A, 12V/2A, 15V/2A, 20V/2A;
    Qualcomm® QC quick charge power supply: supports QC 3.0/2.0 power, 9V/2A, 12V/1.5A;
    DC power supply: 5 ~ 21V
    DIMENSIONS 85 × 56mm
    RK3568 Quad-Core Processor

    ROCK3 Adopts Quad-Core 64-Bit Cortex-A55 22nm Processor, Frequency Up To 2.0GHz

    GPU, VPU, NPU Co-Processor

    Integrating G52 GPU, Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1,
    Embedded Standalone NPU, 0.8Tops High Performance VPU, Supports 4K 60fps H.265/H.264/VP9 Video Decode And 1080P 60fps H.265/H.264 Video Encode

    Available Options

    Wireless module
    Supports 2.4G WIFI and 4.2 Bluetooth, M.2 slot, based on PCI-SIG PCI Expresss M.2 specification M.2 wireless standard revision

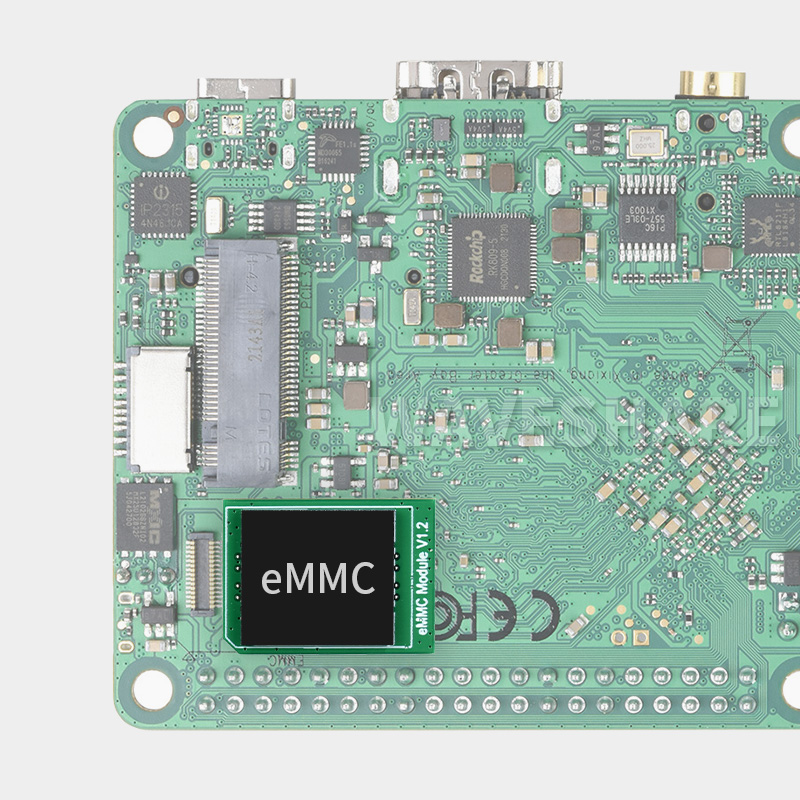

    Storage
    There's no onboard storage on ROCK3, you can choose an external Micro SD card or storage module, available eMMC module options: 16 / 32 / 64 / 128 GB

    What's On Board
    1. Power on/off
      turn on/off the device, allows forced shutdown by holding down the button for 6s
    2. 3-pin Recovery header
      FSPI_CLK <-> GND: disable SPI Nor flash
      RECOVERY <-> GND: enter loader mode
    3. MIPI DSI display port
    4. M.2 E KEY slot
      for connecting wireless module
    5. Power LED indicator
    6. User LED indicator
    7. Power supply
      Type-C power input connector, 5V ~ 21V
    8. HDMI port
      Supports 4k@60Hz video output
    9. MIPI CSI camera port

    1. 3.5 mm standard headphone jack
      supports 24-bit/96KHz audio output
    2. PWM fan header
      for 5V PWM cooling fan
    3. RJ45 Gigabit Ethernet port
    4. Dual USB 3.0 Type-A
    5. Dual USB 2.0 Type-A
    6. PoE header
      external PoE module is required to enable PoE
    7. RK3568 SoC
      22nm quad-core 64-bit processor
    8. MASKROM mode startup
      short it to disable eMMC
    9. LPDDR4-3200 SDRAM memory
      available options: 2GB, 4GB, or 8GB
    10. 40-PIN GPIO header
    1. eMMC storage module socket
      available options: 16/32/64/128 GB eMMC modules
    2. OTG switch
    3. Standard RTC header

    1. M.2 M-KEY slot
      allows connecting M.2 NVME SSD
    2. Micro SD card slot
      for connecting Micro SD card with pre-burnt system image to startup the ROCK3 Model A
    3. SPI FLASH
    40PIN Header Definition
    Ordering Codes
    MODELWIRELESSRAMEMMC FLASH
    ROCK3 1 = Yes
    0 = No
    02 = 2GB
    04 = 4GB
    08 = 8GB
    000 = 0GB (Lite)
    016 = 16GB
    032 = 32GB
    064 = 64GB
    128 = 128GB
    Example: ROCK3104032, ROCK3 computer with wireless module, 4GB RAM, and 32GB eMMC Flash
    ROCK3 1 04 032
    WIRELESSRAMEMMC FLASHPART NUMBER
    - 2GB 0GB (Lite) ROCK3002000
    - 2GB 16GB ROCK3002016
    - 2GB 32GB ROCK3002032
    - 2GB 64GB ROCK3002064
    - 2GB 128GB ROCK3002128
    - 4GB 0GB (Lite) ROCK3004000
    - 4GB 16GB ROCK3004016
    - 4GB 32GB ROCK3004032
    - 4GB 64GB ROCK3004064
    - 4GB 128GB ROCK3004128
    - 8GB 0GB (Lite) ROCK3008000
    - 8GB 16GB ROCK3008016
    - 8GB 32GB ROCK3008032
    - 8GB 64GB ROCK3008064
    - 8GB 128GB ROCK3008128
    Yes 2GB 0GB (Lite) ROCK3102000
    Yes 2GB 16GB ROCK3102016
    Yes 2GB 32GB ROCK3102032
    Yes 2GB 64GB ROCK3102064
    Yes 2GB 128GB ROCK3102128
    Yes 4GB 0GB (Lite) ROCK3104000
    Yes 4GB 16GB ROCK3104016
    Yes 4GB 32GB ROCK3104032
    Yes 4GB 64GB ROCK3104064
    Yes 4GB 128GB ROCK3104128
    Yes 8GB 0GB (Lite) ROCK3108000
    Yes 8GB 16GB ROCK3108016
    Yes 8GB 32GB ROCK3108032
    Yes 8GB 64GB ROCK3108064
    Yes 8GB 128GB ROCK3108128
    Resources & Services

    Balenie Obsahuje / Package Content

    1. ROCK3 Model A x1
    2. Wireless module x1
    3. EMMC Storage module 16GB x1
