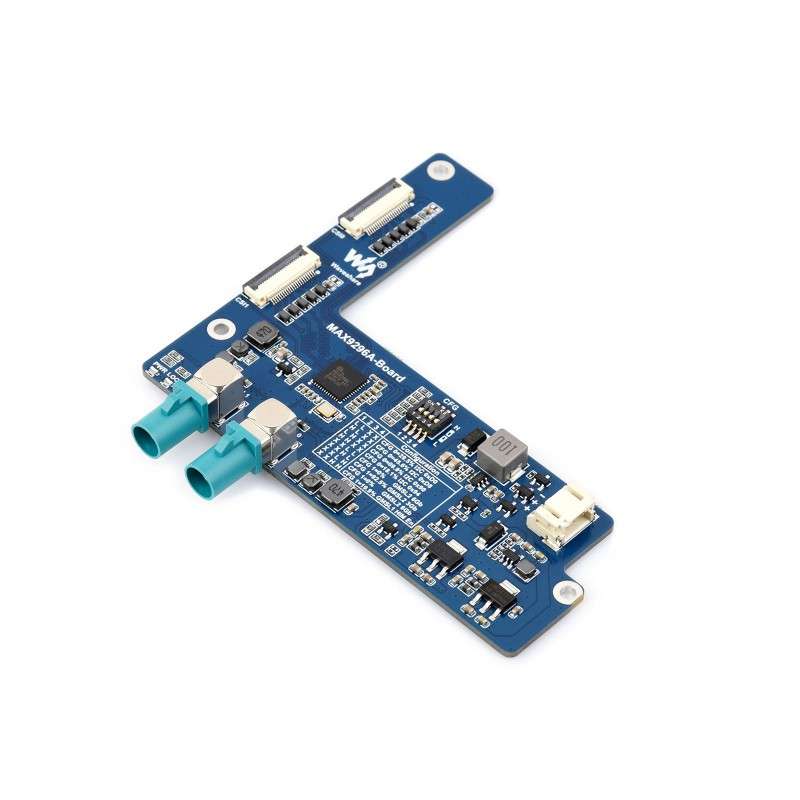

The MAX9296-GMSL-DESER-MODULE is a GMSL camera adapter that allows up to two GMSL cameras to be connected to the host board such as Raspberry Pi 5, Jetson Orin Nano and Jetson Orin NX. Compatible with both GMSL1 and GMSL2 protocol interfaces through software configuration. Adopts MAX9296A chip, specially designed for applications that require high-bandwidth and low-latency video transmission. Suitable for automatic driving, machine vision, intelligent security and other fields.
GMSL (Gigabit Multimedia Serial Link) is a high-speed serial transmission technology designed for high-bandwidth multimedia data transmission, with the advantages of long-distance, low-delay, high anti-interference and simple wiring. It is mainly used in automotive electronics and industrial applications, and is capable of transmitting high-definition video, audio, and data signals over one cable. By using coaxial or twisted-pair cables, GMSL can achieve long-distance signal transmission.

Key features include:

• Supports simultaneous access to two GMSL cameras (ISX031)
• Adopts MAX9296A serializer solution
• Supports Raspberry Pi 5, Jetson Orin Nano, and Jetson Orin NX
