      IMX708-120 Camera Sensor Module, 120° FOV, Autofocus, Raspberry Pi  3 Baseboard (WS-34274)

      IMX708-120 camera sensor module, 120° FOV, supports autofocus, compatible with the Raspberry Pi Camera Module 3 baseboard

      IMX708 camera sensor module

      Compatible with the Raspberry Pi Camera Module 3 baseboard

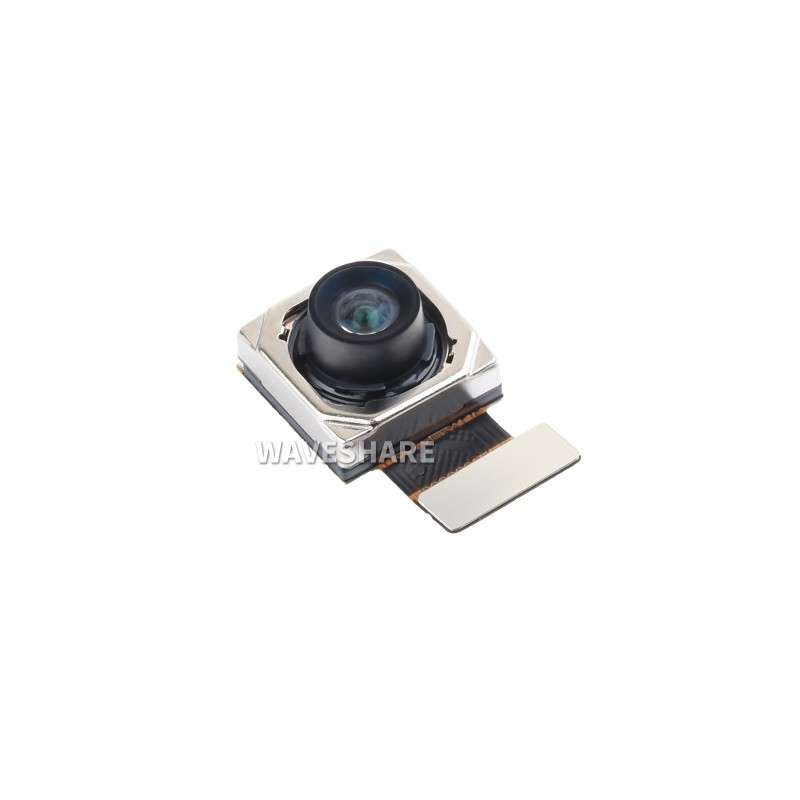

       Raspberry Pi IMX708-120 Camera Module, front view
      features

      The IMX708-120 Camera Module features the same IMX708 sensor as Raspberry Pi Camera Module 3 series cameras. Equipped with 120° wide FOV, providing clear image quality and broad scene coverage, suitable for a variety of shooting scenarios.

      The module is compatible with the Camera Module 3 standard baseboard and also supports custom user-developed baseboards, significantly reducing integration barrier and enabling flexible integration into devices of various shapes and applications, making it suitable for a wider range of customized application scenarios.

      Compatible with the libcamera library, as well as Picamera2 and rpicam-apps based on it, enabling quick development without additional configuration. It also features autofocus function, enabling precise capture of clear images, combining professional performance with ease of use.

      Specifications
      Item Parameter
      Sensor IMX708
      Resolution 11.9MP (4608 × 2592)
      CMOS size 7.4mm (diagonal)
      Focus range 15cm ~ ∞
      Focal length 3.08mm
      Diagonal FOV 120°
      Aperture (F) F2.2
      Distortion <3.5%
      IR Cut Filter built-in
      Autofocus supported
      Operating temperature 0°C ~ 50°C
      Connection Example
      Raspberry Pi IMX708-120 Camera Module, Connection Example

      *for reference only, please refer to the package content for detailed part list.

      outline dimensions
      Raspberry Pi IMX708-120 Camera Module, outline dimensions
      Resources & Services

      Balenie Obsahuje / Package Content

      IMX708-120 Camera Module x1

      IMX708-120 Camera Module
