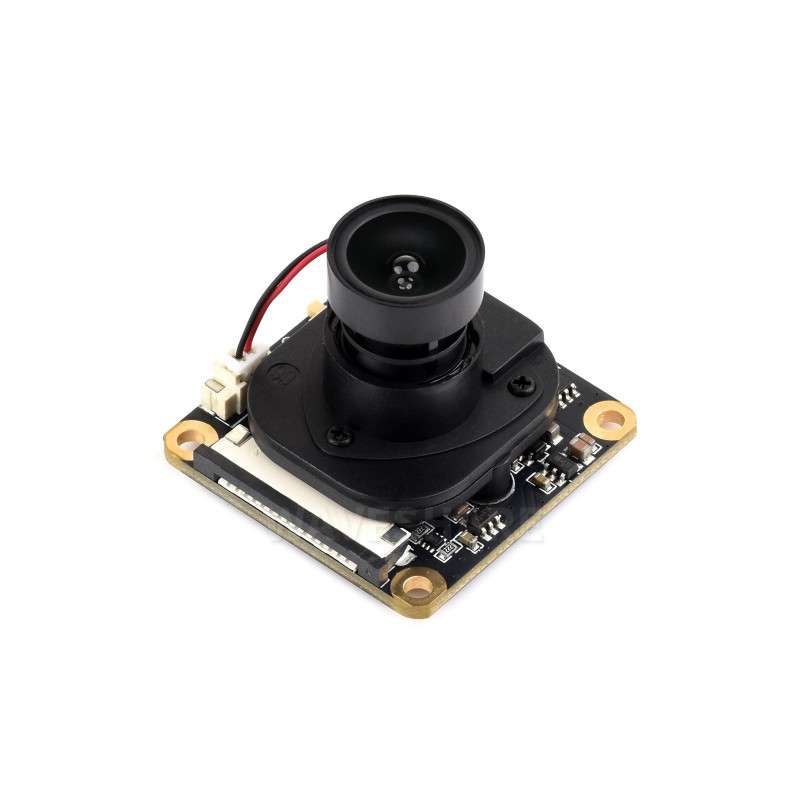

IMX291 2MP IR-CUT Camera, Fixed-Focus, 83° Diagonal FOV, Rolling Shutter, Compatible With Raspberry Pi Series Boards (WS-34494)

IMX291 2MP IR-CUT Camera, Fixed-Focus, 83° Diagonal FOV, Rolling Shutter, Compatible With Raspberry Pi Series Boards

IMX291-83 IR-CUT Camera

2MP | Starlight Camera | IR-CUT  | 83° FOV 

Compatible with Raspberry Pi series boards



Device Support



Raspberry Pi series

Supports Pi 5 / 4B / 3B+ / 3A+ / Zero /
Zero 2 W

for using with CM3 / 3+ / 4 / 5, an extra adapter board is required

Specifications

Sensor	IMX291	CMOS size	1/2.8 inch
PIXELS	2MP (1920 × 1080)	APERTURE	F2.0
FOCAL LENGTH	3.95mm	FIELD OF VIEW	83°
CAMERA TYPE	Color	FOCUSING	Fixed focus
DISTORTION	< 33%	SHUTTER	Rolling shutter

Starlight Camera

Clear Imaging even in Low Light Conditions

Built-in IR-CUT

Correct Color Deviation of Infrared Camera During the Daytime, Better Imaging Effect

Working with Raspberry Pi

Compatible with all Raspberry Pi series boards



* for reference only, the Raspberry Pi 4B, Raspberry Pi 5, CM5, and Raspberry Zero 2 W are NOT included.

outline dimensions

Resources & Services

Wiki: docs.waveshare.com/IMX291-83_IR-CUT_Camera

Balenie Obsahuje / Package Content

1. IMX291-83 IR-CUT Camera x1
2. RPi Zero V1.3 Camera Cable 15cm x1
3. 15PIN FFC cable (opposite) x1
