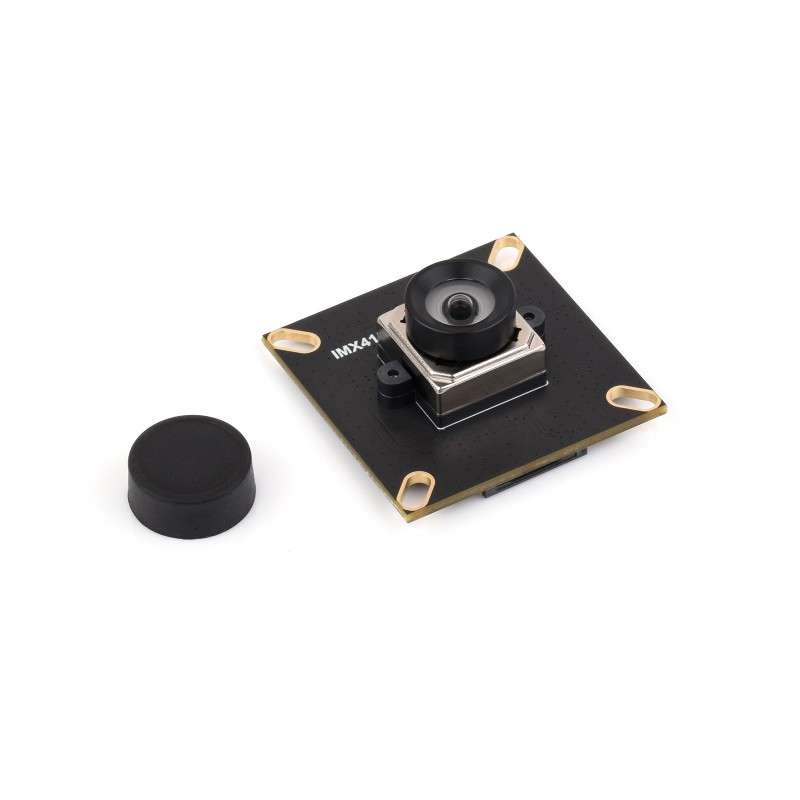

IMX415 8MP MIPI Camera Module, Autofocus, 95.5° D-FOV, Distortion-free, Raspberry Pi 5 / 4B / 3 / Zero (WS-34582)
WS-34582
28,17 €
22.90 € bez DPH
IMX415 8MP MIPI Camera Module, Autofocus, 95.5° D-FOV, Distortion-free, Raspberry Pi 5 / 4B / 3 / Zero (WS-34582)
IMX415 8MP MIPI Camera Module, Autofocus, 95.5° D-FOV, Distortion-free, Raspberry Pi 5 / 4B / 3 / Zero (WS-34582)
IMX415 8MP MIPI Camera Module, Autofocus, 95.5° D-FOV, distortion-free, Supports Raspberry Pi 5 / 4B / 3 / Zero
IMX415 High-resolution autofocus camera
8MP | MIPI Interface | Autofocus | 95.5° D-FOV | distortion-free
Specifications
| Sensor | IMX415 | CMOS Size | 1/2.8″ |
| Camera Type | Color | Recommended Recording Pixels |
Approx. 8.29MP (3840 × 2160) |
| Image Size | Diagonal 6.43mm | Unit Cell Size | 1.45um (H) × 1.45um (V) |
| Aperture | F2.4 | Focal Length | 2.88mm |
| FOV | 95.5° | Distortion | <1% |
| Applications | Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc. | ||
Flexible Autofocus
Take photos smoothly without jamming, flexible and free
* Note: The host device must support autofocus functionality.
Wide field of view
Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle
Distortion-Free
Equipped with distortion-free lens with a distortion rate of less than 1%,
delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2%
are generally considered distortion-free.
Supports the Raspberry Pi series boards
Compatible With Raspberry Pi 5 / Zero Series / Zero 2W Series Boards
Extra FPC Cable Is Required For Raspberry Pi 4B / 3B+ / 3B Series Boards
Connecting with Raspberry Pi 5
Connecting with Raspberry Pi 4B
Connecting with Zero 2 W
Connecting with Zero W
* for reference only, the Raspberry Pi 4B, Raspberry Pi 5, Zero W, Zero 2 W,
and yellow FPC are NOT included.
Outline dimensions
Balenie Obsahuje / Package Content
- IMX415 8MP AF Camera x1
- FFC 22PIN cable (opposite) 200mm x1
