IMX477 IR-CUT 12.3MP Camera (B), Applicable For Raspberry Pi / Jetson / RDK Series Boards (WS-34816)
WS-34816
73,19 €
59.50 € bez DPH
IMX477 IR-CUT 12.3MP Camera (B), Applicable For Raspberry Pi / Jetson / RDK Series Boards (WS-34816)
IMX477 IR-CUT 12.3MP Camera (B), Applicable For Raspberry Pi / Jetson / RDK Series Boards (WS-34816)
IMX477 IR-CUT 12.3MP Camera (B), Applicable For Raspberry Pi / Jetson / RDK Series Boards

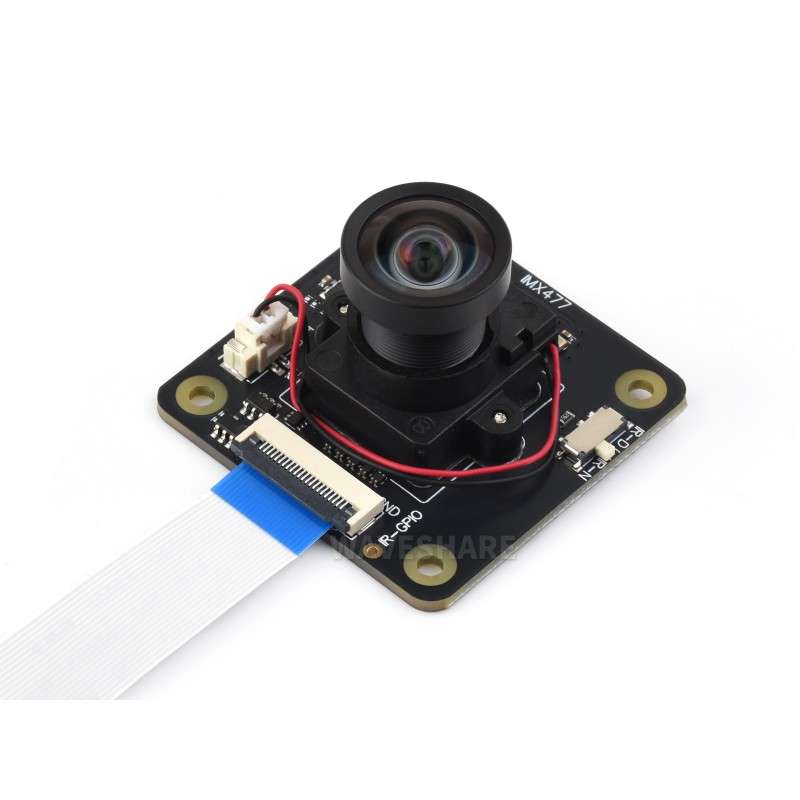

IMX477 IR-CUT camera module
IMX477 sensor, 12.3MP, Applicable for Raspberry Pi / Jetson / RDK Series Boards
Specifications
| Sensor | Model | IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 × 3040 | |
| CMOS diagonal length | 7.9mm | |
| Pixel size | 1.55µm (H) × 1.55µm (V) | |
| Shutter Type | Rolling Shutter | |
| Camera | Aperture (F) | 2.8 |
| Focal length (EFL) | 2.7mm | |
| Field of view (FOV) | 113°(D) | |
| Distortion | <-1.5% | |
| Operating voltage | 3.3V | |
| Applications | suitable for AI applications like facial recognition, road mark recognition, license plate number recognition, and so on. | |
Ultra High Resolution
The IMX477 sensor supports up to 12.3MP resolution, capturing every detail in the picture
Built-in IR-CUT for all-day use
allows the user to switch filters freely according to the usage scenario
* Note: the infrared light is required for night vision function and needs to be purchased separately.
Supports Multiple Boards and Kits
Compatible With Raspberry Pi Series, CM3/3+/4/5 Series, Zero Series, Jetson Series (Requires dedicated driver), and RDK Series Boards
Connecting with Raspberry Pi 4B
Connecting with Raspberry Pi 5
Connecting with CM4 / CM5 IO Board
Connecting with Zero 2 W
Connecting with Jetson Nano Kit
Connecting with Jetson Orin Kit
Connecting with RDK X5
* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Compute Module 4 IO Board, Zero 2 W, Jetson Nano Kit, Jetson Orin Kit and RDK X5 are NOT included.
Outline dimensions
Balenie Obsahuje / Package Content
- IMX477 IR-CUT Camera (B) x1
- 15PIN to 22PIN Cable x1
- 22Pin cable (opposite sides) x1
