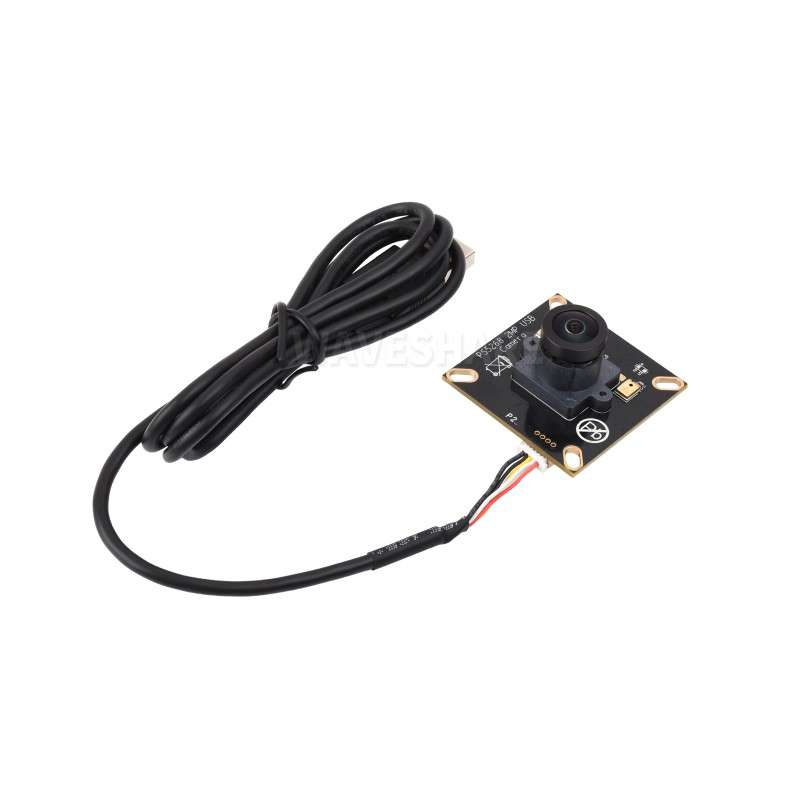

PS5268 2MP M12 Camera Module Type B, USB 2.0 Header, High Dynamic Range, Rolling Shutter, Dual Microphones (WS-35496)
WS-35496
36,78 €
29.90 € bez DPH
PS5268 2MP M12 Camera Module Type B, USB 2.0 Header, High Dynamic Range, Rolling Shutter, Dual Microphones (WS-35496)
PS5268 2MP M12 Camera Module Type B, USB 2.0 Header, High Dynamic Range, Rolling Shutter, Dual Microphones (WS-35496)
PS5268 2MP M12 Camera Module type B, USB 2.0 header, high dynamic range, rolling shutter, onboard dual microphones
2MP M12 Camera Module
PS5268 sensor, USB 2.0 header, High Dynamic Range
Specifications
| Pixels | 2MP | |
|---|---|---|
| sensor chip | PS5268 | |
| Interface | USB 2.0 | |
| Camera | Sensor size | 1/2.7inch |
| Aperture (F) | 2.2 | |
| Focal length (EFL) | 2.28mm | |
| Field of View (FOV) | 187.4°(D) × 156.7°(H) × 93.4°(V) | |
| Focusing | Fixed-focus | |
| Distortion | <-31% | |
| Dynamic Range | 85dB | |
| IR Filter | 650nm filter | |
| Image | Format support | MJPG, YUY2 |
| Static image resolution | 1920 × 1080 | |
| Video recording | MJPG: 30FPS 640 × 360 30FPS 640 × 480 30FPS 960 × 544 30FPS 1280 × 720 30FPS 1920 × 1080 |
|
| YUY2: 10FPS 640 × 360 10FPS 640 × 480 5FPS 960 × 544 5FPS 1280 × 720 5FPS 1920 × 1080 |
||
| Shutter | Rolling shutter | |
| Audio | Onboard dual microphones | |
| Operating Voltage | 5V ± 5% | |
| Dimensions | 38.00 × 38.00 × 19.20 (mm) | |
high dynamic range and better
low-light sensitivity
low-light sensitivity
85dB high dynamic range (HDR), ensuring the capture of rich image details in both high and low light environments
* the above picture is the HDR effect simulation, please refer to the actual imaging effect
Plug and Play, Easy Connection
Onboard USB 2.0 header, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
* for reference only, please refer to the package content for the detailed part list.
Outline dimensions
Balenie Obsahuje / Package Content
- PS5268 2MP USB Camera (B) x1
- USB Type-A male port to SH1.0 5PIN cable 100cm x1
