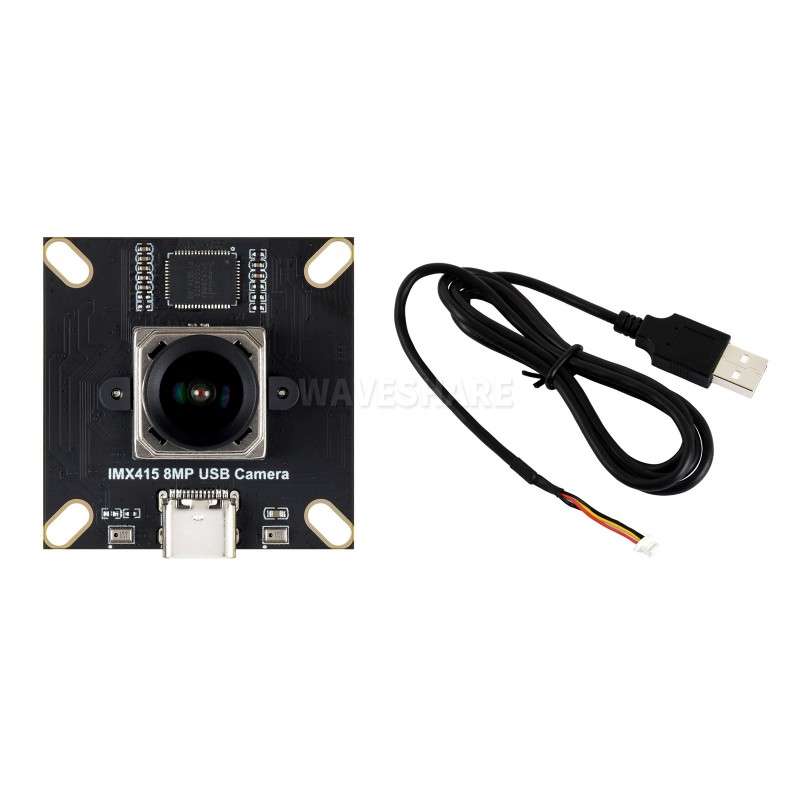

IMX415 8MP High-resolution USB 2.0 Camera Module Type B, IMX415, Dual Microphones, 93.5° Wide Lens -0.4% (WS-35834)

• Part No.:IMX415 8MP USB Camera (B)

IMX415 8MP High-resolution USB Camera Module Type B, IMX415 Sensor Chip, USB2.0 Port, onboard dual microphones, 93.5° wide angle lens, - 0.4% Distortion

IMX415 8MP High-resolution
USB camera module (B)

8MP | USB2.0 port | 93.5° DFoV | dual microphones

Specifications

Pixels		8MP
sensor chip		IMX415
Interface		USB2.0 Type-C
Camera	Sensor size	1/2.8inch
	F-number	2.2
	Focal length (EFL)	3.3mm
	Field of View (FoV)	93.5°(D) × 85.2°(H) × 55.5°(V)
	TV Distortion	−0.4%
	Focus Mode	Auto-focus
Image	Format support	MJPG
	Static image resolution	3840 × 2160
	Video recording	30FPS 3840 × 2160 30FPS 2880 × 2160 30FPS 2048 × 1536 60FPS 1920 × 1080
Audio		onboard dual microphones
Operating Voltage		5V ± 5%
Operating temperature		0°C ~ 50°C
Dimensions		38.00 × 38.00 (mm)

Connecting with USB cable

Connecting to Raspberry Pi 5

Connecting to Jetson Orin kit

Connecting to RDK kit

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 kit are NOT included

Wide field of view

Onboard 93.5° wide angle lens, provides a wider picture range and viewing angle

Distortion-Free

Equipped with distortion-free lens with a distortion rate of -0.4%, delivering undistorted imaging and more accurate reproduction of real-world scenes

* Note: In the industry, lens with distortion rate less than 2% is generally considered distortion-free.

Pinout Definition

Onboard two types of connectors

Connecting via USB Type-C port

Connecting via 1.0mm pitch 5PIN header

Outline dimensions

Resources & Services

Wiki: docs.waveshare.com/IMX415-8MP-USB-Camera-B

Balenie Obsahuje / Package Content

1. IMX415 8MP USB Camera (B) x1
2. USB Type-A male port to SH1.0 5PIN cable ~100cm x1
