OV5640 5MP USB Camera, 1080P Video Recording, Available In AF/FF (WS-21834) FF Fixed-Focus

OV5640 5MP USB Camera, 1080P Video Recording, Available in AF/FF

5MP camera module

OV5640 sensor, USB port

Version options

OV5640 5MP USB Camera (B)
Auto-Focus

OV5640 5MP USB Camera (C)
Fixed-Focus

Specifications

Pixels	5MP
Sensor	OV5640
Interface	USB 2.0
Camera	Sensor size	1/4 inch
	Aperture (F)	2.8
	Focal length (EFL)	3.29 mm
	Field of view (FOV)	68°
	Distortion	< 1%
	Focusing	(B): AF Auto-Focus (C): FF Fixed-Focus
Image	Format support	MJPG, YUV422
	Static image resolution	2592 × 1944
	Video recording	15 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720
Operating voltage	5V ± 5%
Camera size	8.5 × 8.5 mm
Module size	9 × 62 mm
Note	Select OV5640 5MP USB Camera (B) for Auto-focus, Select OV5640 5MP USB Camera (C) for Fixed-focus, Except for the focus mechanism, the two cameras are exactly the same.

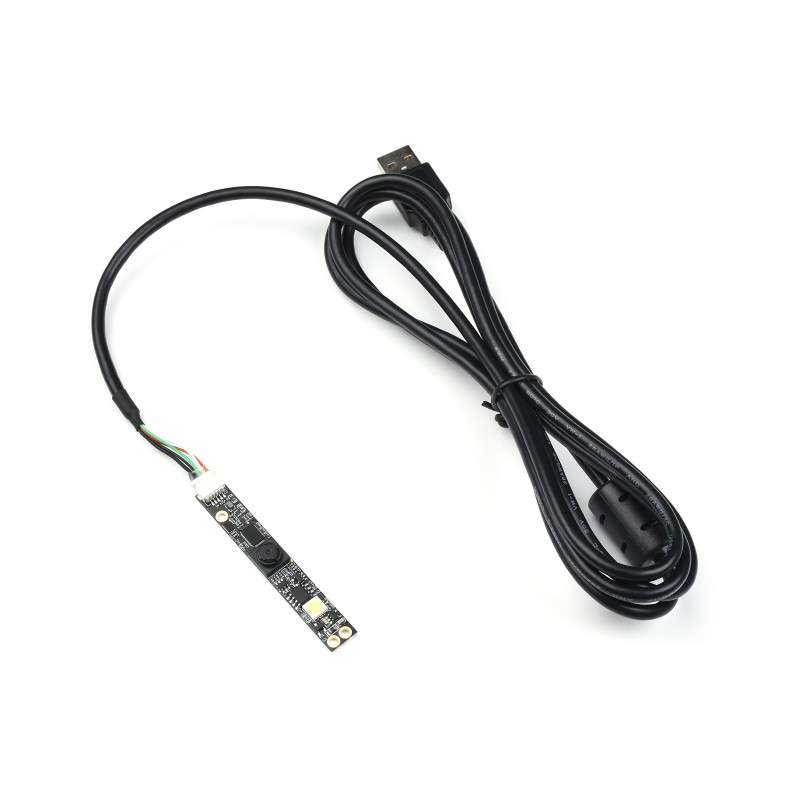

Connecting with USB cable

Outline dimensions

Resources & Services

Wiki: OV5640_5MP_USB_Camera

Balenie Obsahuje / Package Content

OV5640 5MP USB Camera (C)

OV5640 5MP USB Camera (C) x1
