10.2inch e-Paper display (G), E-ink display, 960x640, Red/Yellow/Black/White, SPI (WS-31124) with driver HAT
WS-31124
141,33 €
114.90 € bez DPH
10.2inch e-Paper display (G), E-ink display, 960x640, Red/Yellow/Black/White, SPI (WS-31124) with driver HAT
10.2inch e-Paper display (G), E-ink display, 960x640, Red/Yellow/Black/White, SPI (WS-31124) with driver HAT
- with driver HAT

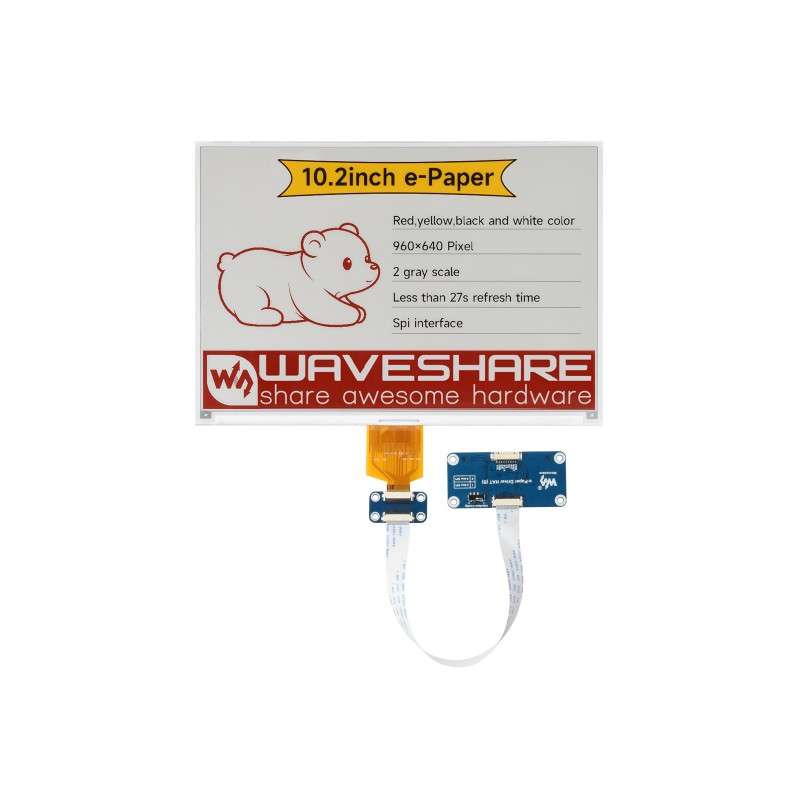

10.2inch e-Paper display (G), e-ink display, 960x640, Red/Yellow/Black/White, SPI Interface
10.2″ e-Paper (G)
low power, wide viewing angle, paper-like effect without electricity
Ideal for price tags, shelf labels, industrial instruments...
Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list
- Size
10.2″ - Resolution
960×640 - Viewing Angle
>170° - Display Color
Red/Yellow/Black/White - Grey Scale
2
- Size
- Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective
Version Options
10.2inch e-Paper (G)
raw display, without driver board
10.2inch e-Paper HAT (G)
with e-Paper Driver HAT
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32)
- Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards and Jetson Nano
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / Arduino / STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| operating voltage | Raw display: 3.3V | display color | Red/Yellow/Black/White |
|---|---|---|---|
| with driver board: 3.3V/5V | |||
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | Raw display: 224.00 × 157.00 × 1.00 (mm) | full refresh time | 27s |
| driver board: 65.00 × 30.50 (mm) | |||
| display size | 215.52 × 143.68 (mm) | refresh power | <100mW |
| DOT PITCH | 0.2245 × 0.2245 (mm) | standby current | <0.01uA (almost none) |
| RESOLUTION | 960 × 640 pixels | viewing angle | >170° |
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Standard Raspberry Pi 40PIN GPIO header
compatible with Raspberry Pi series boards and Jetson Nano
Connecting with Raspberry Pi Zero W
Connecting with Jetson Nano
Raspberry Pi, Jetson Nano in the photo are NOT included.
Optional for e-Paper Driver HAT
Onboard SPI Control Interface, For Use With Controller Boards Like Arduino / Jetson Nano / STM32 / Raspberry Pi
| VCC | 3.3V/5V |
|---|---|
| GND | Ground |
| DIN | SPI MOSI pin |
| SCLK | SPI SCK pin |
| CS | SPI chip selection, low active |
| DC | Data / Command selection (high for data, low for command) |
| RST | External reset, low active |
| BUSY | Busy status output |
| PWR | Power control pin |
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
Product show
* for reference only, Please refer to the Package Content for detailed part list
Outline dimensions
Balenie Obsahuje / Package Content
10.2inch e-Paper HAT (G)
- 10.2inch e-Paper HAT (G) x1
- Screws pack x1
- MX1.25 9PIN cable x1
WS-31124
