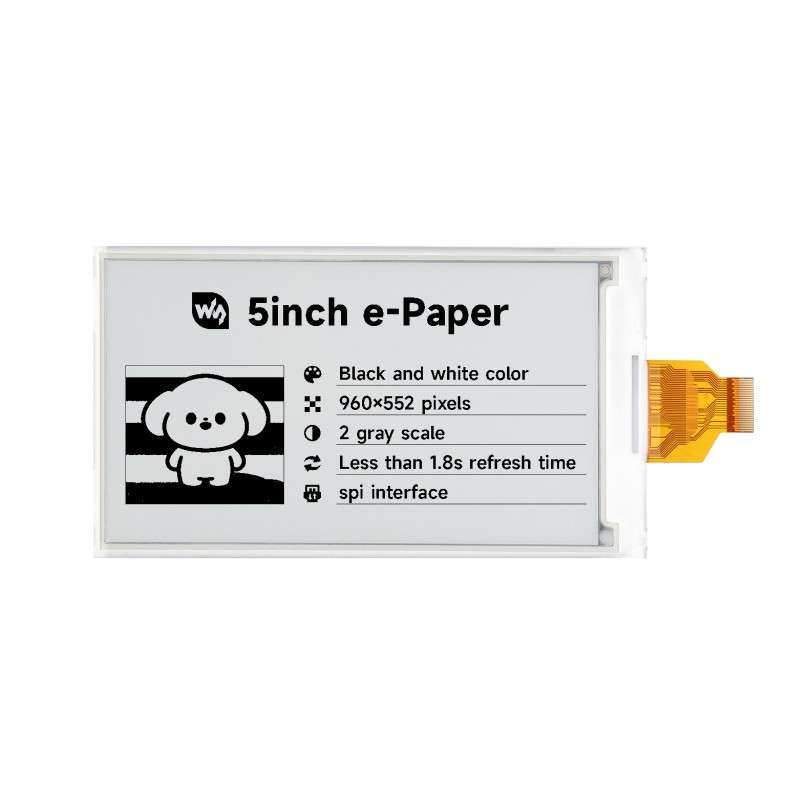

5inch e-Paper display, e-ink display, 960 × 552, Black / White, SPI Interface (WS-34057) raw display only

5inch e-Paper display, e-ink display, 960 × 552, Black / White, SPI Interface (WS-34057) raw display only

Name: 5inch e-Paper display, e-ink display, 960 × 552, Black / White, SPI Interface (WS-34057) raw display only
Brand: Waveshare Electronics
SKU: WS-34057
Price: 31.86 EUR
Availability: BackOrder

Kód WS-34057

31,86 €

25.90 € bez DPH

Popis
Detaily produktu

5inch e-Paper display, e-ink display, 960×552, Black / White, SPI Interface (WS-34057) raw display only

5inch e-Paper display, e-ink display, 960 × 552, Black / White, SPI Interface

5″ e-Paper display

low power, wide viewing angle, paper-like effect without electricity

Ideal for price tags, shelf labels, industrial instruments...

Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list

- Size5″
- Resolution960×552
- Viewing Angle>170°
- Display ColorBlack/White
- Grey Scale2

CommunicationSPI
Display PanelE-paper
ExperiencePaper-like
EnvironmentAmbient Light Required
Display TypePassively Reflective

Version Options

5inch e-Paper
raw display, without driver board

5inch e-Paper HAT
with e-Paper Driver HAT

Features at a glance

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Comes with online development resources and manual (e-Paper Driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / STM32 / ESP32)
Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Arduino / STM32 / ESP32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

Specifications

operating voltage	Raw display: 3.3V	display color	Black/White
operating voltage	with driver HAT: 3.3V/5V	display color	Black/White
interface	3-wire SPI, 4-wire SPI	grey scale	2
outline dimensions	Raw display: 126.38 × 71.19 × 0.79 (mm)	partial refresh time	0.7s
outline dimensions	e-Paper Driver HAT: 30.50 × 65.00 (mm)	full refresh time	1.8s
display size	110.59 × 62.65 (mm)	refresh power	<50mW
DOT PITCH	0.1833 × 0.1833 (mm)	standby current	<0.01uA (almost none)
RESOLUTION	960 × 552 pixels	viewing angle	>170°

Advantages of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

Optional for e-Paper Driver HAT

Onboard SPI Control Interface, For Use With Controller Boards Like Raspberry Pi / Arduino / STM32 / ESP32

5inch e-Paper Driver HAT front view, interface introduction

PWR	Power control pin
BUSY	Busy status output
RST	External reset, low active
DC	Data / Command selection (high for data, low for command)
CS	SPI chip selection, low active
SCLK	SPI CLK pin
DIN	SPI MOSI pin
GND	Ground
VCC	3.3V/5V
