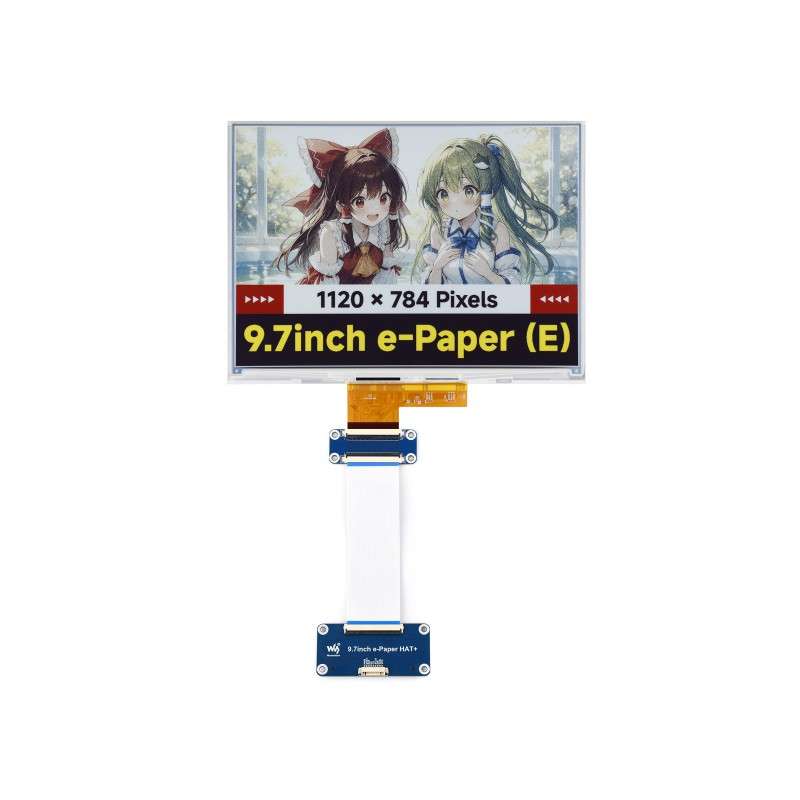

9.7inch E Ink Spectra 6 (E6) Full Color Display, 1120×784, SPI, HAT+ Standard Driver HAT, E-ink Display (WS-35923)
WS-35923
143,91 €
117.00 € bez DPH
9.7inch E Ink Spectra 6 (E6) Full Color Display, 1120×784, SPI, HAT+ Standard Driver HAT, E-ink Display (WS-35923)
9.7inch E Ink Spectra 6 (E6) Full Color Display, 1120×784, SPI, HAT+ Standard Driver HAT, E-ink Display (WS-35923)
- Part No.:9.7inch e-Paper HAT+ (E)
- with driver HAT
9.7inch E Ink Spectra 6 (E6) Full Color Display, 1120×784 Pixels, SPI Communication Interface, Optional For HAT+ Standard Driver HAT, E-ink Display
9.7″ full color e-Paper display
low power, wide viewing angle, paper-like effect without electricity
Ideal for shelf labels, industrial instruments...
Note: the e-Paper Driver HAT is optional, please refer to the Package Content for detailed part list
- Size
9.7″ - Resolution
1120×784 - Viewing Angle
>170° - Display Color
E6 full color - Grey Scale
2
- Size
- Communication
SPI - Display Panel
E-paper - Experience
Paper-like - Environment
Ambient Light Required - Display Type
Passively Reflective
Version Options
9.7inch e-Paper (E)
Raw display, without driver board
9.7inch e-Paper HAT+ (E)
With e-Paper Driver HAT
Features at a glance
- Adopts E Ink Spectra 6 (E6) technology, featuring high contrast and high color saturation
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Comes with online development resources and manual (e-Paper driver HAT circuit diagram, examples for Raspberry Pi / Jetson Nano / Arduino / ESP32 / STM32)
- Optional for e-Paper Driver HAT:
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi and Jetson Nano series boards
- Adopts Raspberry Pi HAT+ standard to improve interoperability, helping the users to design and develop faster, easy to use with other peripherals and extend more functions for Raspberry Pi
- Adapting SPI interface for connecting with controller boards like Raspberry Pi / Jetson Nano / Arduino / ESP32 / STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
Specifications
| operating voltage | Raw display: 3.3V | display color | E6 full color (E Ink Spectra 6) |
|---|---|---|---|
| with Driver HAT: 3.3V/5V | |||
| interface | 3-wire SPI, 4-wire SPI | grey scale | 2 |
| outline dimensions | Raw display: 210.8 × 154.9 × 0.74mm | full refresh time | 30s |
| e-Paper driver HAT: 65.00 × 30.50mm | |||
| display size | 201.60 × 141.12mm | total refresh power | <0.6W |
| DOT PITCH | 0.18 × 0.18mm | standby current | <0.01uA (almost none) |
| RESOLUTION | 1120 × 784 pixels | viewing angle | >170° |
E Ink Spectra 6 technology
E Ink Spectra 6 is a newly launched full color e-paper technology that brings fresh vitality to the e-paper industry with excellent color performance, high resolution and high contrast.
Adopts red, yellow, and blue as the primary colors, it offers more possibilities for e-paper color display, featuring high contrast and high saturation to make images clearer and colors brighter.
More advanced performance
The resolution is up to 200ppi, features a wider range of operating temperature and faster screen refresh time. And it is more power-saving, aligning with ESG trends for energy efficiency and carbon reduction
Innovative microcup full color technology platform
Using white, red, yellow, and blue charged particles to produce six primary colors, and employing dithering technology to create vivid and saturated full color images.
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Optional for e-Paper Driver HAT
Standard Raspberry Pi 40PIN GPIO header, suitable for Raspberry Pi and Jetson Nano series boards
* for reference only, the Raspberry Pi is NOT included.
Onboard SPI control interface
on e-Paper Driver HAT
on e-Paper Driver HAT
for use with controller boards like Raspberry Pi / Jetson Nano / Arduino /
ESP32 / STM32
| PWR | Power control pin |
|---|---|
| BUSY | Busy status output |
| RST | External reset, low active |
| DC | Data / Command selection (high for data, low for command) |
| CS | SPI chip selection (low active) |
| SCLK | SPI SCLK pin |
| DIN | SPI MOSI pin |
| GND | Ground |
| VCC | 3.3V/5V |
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
Outline dimensions
Balenie Obsahuje / Package Content
9.7inch e-Paper HAT+ (E)
- 9.7inch e-Paper HAT+ (E) x1
- MX1.25 9PIN cable ~20cm x1
- Screws pack x1
WS-35923
