This product is designed by Waveshare with onboard 2.8inch LCD display, 6-axis sensor, temperature and humidity sensor, and TF card slot, providing the hardware foundation for display, sensing, voice, and multimedia storage. With these hardware resources, it supports fun interactive mini-games and voice wake-up. It allows access to online AI large model platforms, enabling intelligent voice interaction and continuous upgrades. It comes pre-installed functions such as AI conversation, audio playback, a gravity ball game, 2048 game, and weather. It can be used directly as an AI chatting toy, while also supporting customization and secondary development.

• Equipped with the ESP32-C5-WROOM-1 series module, featuring a RISC-V 32-bit processor, up to 240MHz main frequency
• Integrated with 384KB Static RAM, 320KB ROM, 8MB PSRAM, and 32MB Flash, meeting the requirements for program execution, graphical interface, and data storage
• Integrated 2.4GHz and 5GHz dual-band Wi-Fi, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communications, with outstanding RF performance
• Onboard Batt recharge management module, with reserved 3.7V MX1.25 Lithium Batt header for connecting external Batt
• Type-C port, improving device compatibility, easier to use

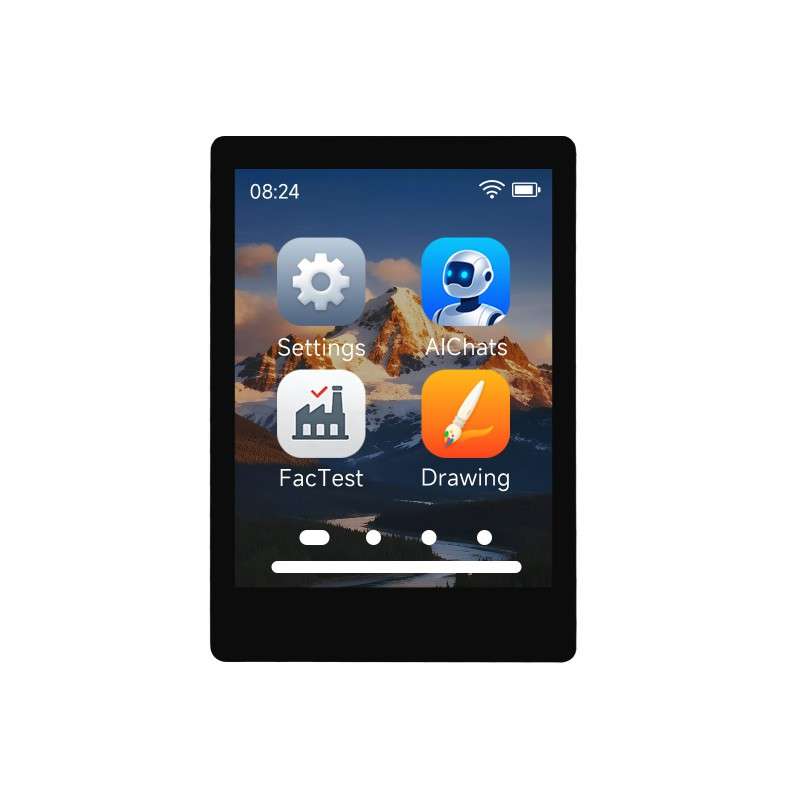

• Onboard 2.8inch LCD display, 240 × 320 resolution, 262K color
• Supports capacitive touch controlled via I2C interface, with interrupt support
• Adapting UART, I2C and some IO interfaces, integrates full-speed USB port
• Onboard QMI8658 6-axis sensor, RTC sensor, SHTC3 temperature and humidity sensor, TF card slot, etc.
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
• Onboard ES8311 audio codec chip, NS4150B power amplifier chip, microphone, and speaker
• Supports ESP-IDF, Arduino, and other development environments, with rich resources for quick and easy development
