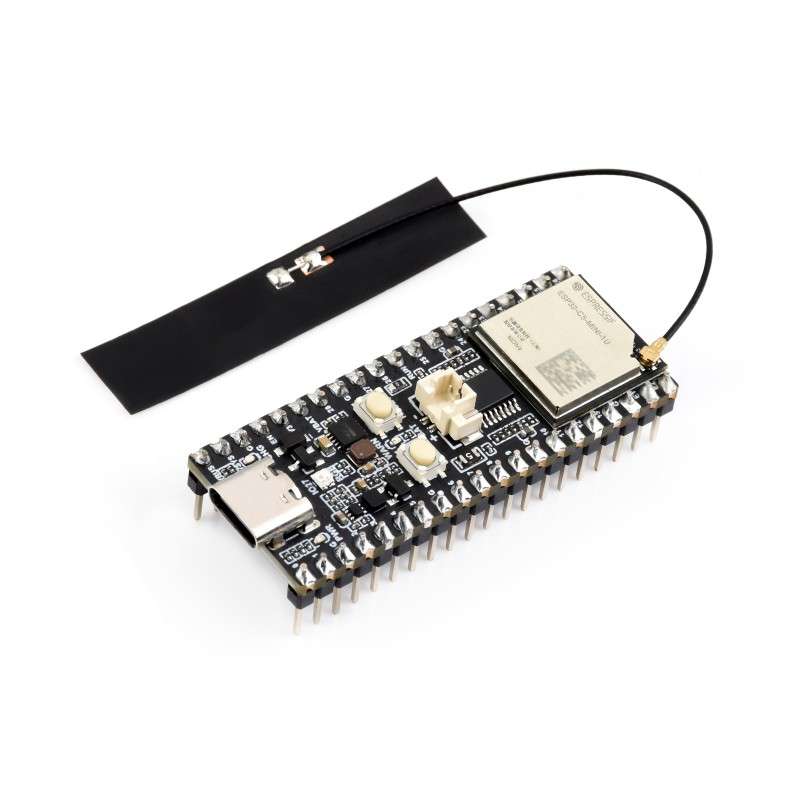

The ESP32-C5-Pico is a compact, entry-level RISC-V microcontroller development board integrating 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread). It is compatible in size and interfaces with most Raspberry Pi Pico HATs, making it easy to expand. Suitable for smart home, industrial automation, healthcare, consumer electronics and other applications.

Adopts ESP32-C5-MINI-1 series module, which is equipped with a RISC-V 32-bit single-core processor, up to 240MHz main frequency, built-in 320KB ROM, 384KB HP Static RAM, 16KB LP Static RAM and 4MB Flash. Onboard MP1605GTF-Z DC-DC buck-boost chip provides a stable 3.3V output with a load current of up to 2A. Also integrates ETA6098 power management circuit, supporting Lithium Batt power supply, charging status indication, and Batt voltage monitoring.

You can choose ESP-IDF, Arduino or other development environments in software so that you can easily and quickly get started and apply it to the product.

Key features include:

• Adopts ESP32-C5-MINI-1 series module with RISC-V 32-bit single-core processor, up to 240MHz main frequency
• Integrated 320KB ROM, 384KB HP Static RAM, 16KB LP Static RAM and 4MB Flash
• Integrated 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE) and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
• Onboard USB Type-C port, easier to use, supporting convenient power supply and development debugging
• Onboard MP1605GTF-Z high-efficiency DC-DC buck-boost chip with a load current of up to 2A
• Onboard ETA6098 power management circuit, supporting Lithium Batt power supply, charging status indication, and Batt voltage monitoring
• Adapting multiple GPIO pins and expanding 6 × IO pins via TCA9554 for connecting more peripherals
• Rich peripheral interfaces including USB, UART, I2C, SPI, ADC, PWM and more for flexible function expansion
• Castellated module allows soldering directly to carrier boards
• Supports multiple low-power operating states, adjustable balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
• Supports most of the Raspberry Pi Pico expansion board ecology, suitable for artificial intelligence IoT application development
