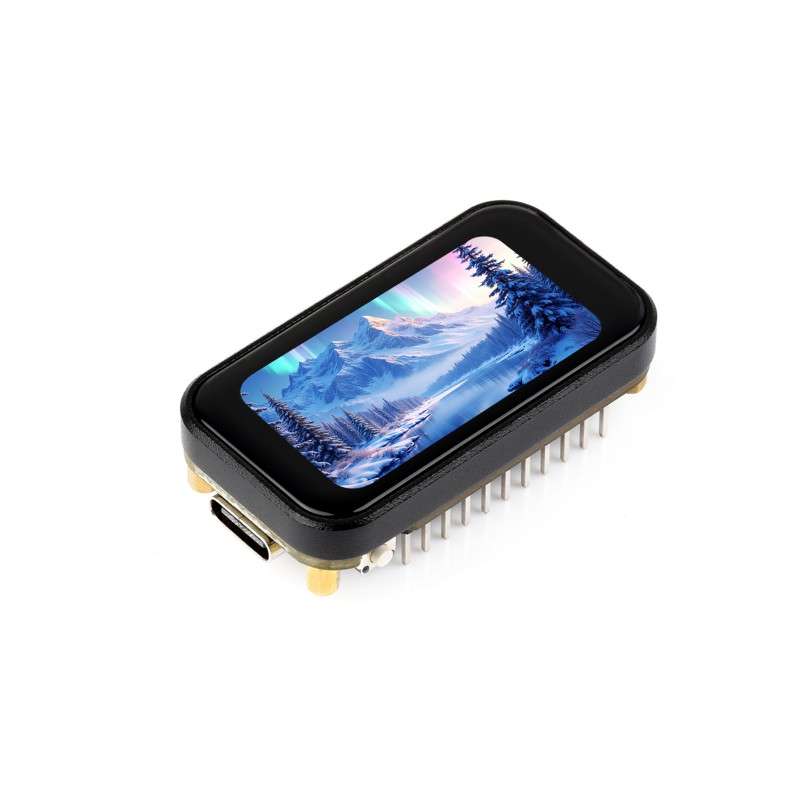

ESP32-S3 1.47inch Touch Display Dev.Board, 172×320 262K Display Color, 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 (WS-31199)
WS-31199
18,31 €
14.89 € bez DPH
ESP32-S3 1.47inch Touch Display Dev.Board, 172×320 262K Display Color, 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 (WS-31199)
ESP32-S3 1.47inch Touch Display Dev.Board, 172×320 262K Display Color, 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 (WS-31199)
ESP32-S3 1.47inch Touch Display Development Board, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor
ESP32-S3-Touch-LCD-1.47
Onboard 1.47inch IPS touch display, can smoothly run GUI programs such as LVGL
version options
ESP32-S3-Touch-LCD-1.47
Standard version
ESP32-S3-Touch-LCD-1.47-M
With pre-soldered header (black)
Features
ESP32-S3-Touch-LCD-1.47 uses ESP32-S3R8 chip with 2.4GHz WiFi and Bluetooth BLE 5 support, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL.
- Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
- Onboard 1.47inch capacitive touch LCD display, 172×320 resolution, 262K color
- Adapting multiple IO interfaces, supports full-speed USB standard
- Onboard TF card slot for external TF card storage of pictures or files
- Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
LCD Specifications
| DISPLAY SIZE | 1.47inch | Resolution | 172 × 320 pixels |
|---|---|---|---|
| Display Driver | JD9853 | Touch Driver | AXS5106L |
| Display Interface | 4-wire SPI | Touch Interface | I2C |
| DISPLAY PANEL | IPS | Touch Type | Capacitive |
ESP32-S3 suitable for AIoT applications
Powered by a high-performance 32-bit LX7 Dual-core processor, the main frequency is up to 240 MHz, Powerful AI Computing Capability & Reliable security features
Wi-Fi and BLE 5 support
ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Application Scenarios
Pin Definition
Supports the expansion of multiple peripherals via GPIO header
What's On Board
- ESP32-S3R8
- Onboard ceramic antenna
- 16MB Flash
- ME6217C33M5G
Low dropout regulator, 800mA output (Max.)
- ETA6098
- TF card slot
- RESET button
- BOOT button
- Type-C interface
Outline dimensions
Balenie Obsahuje / Package Content
ESP32-S3-Touch-LCD-1.47-M
ESP32-S3-Touch-LCD-1.47 with pre-soldered header × 1
WS-31199
