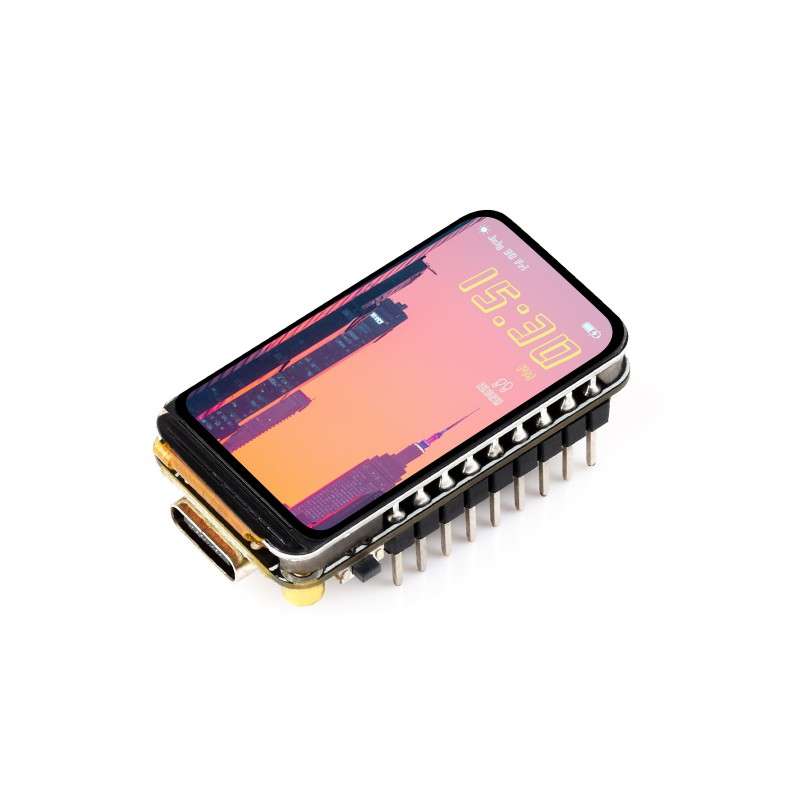

ESP32-S3 1.47inch LCD display Dev.Board Type B, 172×320 Wi-Fi/BLE5 (WS-31031)
ESP32-S3 1.47inch LCD display Development Board Type B, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor, ESP32 With Display
Onboard TF card slot, 6-Axis IMU, and multiple peripheral interfaces
* for reference only, please refer to the actual display effect
ESP32-S3-LCD-1.47B
Standard version
ESP32-S3-LCD-1.47B-M
With pre-soldered header (black)
ESP32-S3-LCD-1.47B is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.
DISPLAY SIZE | 1.47inch | Resolution | 172 × 320 pixels |
---|---|---|---|
Display Driver | ST7789 | Color | 262K |
Display Interface | 3-wire SPI | DISPLAY PANEL | IPS |
Powered by a high-performance 32-bit LX7 Dual-core processor, the main frequency is up to 240 MHz, with Powerful AI Computing Capability & Reliable security
ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh
Supports the expansion of multiple peripherals via GPIO header
Balenie Obsahuje / Package Content
ESP32-S3-LCD-1.47B with pre-soldered header × 1
