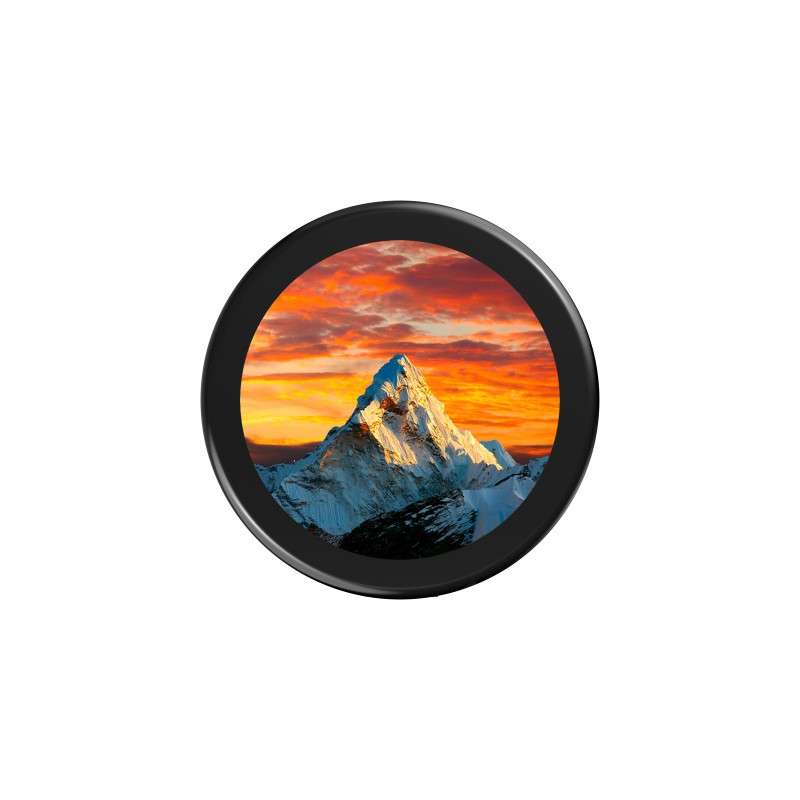

ESP32-C6 1.43inch AMOLED Round Touch Display Development Board, 160MHz RISC-V Processor, 466×466 Pixels, QSPI Interface, Onboard Dual Digital Microphone Array, ESP32 With Display
ESP32-C6-Touch-AMOLED-1.43
Embedded with CO5300 Display Driver and FT6146 Capacitive Touch Chip
Version Options
ESP32-C6-Touch-AMOLED-1.43
Standard version, without case
ESP32-C6-Touch-AMOLED-1.43-B
with protective case
Features
The ESP32-C6-Touch-AMOLED-1.43 is a high-performance, highly integrated MCU board designed by Waveshare, integrates high-capacity Flash. Onboard 1.43inch AMOLED capacitive touch display, highly integrated RTC chip, 6-axis IMU, TF card slot, low power audio encoding and decoding chips, dual MIC circuit, Lithium battery header, and so on. Reserved USB, UART, I2C, and GPIO interfaces for flexible expansion, which makes it easy for you to develop and integrate into the products quickly.
- Equipped with ESP32-C6 high-performance 32-bit RISC-V processor with clock speed up to 160 MHz
- Integrated WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication, with superior RF performance
- Built-in 512KB HP SRAM, 16KB LP SRAM, 320KB ROM and 16MB Flash memory
- Onboard 1.43inch AMOLED capacitive touch display for clear color picture display, 466 × 466 resolution, 16.7M color
- Built-in CO5300 display driver and FT6146 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources
- Equipped with dual digital microphone array, supporting richer voice interaction functions, suitable for accurate speech recognition and near-field / far-field voice wake-up applications
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip for RTC functionality requirement
- Onboard PWR and BOOT programmable buttons for easy custom function development
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
- Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
- Onboard UART and I2C SH1.0 4PIN connectors, reserved two 2 × 4PIN 2.54mm pitch headers
- Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
- Optional for CNC metal case, with clear and colorful label on the back, nice looking and easy to carry
AMOLED parameters
| Display Panel | AMOLED | Display Size | 1.43 inch |
|---|---|---|---|
| Resolution | 466 × 466 pixels | Display Colors | 16.7M |
| Brightness | 350 cd/㎡ | Contrast Ratio | 60000:1 |
| Communication Interface | QSPI | Driver IC | CO5300 |
| Touch | Supported | Touch IC | FT6146 |
Small Size, Touch More Possibilities
Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operation
Adopts AMOLED screen
The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images
178° wide viewing angle
Excellent Display Performance, 16.7M color, wide viewing angle
Onboard audio encoding and decoding chips
Supports high-quality audio processing, providing clear and high-quality audio input and output
Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc.
Supports ESP-IDF, Arduino IDE
Comprehensive SDK, dev resources, tutorials to help you easily get started
ESP32-C6 suitable for AIoT applications
Equipped with a high-performance 32-bit RISC-V processor and a low-power 32-bit RISC-V processor
WIFI 6 and BLE 5 support
Supports WiFi 6, Bluetooth 5 and IEEE 802.15.4 (Zigbee 3.0 and Thread)
Its Bluetooth Low Energy Subsystem Supports Bluetooth 5 (LE) And Bluetooth Mesh
What's On Board
- ESP32-C6
RISC-V 32-bit single-core processor, up to 160MHz operating frequency, with 2.4GHz Wi-Fi 6 and BLE 5 support - Onboard antenna
Supports 2.4 GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) - ES7210 ADC audio decoding chip
High-performance and low-power audio ADC, supporting multi-channel microphone input - MX1.25 2PIN Lithium battery header
for 3.7V Lithium battery, supports charging and discharging - MX1.25 2PIN speaker header
Audiot signal output, supports connecting external speakers - Dual microphones
Dual digital microphone array, supporting richer voice interaction functions - SH1.0 4PIN I2C header
Standard I2C bus interface for easy expansion with sensors and other devices - SH1.0 4PIN UART header
for debugging or data communication with other modules - PWR button
for power supply ON/OFF when powered by Lithium battery, driver required
- BOOT button
Press and hold the BOOT button, then power up again to enter download mode - PCF85063
RTC chip - Two 2 × 4PIN headers (2.54mm pitch)
for external module expansion - Type-C port
for program burning and log printing - W25Q128JVSI
16MB Flash - ES8311 DAC audio encoding chip
High-performance and low-power audio DAC - QMI8658
6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer - TCA9554PWR
8-bit I2C GPIO expander chip - TF card slot
Supports FAT32-formatted TF cards for data expansion
outline dimensions
without case
with protective case
Balenie Obsahuje / Package Content
ESP32-C6-Touch-AMOLED-1.43
- ESP32-C6-Touch-AMOLED-1.43 x1
- 1217 8Ω 2W cavity speaker ×1
- SH1.0 4PIN cable ~100mm ×2
