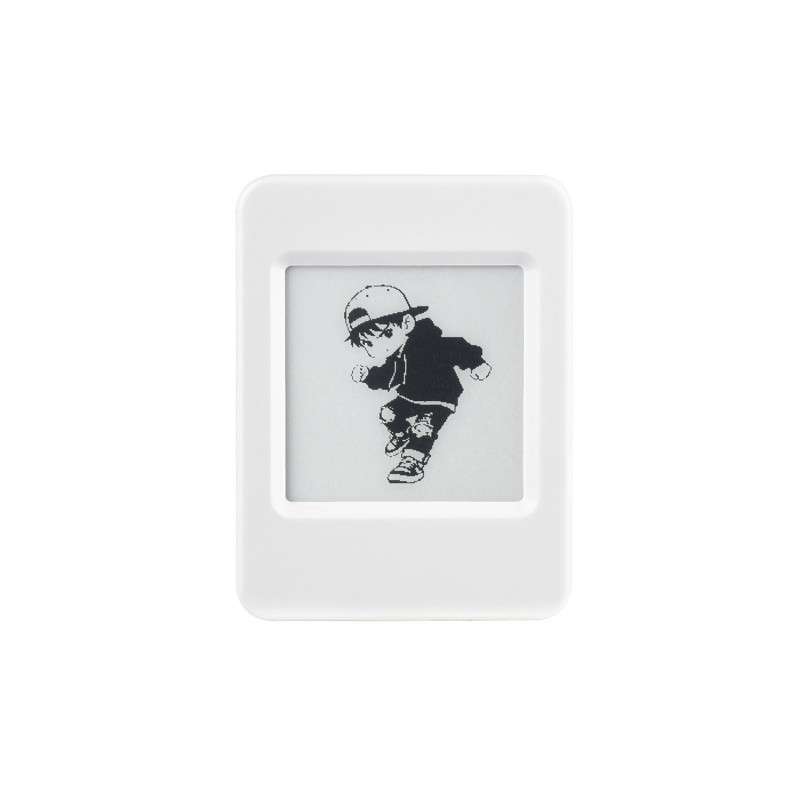

ESP32-S3 1.54inch e-Paper AIoT Dev.Board, 200×200 B/W, Wi-Fi and BLE Dual-mode (WS-34211) Touch, Bat.incl.
WS-34211
26,45 €
21.50 € bez DPH
ESP32-S3 1.54inch e-Paper AIoT Dev.Board, 200×200 B/W, Wi-Fi and BLE Dual-mode (WS-34211) Touch, Bat.incl.
ESP32-S3 1.54inch e-Paper AIoT Dev.Board, 200×200 B/W, Wi-Fi and BLE Dual-mode (WS-34211) Touch, Bat.incl.
- 3.7V MX1.25 Lithium battery : Included
- With touch control
ESP32-S3 1.54inch e-Paper AIoT Development Board, 200 × 200, Black / White, Supports Wi-Fi and BLE Dual-mode Communication
ESP32-S3 1.54inch
e-Paper AIoT Development Board
e-Paper AIoT Development Board
Supports AI speech interaction, temperature and humidity monitoring, and DIY creative function, etc.
Version options
ESP32-S3-ePaper-1.54
without touch control, comes with a 3.7V Lithium Batt
(can be installed inside the case)
ESP32-S3-ePaper-1.54-EN
without touch control and Lithium Batt
ESP32-S3-Touch-ePaper-1.54
with touch control, comes with a 3.7V Lithium Batt
(can be installed inside the case)
ESP32-S3-Touch-ePaper-1.54-EN
with touch control, without Lithium Batt
Features
The ESP32-S3-ePaper-1.54 is an e-Paper AIoT development board, equipped with ESP32-S3 microcontroller, which supports Wi-Fi and BLE dual-mode communication. Onboard 1.54inch e-paper display, features ultra-low power consumption and ambient light readability, suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium Batt recharge management circuit. Reserved interfaces including USB, UART, I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT terminals, electronic tags, portable displays, and other applications.
- Adopts high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
- Built-in 512KB Static RAM, 384KB ROM, with integrated 8MB Flash and 8MB PSRAM
- Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle
- Onboard audio codec chip, supports voice capture and playback, enabling AI voice interaction applications
- Onboard PCF85063 RTC chip and SHTC3 temperature & humidity sensor for accurate RTC management and environmental monitoring
- Onboard TF card slot for external storage of images or files
- Onboard programmable PWR and BOOT side buttons for customized function development
- Reserved 2 × 6 2.54mm pitch pin header for convenient external expansion
- Equipped with the FT6336 capacitive touch IC, enabling touch data transmission via the I2C communication interface, effectively reducing GPIO resource consumption and improving system resource utilization and expansion flexibility (Touch Version Only)
Specifications
| display panel | e-paper display | Display size | 1.54inch |
|---|---|---|---|
| resolution | 200 × 200 | grey scale | 2 |
| Communication interface | SPI | full refresh time | 2s |
| display color | black, white | partial refresh time | 0.3s |
| Touch IC (Touch Version Only) |
FT6336 | Display Type | Passively reflective |
Small Size, Touch More Possibilities
Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a Batt for independent operation
*for touch version only
Onboard audio codec chip
Supports high-quality audio processing, providing clear and high-quality audio input and output
Supports AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Application Scenarios
Suitable for Voice Interaction and e-Reader, etc
Voice Interaction
E-Reader
Supports ESP-IDF, Arduino IDE
Comprehensive SDK, dev resources, and tutorials to help you easily get started
What's On Board
- ESP32-S3-PICO-1-N8R8
Wi-Fi and Bluetooth SoC, 240MHz operating frequency, with integrated 8MB Flash and 8MB PSRAM - TF card slot
The TF card must be formatted to FAT32 before use - ES8311 audio codec chip
Supports audio input and output, low-power design, suitable for speech recognition and voice playback applications - BOOT button
Press it when powering on to enter download mode - PWR button
Enables power control via software configuration when using Lithium Batt for power supply - Type-C port
ESP32-S3 USB port for program burning and log printing - Microphone
for audio capture
- SHTC3 temperature and humidity sensor
provides ambient temperature and humidity measurement, enabling environmental monitoring function - MX1.25 2PIN speaker header
audio output signal, for connecting external speaker - MX1.25 2PIN Lithium Batt header
for connecting Lithium Batt - Onboard antenna
supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) - PCF85063 (back side)
RTC chip with timekeeping function - 2 × 6PIN 2.54mm pitch female pin header
- Speaker
for audio playback
Outline Dimensions
Support Batch Customization
Supports Customization in bulk order with red / yellow / black / white
four-color e-paper display
Balenie Obsahuje / Package Content
ESP32-S3-Touch-ePaper-1.54
- ESP32-S3-Touch-ePaper-1.54 x1
- Lithium Batt x1
WS-34211
Špecifické referencie
