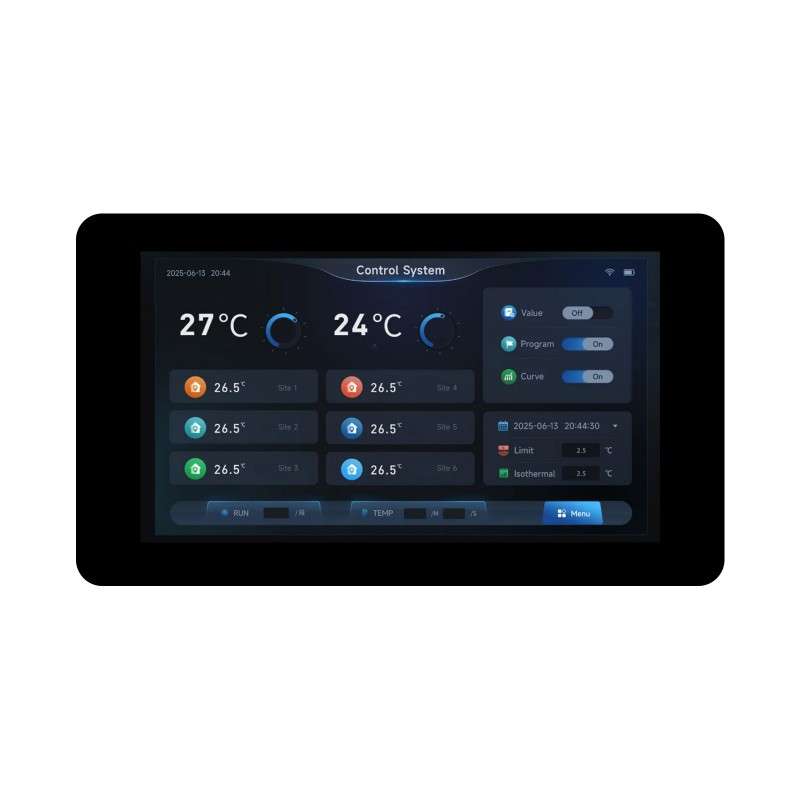

This product is a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 7inch LCD display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard/external antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• Onboard 7inch LCD display, 1024 × 600 resolution, 65K color
• Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
• Onboard CAN, RS485, I2C interface and TF card slot, integrates full-speed USB port
• LED indicator for easy monitoring of power status and battery charging status
• Supports backlight adjustment and real-time battery voltage monitoring
• Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
