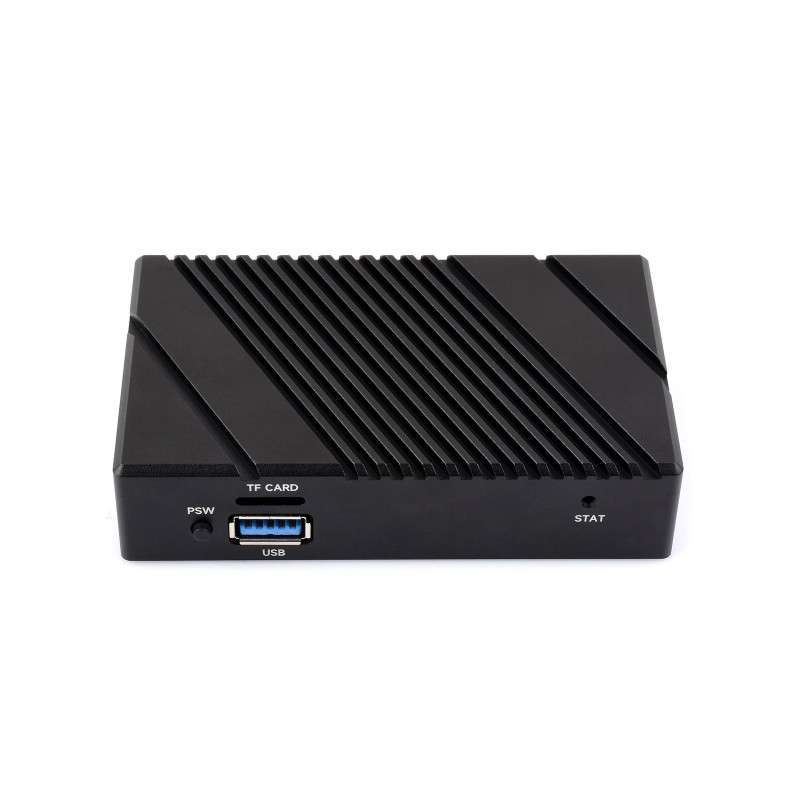

Gigabit / 2.5G Dual Ethernet Mini-Computer (B) Raspberry Pi CM5 (NOT included), Dual RJ45 Ethernet 4K (WS-34180)
WS-34180
85,36 €
69.40 € bez DPH
Gigabit / 2.5G Dual Ethernet Mini-Computer (B) Raspberry Pi CM5 (NOT included), Dual RJ45 Ethernet 4K (WS-34180)
Gigabit / 2.5G Dual Ethernet Mini-Computer (B) Raspberry Pi CM5 (NOT included), Dual RJ45 Ethernet 4K (WS-34180)
- Part No.:CM5-DUAL-ETH-BOX-B
Gigabit / 2.5G Dual Ethernet Mini-Computer (B) Based On Raspberry Pi CM5 (NOT included), Dual RJ45 Ethernet Ports, Supports 4K Display Output And Dual MIPI Interfaces, Onboard 40Pin GPIO Header
Dual Ethernet Mini-Computer for CM5
Designed for Raspberry Pi Compute Module 5
* the Compute Module 5 is NOT included.
Specifications
| CM5 socket | Suitable for all variants of Compute Module 5 |
|---|---|
| Networking | 1000M Ethernet RJ45 port 2500M Ethernet RJ45 port |
| Connector | Raspberry Pi 40PIN GPIO Header |
| USB | USB 3.2 Gen1 × 1 USB 2.0 × 1 Type-C（USB2.0）× 1 |
| MIPI | 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector) |
| Video | HDMI port × 1, supports 4K display output |
| M.2 | M.2 M KEY (PCIe Gen2/3 x 1) |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan Header | 5V, 4PIN JST-SH PWM fan connector |
| Power Input | DC 5V 5A |
| Dimensions | 101 × 62 × 23.4 (mm) |
Check the Compute Module 5 variants
What's the differences
| CM5 Base Board | Interface count and specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PoE | Gigabit ETH |
40PIN GPIO |
PCIe | USB① | MIPI | HDMI | RTC | Fan Header② |
Power Input |
Features | ||
 NANO A |
√ | 3.0×1 | ×2 | SH1.0 | √ | 5V | CM5 sized | |||||
 NANO B |
×1 | √ | 16PIN PCIe | 3.0×1 | ×2 | √ | SH1.0 | √ | 5V | CM5 sized | ||
 mini Base A |
×1 | √ | 16PIN PCIe | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | mini size | ||
 mini Base B |
×1 | √ | M.2 M KEY | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | mini size, onboard EEPROM and encryption chip | ||
 Mini Dual Gigabit |
×2 | √ | 3.0×1 | SH1.0 | √ | 5V | dual ETH | |||||
 Dual ETH A |
1G ×1 2.5G ×1 |
√ | M.2 M KEY | 3.0×1 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 7V~36V | dual ETH, onboard EEPROM and Encryption chip | ||
 Dual ETH B |
1G ×1 2.5G ×1 |
√ | M.2 M KEY | 3.0×1 2.0×1 |
×2 | ×1 | SH1.0 | √ | 5V | dual ETH ports | ||
 Dual ETH 4G/5G |
1G ×1 2.5G ×1 |
√ | M.2 M KEY | 3.0×2 | ×2 | ×2 | ML/CR1220 | √ | 7V~36V | dual ETH and 4G/5G support | ||
 PoE Base |
√ | ×1 | √ | M.2 M KEY | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | USB×4 | |
 Raspberry Pi official |
③ | ×1 | √ | M.2 M KEY | 3.0×2 | ×2 | ×2 | ML/CR1220 | √ | 5V | Official IO base board | |
 IPCBOX-CM5 |
1G ×1 2.5G ×1 |
M.2 M KEY | 3.0×1 2.0×3 |
×1 | SH1.0 | √ | 7V~36V | dual ETH 4G/5G support RS485/RS232 Encryption chip EEPROM CAN digital inputs digital outputs audio buzzer |
||||
| Note | ① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). |
|||||||||||
Connecting with Compute Module 5
standard CM5 socket and Raspberry Pi 40PIN GPIO header, suitable for Compute Module 5 Lite / eMMC series module
* for reference only, please refer to the package content for detailed part list
Supports connecting to M.2 NVMe Drive
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the package content for detailed part list.
Applicable M.2 drive sizes
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.
Passive Heat Dissipation Design
Aluminum alloy case enables passive cooling, fanless operation
More rich interfaces
Features multiple interfaces including ETH / MIPI / HDMI / TF Card Slot / USB / M.2 M KEY, for easy to use
Precise cut-out with clear label
each cut-out is completely aligned with the connector
What's On Board
- 2500M Ethernet RJ45 port
supporting 10M / 100M / 1000M / 2500M network connections - 1000M Ethernet RJ45 port
supporting 10M / 100M / 1000M network connections - USB 2.0 port
- HDMI port
Supports 4K output - Type-C power port
DC 5V power input, or used for eMMC burning - 40PIN GPIO header
Suitable for connecting to various HAT / HAT+ modules - USB 3.2 Gen1 port
supports up to 5 Gbps reading / writing speed - PSW power button
Long press to force power off, short press to soft power off or on
- M.2 M KEY
Supports 2230 / 2242 / 2280 NVMe Solid State Drives or AI modules - RTC SH1.0 batt header
for connecting an external RTC batt to maintain real-time clock operation - MIPI Interfaces
for connecting to DSI displays or CSI cameras - BOOT button
used to enter burning mode - TF card slot
for connecting a TF card with pre-burnt image (Lite variant ONLY) - CM5 socket
Suitable for all variants of Compute Module 5 - STAT LED
Dual-color status LED
Assembly Instructions
Application Example
Suitable for Raspberry Pi applications in remote communications or other industrial situations
* for reference only, the display and camera module are not included, please purchase separately if needed
Outline dimensions
About Compute Module 5
Newly upgraded, more powerful
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Balenie Obsahuje / Package Content
- Mental case (top and bottom)
- CM5-DUAL-ETH-BASE-B x1
- Silicone thermal tape x1
- Screwdriver x1
- Pink thermal tape 5PCS x1
- Screws pack x1
