      Cyclone V GX Starter Kit (TERASIC) TA-P0150

      The Cyclone V Starter Kit presents a robust hardware design platform built around the Altera Cyclone V GX FPGA, which is optimized for the lowest cost and power requirement for transceiver applications with industry-leading programmable logic for ultimate design flexibility. With Cyclone V FPGAs, you can get the power, cost, and performance levels you need for high-volume applications including protocol bridging, motor control drives, broadcast video converter and capture cards, and handheld devices. The Cyclone V Starter Kit development board includes hardware such as Arduino Header, on-board USB Blaster, audio and video capabilities and much more. In addition, an on-board HSMC connector with high-speed transceivers allows for an even greater array of hardware setups. By leveraging all of these capabilities, the Cyclone V Starter Kit is the perfect solution for showcasing, evaluating, and prototyping the true potential of the Altera Cyclone V GX FPGA.

      FPGA Device

      • Cyclone V GX 5CGXFC5C6F27C7N Device
      • 77K Programmable Logic Elements
      • 4884 Kbits embedded memory
      • Six Fractional PLLs
      • Two Hard Memory Controllers
      • Six 3.125G Transceivers

      Configuration and Debug

      • Quad Serial Configuration device – EPCQ256 on FPGA
      • On-Board USB Blaster (Normal Type-B USB connector)
      • JTAG and AS mode configuration supported

      Memory Device

      • 4Gb LPDDR2 x32 bits data bus
      • 4Mb SRAM x16 bits data bus

      Communication

      • UART to USB

      Expansion I/O

      • HSMC x 1(voltage levels: 2.5V), including 4-lanes 3.125G transceiver
      • 2x20 GPIO Header (voltage levels: 3.3V)
      • Arduino header, including analog pins
      • SMA x 4 (DNI), one-lane 3.125G transceiver

      Display

      • HDMI TX, compatible with DVI v1.0 and HDCP v1.4

      Audio

      • 24-bit CODEC, Line-in, line-out, and microphone-in jacks

      Switches, Buttons, LED, and 7-Segments

      • 18 LEDs
      • 10 Slide Switches
      • 4 Debounced Push Buttons
      • 1 CPU reset Push Buttons
      • Four 7-Segments

      Micro SD Card Socket

      • Provides SPI and 4-bit SD mode for SD Card access

      ADC

      • 12-Bit Resolution, 500Ksps Sampling Rate. SPI Interface.
      • 8-Channel Analog Input. Input Range : 0V ~ 4.096V.

      Power

      • 12V DC input

      Block Diagram

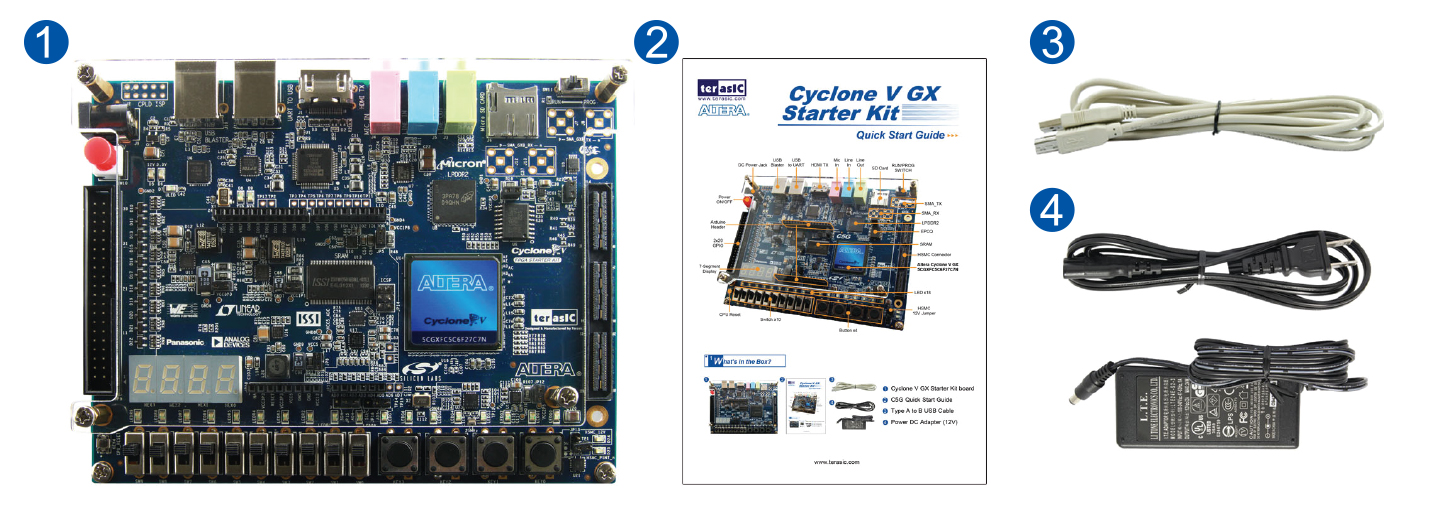

      Kit Contents

      1. Cyclone V GX Starter Kit board
      2. Cyclone V GX Starter Kit Quick Start Guide​
      3. Type A to B USB Cable
      4. Power DC Adapter (12V)


      Terasic
      TA-P0150
