5G/4G/3G Module For Jetson Orin, Includes RM520N-GL Module, Supports 5G NSA And SA Networking, GNSS (WS-32256)

5G/4G/3G Module For Jetson Orin, Includes RM520N-GL Module, Supports 5G NSA And SA Networking, GNSS (WS-32256)

Name: 5G/4G/3G Module For Jetson Orin, Includes RM520N-GL Module, Supports 5G NSA And SA Networking, GNSS (WS-32256)
Brand: Waveshare Electronics
SKU: WS-32256
Price: 306.27 EUR
Availability: BackOrder

Kód WS-32256

306,27 €

249.00 € bez DPH

Popis
Detaily produktu

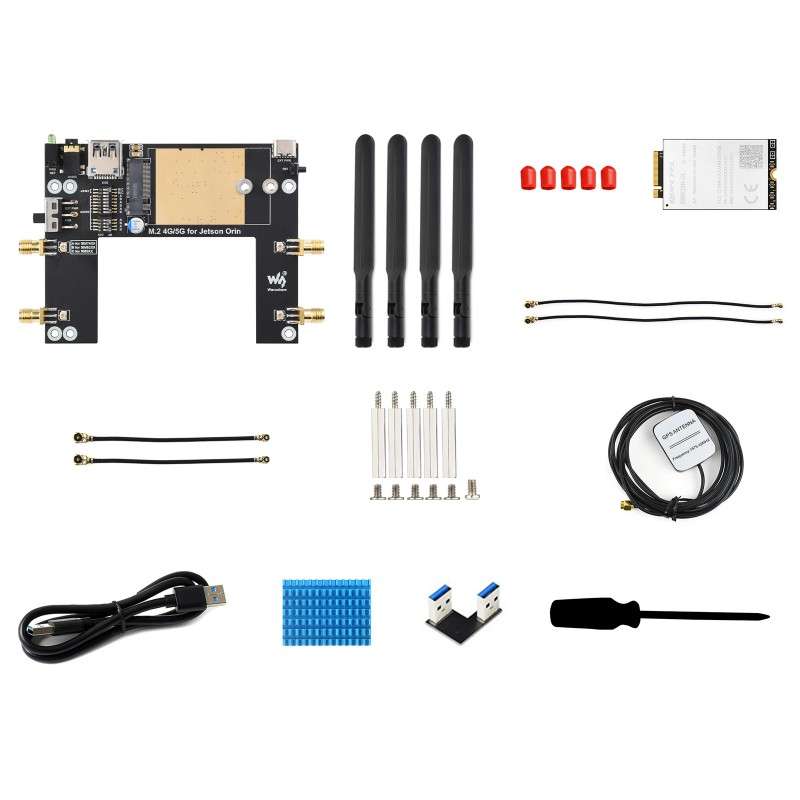

5G/4G/3G Module For Jetson Orin, Includes RM520N-GL Module, Supports 5G NSA And SA Networking, GNSS (WS-32256)

5G/4G/3G Module Designed For Jetson Orin, Includes RM520N-GL Module, Supports 5G NSA And SA Networking, GNSS Positioning

5G / 4G / 3G module for Jetson Orin

Supports 5G / 4G / 3G networks and GNSS positioning

Based on the Quectel RM520N-GL 5G global module, supports 3GPP 16

5G/4G/3G Module Designed For Jetson Orin, front view

Features at a glance

Based on Qualcomm X62 platform, supports 5G NSA and SA networking, with multi-mode multi-band support
Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
USB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 5G network
Onboard standard M.2 B KEY slot and module selection switches, compatible with RM520N-GL / RM530N-GL / RM500U-CNV / EM060K-GL modules
4 x SMA antenna connectors, easy to install the antennas
Reserved UART solder pads for convenient data transmission and other functions with certain modules
Onboard 1-ch Nano SIM card slot and 1-ch eSIM slot in QFN-8 (5 × 6) package, supporting dual SIM single standby, switchable via AT command
Onboard power switch, reset button, and LED indicator for convenient power control and status monitoring
Onboard high-efficiency power supply circuit, up to 3A output current

Specifications

5G / 4G module	SIM8260G-M2	SIM8262E-M2	RM520N-GL	SIM7600G-H-M.2
Images
5G standard	3GPP R16			-
Chip Solution	Qualcomm Snapdragon X62			Qualcomm MDM9607
Applicable regions	Global	Except Americas	Global
Dimensions (mm)	30.0 × 52.0 × 2.3	30.0 × 42.0 × 2.3	30.0 × 52.0 × 2.3	42.0 × 31.4 × 3.8
Frequency band
5G SA	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79	n1, n3, n5, n7, n8, n18, n20, n26, n28, n38, n40, n41, n48, n66, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	-
5G NSA	n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79	n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n48, n66, n77, n78, n79	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79	-
LTE-FDD	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71	B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66
LTE-TDD	B34, B38, B39, B40, B41, B42, B43, B46, B48	B38, B39, B40, B41, B42, B43	B34, B38, B39, B40, B41, B42, B43, B48	B34, B38, B39, B40, B41
WCDMA	B1, B2, B4, B5, B8, B19	B1, B5, B8	B1, B2, B4, B5, B8, B19	B1, B2, B4, B5, B6, B8, B19
GNSS	GPS, GLONASS, Beidou, Galileo, and QZSS
Data rate
Sub-6G SA	2.5Gbps (DL) / 0.9Gbps (UL)	2.4Gbps (DL) / 1Gbps (UL)	2.4Gbps (DL) / 900Mbps (UL)	-
Sub-6G NSA	3.47Gbps (DL) / 460Mbps (UL)	3.4Gbps (DL) / 600Mbps (UL)	3.4Gbps (DL) / 550Mbps (UL)	-
LTE	1.6Gbps (DL) / 200Mbps (UL)			150Mbps (DL) / 50Mbps (UL)
HSPA+	42Mbps (DL) / 5.76 Mbps (UL)
Note: The above are the supported modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility.

Multi mode multi band

based on the Qualcomm platform, supports 5G NSA and SA networking and multi-mode multi-band capabilities, suitable for a wide range of application scenarios

* the frequency band diagram above is for reference only,
please confirm the supported bands according to your local service provider.

Multi system support

Supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use

5G/4G/3G Module Designed For Jetson Orin, supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems

Multi host support

Enabling 5G high speed connection for Jetson Orin / PC / Raspberry Pi

Connecting Jetson Orin to Internet

Connecting Windows to Internet

* stands for idealized data rate, the actual data rate depends on factors like network coverage, traffic congestion, host performance, base station condition, etc.

Cloud Communication

5G/4G/3G Module Designed For Jetson Orin, supported multiple communication protocols

Application example

What's On Board

5G/4G/3G Module Designed For Jetson Orin, onboard components

USB3.1 port
USB 2.0 compatible, for connecting with different hosts
M.2 slot
compatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor
USB Type-C port
5V 3A power input, stable and flexible power supply
Reset button
Module fixing holes
supports 3042 / 3052 package modules
Antenna connectors
Supports quad antennas
Module settings switch
Switch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules;
Switch B to ON for SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules;
Switch C to ON for RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules

Power supply switch
Switch the power supply mode:
When set to USB, the module is powered via the "1. USB3.1 port"
When set to EXT PWR, the module is powered by the external power supply via the "3. USB Type-C port"
Indicator
Easy to monitor the operating status of module
Audio jack
SIM82XX / SIM7600X series supports audio function, but RM5XX series temporarily does not support this function
eSIM card slot
QFN-8 (5 × 6) package, configurable via AT commands
Nano SIM card slot
onboard dual SIM card slots, dual card single standby
Level conversion circuit
Reserved UART and audio interface pads
Mounting holes
for installing this module onto the Jetson Orin board via screws
Audio drive circuit
Power supply circuit
Fan header
for 5V cooling fan
