      Digital Oscilloscope DIY kit DSO138  (ER-AKA01381A)

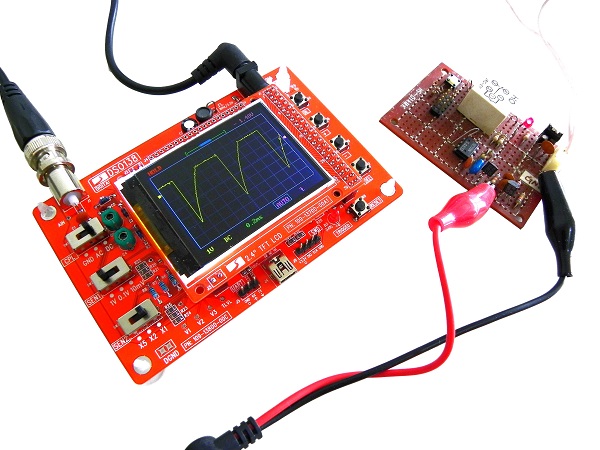

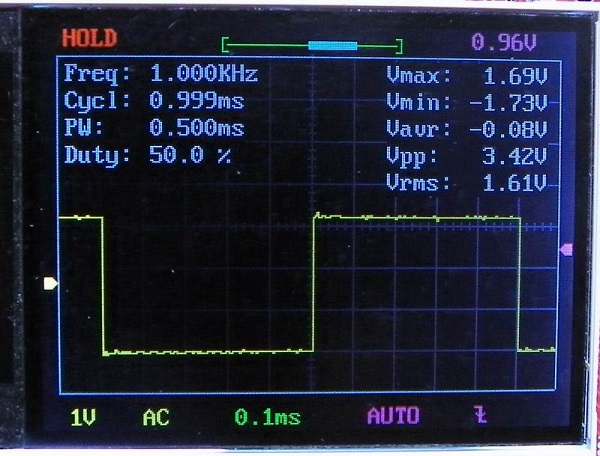

      DSO138 was designed as a training oscilloscope kit. Simplicity in structure and easiness in assembly/operation are among the main targets of the design. For these purpose DSO138 uses mostly through-hole parts. The heart of DSO138 is a Cortex-M3 ARM processor (STM32F103C8) from ST. It uses 2.4-inch TFT LCD (320 X 240 dotmatrix, 262K colors) as its display element and displays nice and clear waveforms. Detailed assembly instructions are provided in combination with troubleshooting guide and schematc.
      This DSO138 kits has all SMD parts pre-soldered. The MCU has been pre-programmed and no re-programming required.






      • Number of Channel: 1
      • Analog Bandwidth: 0 - 200KHz
      • Sensitivity: 10mV/Div - 5V/Div
      • Sensitivity error: < 5%
      • Resolution: 12-bit
      • Maximum Input voltage: 50Vpk
      • Coupling: DC, AC, GND
      • Max Real-time Sampling Rate: 1Msps
      • Timebase: 10us/Div - 500s/Div
      • Record Length: 1024
      • Trigger Modes: Auto, Normal, Single
      • Trigger Types: Rising/falling edge
      • Trigger Position: 1/2 of buffer size fixed
      • 2.4-inch color TFT LCD with 320 x 240 resolution
      • 9V DC (8 - 12V acceptable)
      • Supply Current: 120mA
      • Dimension: 117mm X 76mm X 15mm
      • Weight: 70 gram (not including cables)


      Package list

      • DSO138 Digital Oscilloscope DIY kit 1x


      Wiki & External links
