    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)
    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)
    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)
    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)
    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)
    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)

    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)

    WS-24508
    589,17 €

    479.00 € bez DPH

    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)

    Množstvo:
    OUT OF STOCK

    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-24508)

    • Part No. : JETSON-ORIN-NANO-8G-DEV-KIT-B-EU
    • Memory option : 8GB
    • JETSON-ORIN-NANO-DEV-KIT-B
    • Power Plug : EU

    Jetson Orin Nano AI Development Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module

    JETSON-ORIN-NANO-DEV-KIT

    Waveshare Jetson Orin Nano Dev Kit

    Newly upgraded performance and increased computing power

    This is not the N-VIDIA official Developer Kit

    Based on Jetson Orin Nano Module, with JETSON-ORIN-IO-BASE base board, providing rich peripheral interfaces such as M.2, DP, USB, etc., which is more convenient for users to realize the product performance.

    This kit includes the Orin Nano Module with options for 4GB / 8GB memory, no built-in storage module, provides up to 20 TOPS / 40 TOPS AI performance, and up to 34 TOPS / 67 TOPS after upgrading to the SUPER version. Comes with a Free 256GB NVMe Solid State Drive, high-speed reading/writing, meet the needs of large AI project development.

    JETSON-ORIN-NANO-4G-DEV-KIT-details-20.jpg JETSON-ORIN-NANO-4G-DEV-KIT-details-5.jpg

    * for reference only, the actual appearance of the Solid State Drive may be different

    This kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.


    Module 4GB 4GB***
    SUPER
    8GB 8GB***
    SUPER
    Version 4GB Module Waveshare Kit 4GB Module Waveshare Kit 8GB Module Waveshare Kit 8GB Module Waveshare Kit Official Kit
    AI performance 20TOPS 34 TOPS (sparse)
    17 TOPS (dense)
    40TOPS 67 TOPS (sparse)
    33 TOPS (dense)
    GPU 512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
    GPU Frequency 625MHz (Max) 1020MHz (Max) 625MHz (Max) 1020MHz (Max)
    CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
    CPU Frequency 1.5GHz (Max) 1.7GHz (Max) 1.5GHz (Max) 1.7GHz (Max)
    Memory 4GB 64-bit LPDDR5, 32GB/s 4GB 64-bit LPDDR5, 51GB/s 8GB 128-bit LPDDR5, 68GB/s 8GB 128-bit LPDDR5, 102GB/s
    Storage Supports external NVMe 256GB NVMe Solid State Drive Supports external NVMe 256GB NVMe Solid State Drive Supports external NVMe 256GB NVMe Solid State Drive Supports external NVMe 256GB NVMe Solid State Drive TF card slot & external NVMe via M.2 Key M
    Power 7W ~ 10W 7 W | 10 W | 15W 7W ~ 15W 7 W | 10 W | 15W
    PCIe* 1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) M.2 Key M slot with x4 PCIe Gen3/
    M.2 Key M slot with x2 PCIe Gen3/
    M.2 Key E slot
    1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint) M.2 Key M slot with x4 PCIe Gen3/
    M.2 Key M slot with x2 PCIe Gen3/
    M.2 Key E slot
    1 x4 + 3 x1 (PCIe Gen3, Root Port & Endpoint) M.2 Key M slot with x4 PCIe Gen3/
    M.2 Key M slot with x2 PCIe Gen3/
    M.2 Key E slot
    1 x4 + 3 x1 (PCIe Gen3, Root Port & Endpoint) M.2 Key M slot with x4 PCIe Gen3/
    M.2 Key M slot with x2 PCIe Gen3/
    M.2 Key E slot
    USB* 3x USB 3.2 2.0 (10 Gbps)
    3x USB 2.0
    USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) 3x USB 3.2 2.0 (10 Gbps)
    3x USB 2.0
    USB Type-A: 4x USB 3.2 Gen2/ USB Type-C (UFP) 3x USB 3.2 2.0 (10 Gbps)
    3x USB 2.0
    USB Type-A: 4x USB 3.2 Gen2/
    USB Type-C (UFP)
    3x USB 3.2 2.0 (10 Gbps)
    3x USB 2.0
    USB Type-A: 4x USB 3.2 Gen2/
    USB Type-C (UFP)
    CSI Camera Up to 4 cameras (8 via virtual channels**)/
    8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)
    2x MIPI CSI-2 Camera Connector Up to 4 cameras (8 via virtual channels**)/
    8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)
    2x MIPI CSI-2 Camera Connector Up to 4 cameras (8 via virtual channels**)/
    8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)
    2x MIPI CSI-2 Camera Connector Up to 4 cameras (8 via virtual channels**)/
    8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)
    2x MIPI CSI-2 Camera Connector
    Video encode 1080p30 supported by 1-2 CPU cores
    Video decode 1x 4K60 (H.265)
    2x 4K30 (H.265)
    5x 1080p60 (H.265)
    11x 1080p30 (H.265)
    Display 1x 8K30 multi-mode DP 1.4a (+MST)/
    eDP 1.4a/HDMI 2.1
    1x DisplayPort 1.2 (+MST) connector 1x 8K30 multi-mode DP 1.4a (+MST)/
    eDP 1.4a/HDMI 2.1
    1x DisplayPort 1.2 (+MST) connector 1x 8K30 multi-mode DP 1.4a (+MST)/
    eDP 1.4a/HDMI 2.1
    1x DisplayPort 1.2 (+MST) connector 1x 8K30 multi-mode DP 1.4a (+MST)/
    eDP 1.4a/HDMI 2.1
    1x DisplayPort 1.2 (+MST) connector
    Other 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, DC power jack 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO), 12-pin button header, 4-pin fan header, TF card slot, DC power jack
    Networking 1x GbE 1x GbE Connector 1x GbE 1x GbE Connector 1x GbE 1x GbE Connector 1x GbE 1x GbE Connector
    Dimensions 69.6 mm x 45 mm
    260-pin SO-DIMM connector
    103 × 90.5 × 34mm 69.6 mm x 45 mm
    260-pin SO-DIMM connector
    103 × 90.5 × 34mm 69.6 mm x 45 mm
    260-pin SO-DIMM connector
    103 × 90.5 × 34mm 69.6 mm x 45 mm
    260-pin SO-DIMM connector
    103 × 90.5 × 34mm 100 mm x 79 mmx 21 mm
    * USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations.
    ** Virtual Channels for Jetson Orin Nano are subject to change
    Refer to the Software Features section of the latest NVIDIA Jetson Linux Developer Guide for a list of supported features.
    *** Official kit: supports software upgrade to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.1.1 can support upgrading SUPER version);
    *** Orin Nano Module and Waveshare kit: supports upgrading to SUPER image, provides SUPER upgrade tutorial in the wiki (jetpack 6.2 can support upgrading SUPER version);

    Kit Selection Guide
    Kit A B
    JETSON-ORIN-NANO-DEV-KIT
    (Orin Nano Module: options for 4GB/8GB)
    IMX219-77 Camera
    13.3inch HDMI LCD (H) (with case) V2
    (USB cable, DP to HDMI cable, Power Supply)

    JETSON-ORIN-NANO-DEV-KIT
    Includes Jetson Orin Nano Module (options for 4GB/8GB), JETSON-ORIN-IO-BASE base board, Cooling Fan, 256GB NVMe Solid State Drive, AW-CB375NF dual-band wireless network card, USB cable, Ethernet cable, Power supply, etc.


    JETSON-ORIN-NANO-DEV-KIT-A: Camera kit
    On the basis of the JETSON-ORIN-NANO-DEV-KIT, it is equipped with an 8MP (3280 x 2464) high-definition camera, suitable for the AI intelligent applications such as face recognition, road sign recognition and license plate recognition.


    JETSON-ORIN-NANO-DEV-KIT-B: Camera + Touch display kit
    On the basis of the Kit A, it is equipped 13.3inch Capacitive Touch Screen LCD (with case), 1920×1080 resolution, up to 10-point touch, built-in ferrite Hi-Fi speaker. It can display the images taken by the camera in real time, to achieve more human-computer interaction of artificial intelligence operations.


    Onboard Resources

    Professional application software and models

    N-VIDIA Software
    All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.



    Pretrained Models
    Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.

    N-VIDIA Platforms for Robotics, AI Speech, and Smart Cities

    N-VIDIA software platforms including Isaac for robotics, Riva for AI speech, and Metropolis for video analytics, are available to speed vertical-specific applications


    N-VIDIA Isaac
    Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.



    N-VIDIA Riva
    N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.



    N-VIDIA Metropolis
    N-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.

    Product Show
    Outline dimensions
    Resources & Services

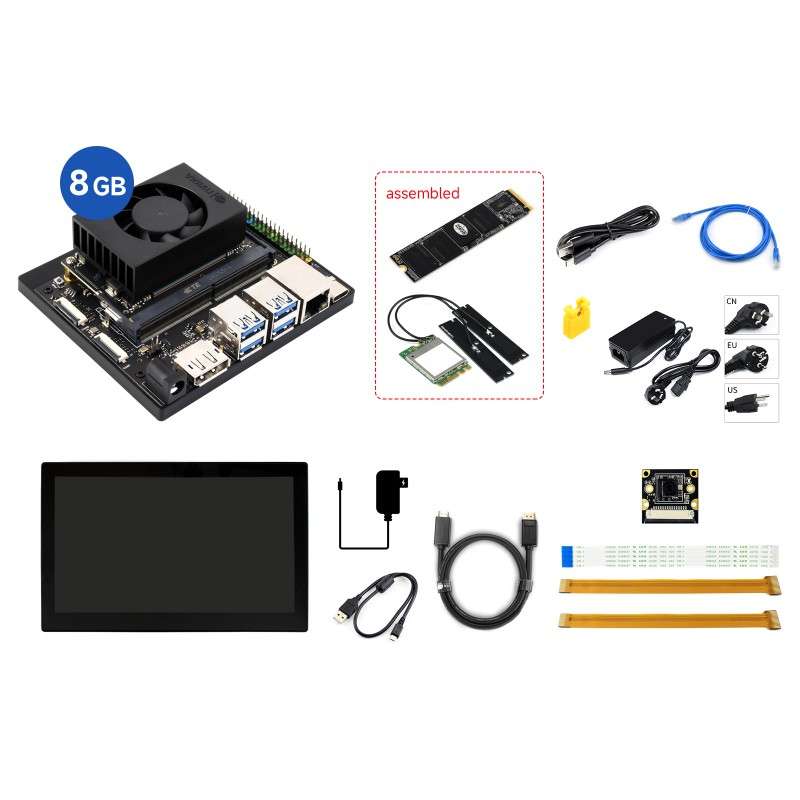

    Balenie Obsahuje / Package Content

    JETSON-ORIN-NANO-DEV-KIT-B

    1. Waveshare Orin Nano development kit:
      Jetson Orin Nano Module x1
      JETSON-ORIN-IO-BASE x1
      Cooling Fan x1
      256GB NVMe Solid State Drive (assembled) x1
      Wireless network card (assembled) x1
    2. USB Type A to Type-C cable (~1m) x1
    3. Ethernet cable (~1.5m) x1
    4. Jumper x1
    5. Base board power adapter x1
    6. Camera FPC cable ~15cm (2PCS) x1
    7. IMX219-77 Camera (with FFC cable) x1
    8. 13.3inch HDMI LCD (H) (with case) V2 x1
    9. Display power supply x1
    10. USB Type A to Micro B cable (~35cm) x1
    11. DP to HDMI cable ~1m x1
