      WS-33177
      490,77 €

      399.00 € bez DPH

      Jetson Orin Nano AI Dual ETH Dev.Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-33177)

      Množstvo:
      OUT OF STOCK

      Jetson Orin Nano AI Dual ETH Dev.Kit For Embedded And Edge Systems, 8GB Memory Jetson Orin Nano Module (WS-33177)

      • Part No.: JETSON-ORIN-NANO-8G-ETH-DEV-KIT (EU)

      Jetson Orin Nano AI Dual ETH Development Kit For Embedded And Edge Systems, Options for 4GB/8GB Memory Jetson Orin Nano Module

      JETSON-ORIN-NANO-ETH-DEV-KIT

      Waveshare Orin Nano Dual ETH Development Kit

      JETSON-ORIN-NANO-ETH-DEV-KIT, front view
      This is not the N-VIDIA official Developer Kit

      Based on Jetson Orin Nano Module, with JETSON-ORIN-IO-BASE-B base board, providing rich peripheral interfaces such as M.2, DP, USB, dual ETH ports, etc., which is more convenient for users to realize the product performance.

      This kit includes the Orin Nano Module with options for 4GB / 8GB memory, no built-in storage module, provides up to 20 TOPS / 40 TOPS AI performance, and up to 34 TOPS / 67 TOPS after upgrading to the SUPER version. Comes with a 256GB NVMe Solid State Drive, high-speed reading/writing, meet the needs of large AI project development.

      JETSON-ORIN-NANO-ETH-DEV-KIT, Significant increase in computing power JETSON-ORIN-NANO-ETH-DEV-KIT, 256GB NVME Solid State Drive

      * for reference only, the actual appearance of the Solid State Drive may be different

      This kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.


      JETSON-ORIN-NANO-ETH-DEV-KIT, his kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band WIFI, with two additional PCB antennas


      Kit Selection Guide

      JETSON-ORIN-NANO-ETH-DEV-KIT, Kit Selection Guide

      JETSON-ORIN-NANO-ETH-DEV-KIT
      Includes Jetson Orin Nano Module (options for 4GB/8GB), JETSON-ORIN-IO-BASE-B base board, cooling fan, 256GB NVMe Solid State Drive, AW-CB375NF dual-band wireless network card, FFC cable, USB cable, USB expansion board, Network cable, power supply adapter, etc.

      Parameter Comparison
      Module 4GB Module
      SUPER
      8GB Module
      SUPER
      AI performance 34 TOPS (sparse)
      17 TOPS (dense)
      67 TOPS (sparse)
      33 TOPS (dense)
      GPU 512-core N-VIDIA Ampere architecture GPU with 16 Tensor Cores 1024-core N-VIDIA Ampere architecture GPU with 32 Tensor Cores
      GPU Frequency 1020MHz (Max)
      CPU 6-core Cortex-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3
      CPU Frequency 1.7GHz (Max)
      Memory 4GB 64-bit LPDDR5, 51GB/s 8GB 128-bit LPDDR5, 102GB/s
      Storage Supports external NVMe
      Power 7 W | 10 W | 25W 7 W | 15 W | 25W
      PCIe* 1 x4 + 3 x1 (PCIe 3.0, Root Port & Endpoint)
      USB* 3x USB 3.2 2.0 (10 Gbps)
      3x USB 2.0
      CSI Camera Up to 4 cameras (8 via virtual channels**)/
      8 lanes MIPI CSI-2/ D-PHY 1.2 (up to 20 Gbps)
      Video encode 1080p30 supported by 1-2 CPU cores
      Video decode 1x 4K60 (H.265)
      2x 4K30 (H.265)
      5x 1080p60 (H.265)
      11x 1080p30 (H.265)
      Display 1x 8K30 multi-mode DP 1.4a (+MST)/eDP 1.4a/HDMI 2.1
      Other 3x UART, 2x SPI, 2x I2S, 4x I2C, 1x CAN, DMIC & DSPK, PWM, GPIO
      Networking 1x GbE
      Dimensions 69.6 mm x 45 mm
      260-pin SO-DIMM connector
      * USB 3.2, MGBE, and PCIe share UPHY Lanes. See the Product Design Guide for supported UPHY configurations
      ** Virtual Channels for Jetson Orin Nano are subject to change
      7 × USB ports

      4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors

      Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, Type-C port can be used for system burning, and Onboard 2 × USB 2.0 FFC connectors

      JETSON-ORIN-ETH-NANO-DEV-KIT, 7 × USB ports
      connect to CSI camera

      Expands 2 × CSI camera interfaces for AI applications such as face recognition, road sign detection, Lane Line detection, and license plate recognition

      JETSON-ORIN-ETH-NANO-DEV-KIT, connect to CSI camera

      * for reference only, please refer to the package content for detailed part list.


      Onboard dual Ethernet ports

      Expands 1 × RJ45 2.5G Ethernet port and 1 × RJ45 Gigabit Ethernet port

      JETSON-ORIN-ETH-NANO-DEV-KIT, Expands 1 × RJ45 2.5G Ethernet port and 1 × RJ45 Gigabit Ethernet port

      * for reference only, please refer to the package content for detailed part list.

      4K High Definition output

      Supports DP High-definition Port

      Jetson Orin Nano / NX Super Dual Ethernet Base Board type B, Supports DP High-definition Port

      * for reference only, please refer to the package content for detailed part list.

      Onboard Resources
      JETSON-ORIN-ETH-NANO-DEV-KIT, Onboard Resources
      Installation Demonstration

      JETSON-ORIN-ETH-NANO-DEV-KIT, Installation Demonstration
      Professional application software and models
      JETSON-ORIN-ETH-NANO-DEV-KIT, N-VIDIA Software

      N-VIDIA Software
      All N-VIDIA Jetson modules and developer kits are supported by the same N-VIDIA Jetson software stack, so you can develop once and deploy everywhere. Jetson software is designed to provide end-to-end acceleration for AI applications and accelerate the time to market. This brings the powerful N-VIDIA technologies that power data centers and cloud deployments to the edge.


      JETSON-ORIN-ETH-NANO-DEV-KIT, Pretrained Models

      Pretrained Models
      Many AI applications have common needs: classification, object detection, language translation, text-to-speech, recommender engines, sentiment analysis, and more. Pretrained models from the NGC™ catalog are performance-optimized and ready to be fine-tuned with the N-VIDIA TAO Toolkit and customer datasets, reducing time and cost for production AI software development.

      N-VIDIA Platforms for Robotics, AI Speech, and Smart Cities

      N-VIDIA software platforms including Isaac for robotics, Riva for AI speech, and Metropolis for video analytics, are available to speed vertical-specific applications

      JETSON-ORIN-ETH-NANO-DEV-KIT, N-VIDIA Isaac

      N-VIDIA Isaac
      Robots improve efficiency and quality of life in industries such as manufacturing, logistics, healthcare, and service. N-VIDIA Isaac™ accelerates the process with enhanced robotics development, simulation, and deployment.


      JETSON-ORIN-ETH-NANO-DEV-KIT, N-VIDIA Riva

      N-VIDIA Riva
      N-VIDIA Riva is a fully accelerated SDK for building multimodal conversational AI applications using an end-to-end deep-learning pipeline, suitable for optimized skills in speech, vision, and natural language processing (NLP) tasks.


      JETSON-ORIN-ETH-NANO-DEV-KIT, N-VIDIA Metropolis

      N-VIDIA Metropolis
      N-VIDIA Metropolis includes an application framework, s set of developer tools, and the partner ecosystem. It brings visual data and AI together to improve operational efficiency and safety across a broad range of industries.

      Product Show
      JETSON-ORIN-ETH-NANO-DEV-KIT, product show
      Outline dimensions
      JETSON-ORIN-ETH-NANO-DEV-KIT, outline dimensions
      Resources & Services

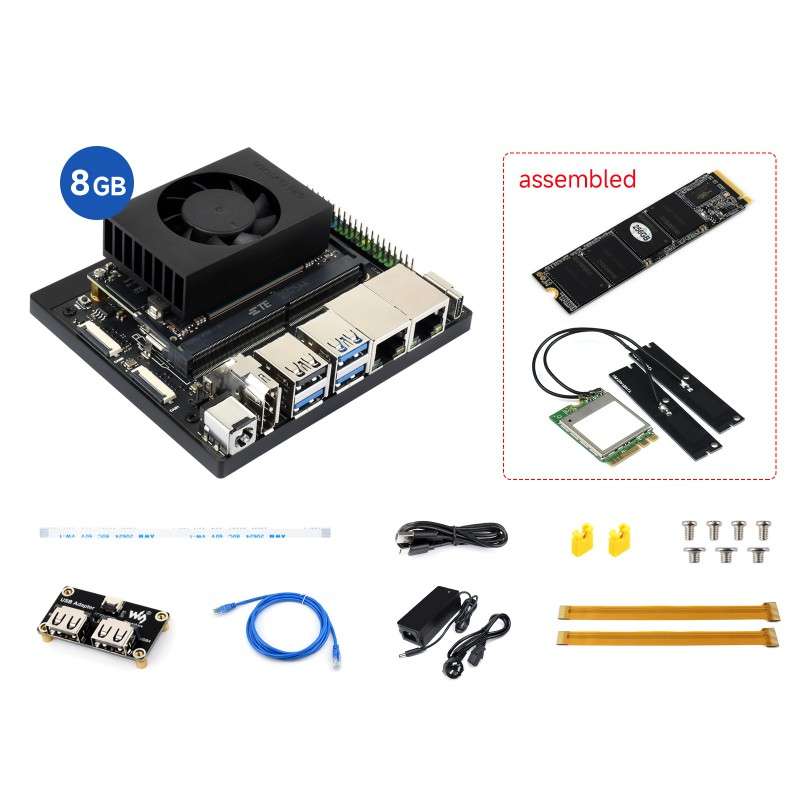

      Balenie Obsahuje / Package Content

      1. Waveshare Orin ETH Nano development kit:
        Jetson Orin Nano Module x1
        JETSON-ORIN-IO-BASE-B x1
        Cooling Fan x1
        256GB NVMe Solid State Drive (assembled) x1
        Wireless network card (assembled) x1
      2. 6PIN FFC cable ~10cm x1
      3. USB Type A to Type-C cable ~1m x1
      4. Jumper (2PCS) x1
      5. Screws pack x1
      6. USB expansion board x1
      7. Network cable ~1.5m x1
      8.  Power adapter x1
      9. Camera FPC cable ~15cm (2PCS) x1
