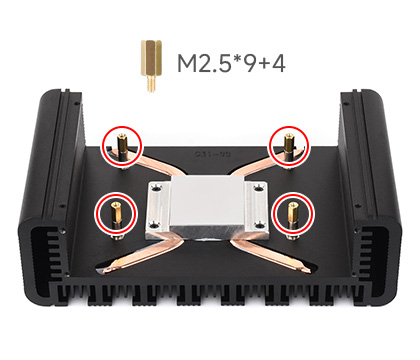

Step 1: Install the M2.5×9+4 standoffs at the positions shown below.

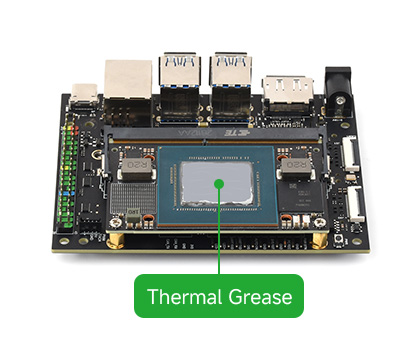

Step 2: Apply the included thermal grease evenly to the surface of the Jetson Orin module.

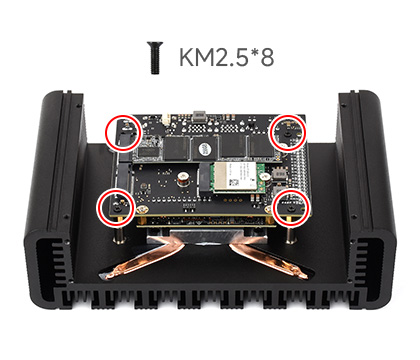

Step 3: Mount the Jetson Orin module onto the heatsink and secure it with the KM2.5×8 screws.

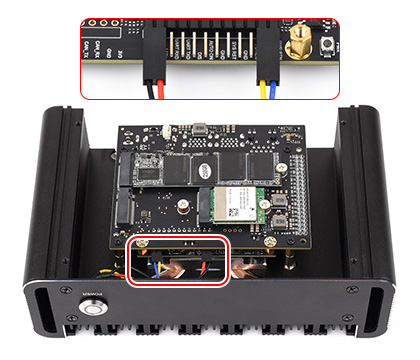

Step 4: Connect the 4PIN cable with the power button to the corresponding connector on the base board. Install the rear panel and secure it with screws.

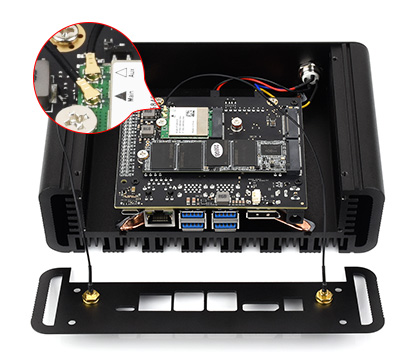

Step 5: Use the IPEX4 to SMA cable, connect the IPEX4 end to the wireless module, then secure the SMA connector to the front panel.

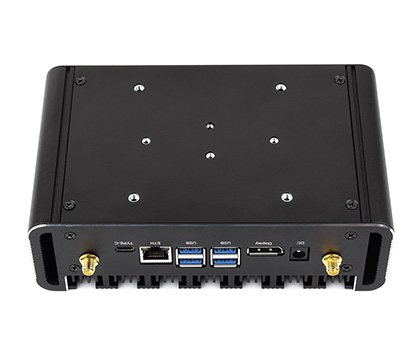

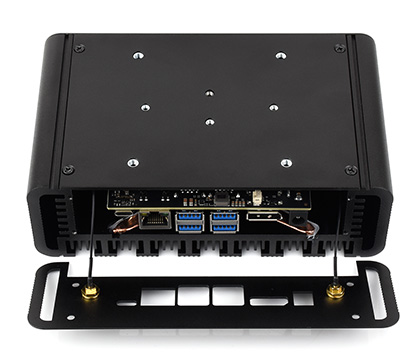

Step 6: Install the bottom cover and secure it with screws.

Step 7: Install the front cover and secure it with screws.

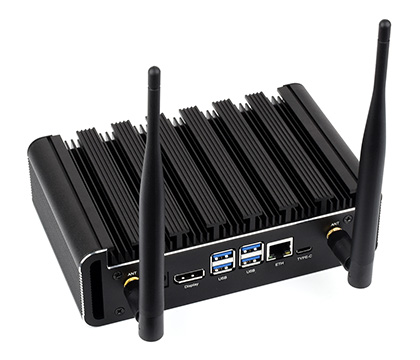

Step 8: Install the antennas on the SMA connectors to complete the assembly.
