Suitable For Jetson Orin Nano And Jetson Orin NX Kits

for reference only, please refer to the package content for detailed part list.

Combined with the JETSON-ORIN-IO-BASE/BASE-H base board, providing rich interfaces such as M.2, Display, USB, and Ethernet ports, which is more convenient for users to realize the product performance.

Supports connecting to N-VIDIA Jetson Orin Nano module and Jetson Orin NX module

* for reference only, the actual appearance of the Solid State Drive may be different

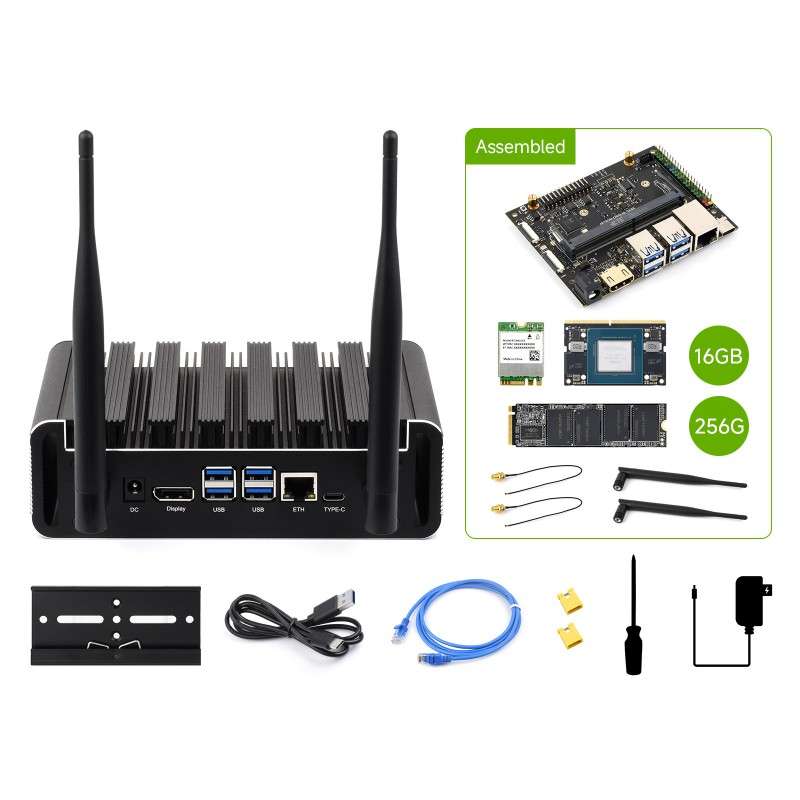

This kit also comes with a pre-installed dual-band wireless network card that supports Bluetooth 5.0 and dual-band Wi-Fi, with two additional PCB antennas, for providing high-speed and reliable wireless network connection and Bluetooth communication.

* for reference only, please refer to the package content for detailed part list

Designed for Jetson Orin NX / Nano with passive cooling

Exquisite manufacturing process, Fitting & Nice Looking

Easy to install to specific scenarios

* for reference only, the DIN Rail is NOT included

Step 1: Install the M2.5×9+4 standoffs at the positions shown below.



Step 2: Apply the included thermal grease evenly to the surface of the Jetson Orin module.



Step 3: Mount the Jetson Orin module onto the heatsink and secure it with the PM2.5×5 screws.



Step 4: Connect the 4PIN cable with the power button to the corresponding connector on the base board. Install the rear panel and secure it with screws.



Step 5: Use the IPEX4 to SMA cable, connect the IPEX4 end to the wireless module, then secure the SMA connector to the front panel.



Step 6: Install the bottom cover and secure it with screws.



Step 7: Install the front cover and secure it with screws.



Step 8: Install the antennas on the SMA connectors to complete the assembly.

* for reference only, please refer to the package content for detailed part list
