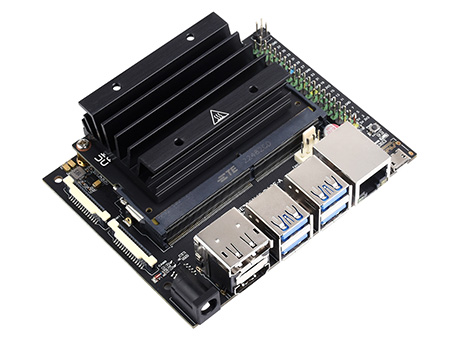

Jetson Nano Development / Expansion Kit, Alternative Solution Of B01 Kit, with Jetson Nano Module (WS-21659)
WS-21659
Jetson Nano Development / Expansion Kit, Alternative Solution Of B01 Kit, with Jetson Nano Module (WS-21659)
Jetson Nano Development / Expansion Kit, Alternative Solution Of B01 Kit, with Jetson Nano Module (WS-21659)
Jetson Nano Development / Expansion Kit, Alternative Solution Of B01 Kit, Optional Jetson Nano Core Module
Jetson Nano Development / Expansion Kit
Compatible With Both Jetson Nano And Jetson Xavier NX
Alternative solution of B01 kit
Based on AI computers Jetson Nano and Jetson Xavier NX, providing almost the same IOs, size and thickness as the Jetson Nano Developer Kit (B01), more convenient for upgrading the core module. By utilizing the power of core module, it is qualified for fields like image classification, object detection, segmentation, speech processing etc. and can be used in sorts of AI projects.
Ordering Options
JETSON-NANO-DEV-KIT-A
The carrier board, along with Jetson Nano module, official heatsink, and more extra free accessories
JETSON-IO-BASE-A
The carrier board ONLY, compatible with both Jetson Nano and Jetson Xavier NX
Extra Free Accessories
For JETSON-NANO-DEV-KIT-A ONLY
AC8265 dual-mode NIC
Cooling fan
USB cable (~1.2m)
5V 4A power adapter
Comparing Specifications With B01
| JETSON-NANO-DEV-KIT-A | Jetson Nano Developer Kit (B01) | |
| GPU | 128-core Maxwell | |
| CPU | Quad-core ARM A57 @ 1.43 GHz | |
| MEMORY | 4 GB 64-bit LPDDR4 25.6 GB/s | |
| STORAGE | micro SD card (NOT included. Recommendation: Micro SD Card 64GB) | |
| VIDEO ENCODER | 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265) | |
| VIDEO DECODER | 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30 (H.264/H.265) | |
| CAMERA | 2x MIPI CSI-2 DPHY lanes | |
| CONNECTIVITY | Gigabit Ethernet | |
| M.2 Key E expansion connector (comes with AC8265 Dual-mode NIC) |
M.2 Key E expansion connector (no NIC) |
|
| DISPLAY | HDMI and DP | |
| USB | 4x USB 3.0, USB 2.0 Micro-B | |
| EXTENSION INTERFACES | GPIO, I2C, I2S, SPI, UART | |
| DIMENSIONS | 100 × 80 × 29mm | |
| OTHER | 260-pin connector | |
Comparing Appearance With B01
Compatible With Expansion Modules And Cases Of The Jetson Nano Developer Kit (B01)
JETSON-NANO-DEV-KIT-A
Jetson Nano Developer Kit (B01)
Compatible With Two Core Modules
The Carrier Board Is Compatible With Jetson Nano And Jetson Xavier NX
Convenient For Hardware Upgrading
Play Around With Binocular Vision
Supports 2-Lanes CSI Camera, Suitable For Binocular Vision Applications Such As Parallax Algorithm Ranging, Facial Recognition, Organism Detection, VR Video Recording...
Dual 4K Outputs
Supports DisplayPort And HDMI High Definition Ports
4x High Speed USB3.0
USB3.0 High Speed Data Transmission, Allows More USB Peripherals
Color-Coded 40PIN GPIO Header
Color-Coded Header Pins With Clear Labels, Handy For Use
Introduction
- Core module socket
- M.2 Key E connector
- PoE pins: PoE module is not included
- 40PIN GPIO header
- Micro USB port: for 5V power input or for USB data transmission
- Gigabit Ethernet port: 10/100/1000Base-T auto-negotiation, supports PoE if external PoE module is connected
- 4x USB 3.0 port
- HDMI output port
- DisplayPort connector
- DC jack: for 5V power input
- 2x MIPI CSI camera connector
Outline Dimensions
Resources & Services
Wiki: JETSON-NANO-DEV-KIT-A
Package Content
- JETSON-IO-BASE-A (carrier board)
- Jetson Nano core module & accessories
- Jetson Nano module
- Official heatsink
- (free) AC8265 dual-mode NIC
- (free) cooling fan
- (free) USB cable (~1.2m)
- (free) 5V 4A power adapter
