DSI 12cm FPC Flexible Cable, Options For 22Pin To 15Pin / Dual-plug 22Pin (WS-32579) Type B

DSI 12cm FPC Flexible Cable, Options for 22Pin To 15Pin / Dual-plug 22Pin

DSI Flexible Cable 12cm

Version Options

DSI-Cable-12cm-A
Type A, straight FPC cable
15pin to 22pin

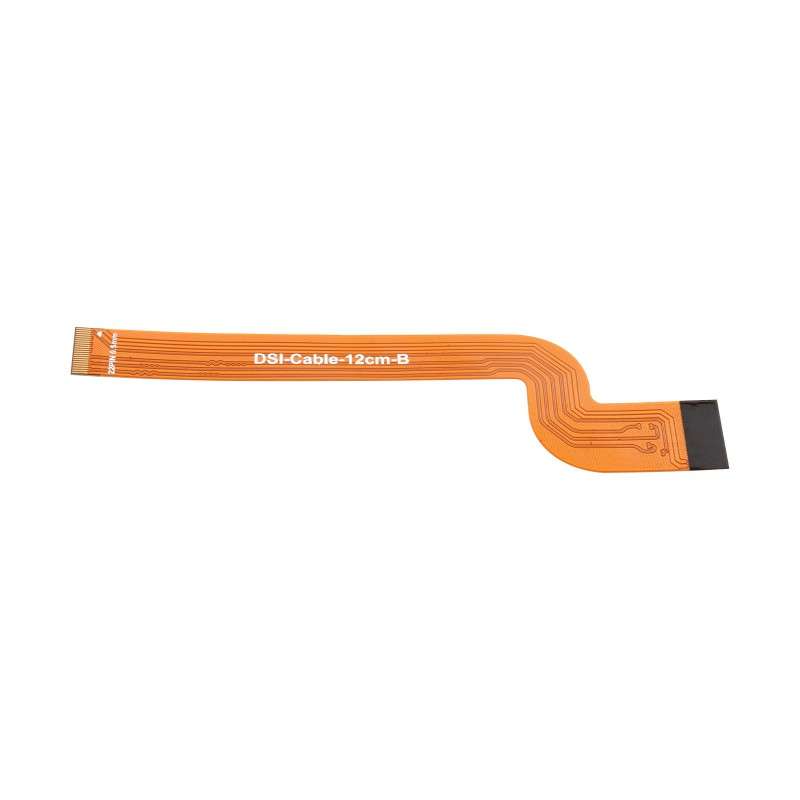

DSI-Cable-12cm-B
Type B, FPC cable with bends
15pin to 22pin



DSI-Cable-12cm-C
Type C, FPC cable with bends
dual-plug 22pin

Specifications

Type A / Type B



Type C



Application examples

Connecting DSI Display To Raspberry Pi 5



* for reference only, please refer to the Package Content for the detailed part list.

Outline dimensions

Balenie Obsahuje / Package Content

DSI-Cable-12cm-B

DSI-Cable-12cm-B x1
